Three-Phase Track Busway ROWs

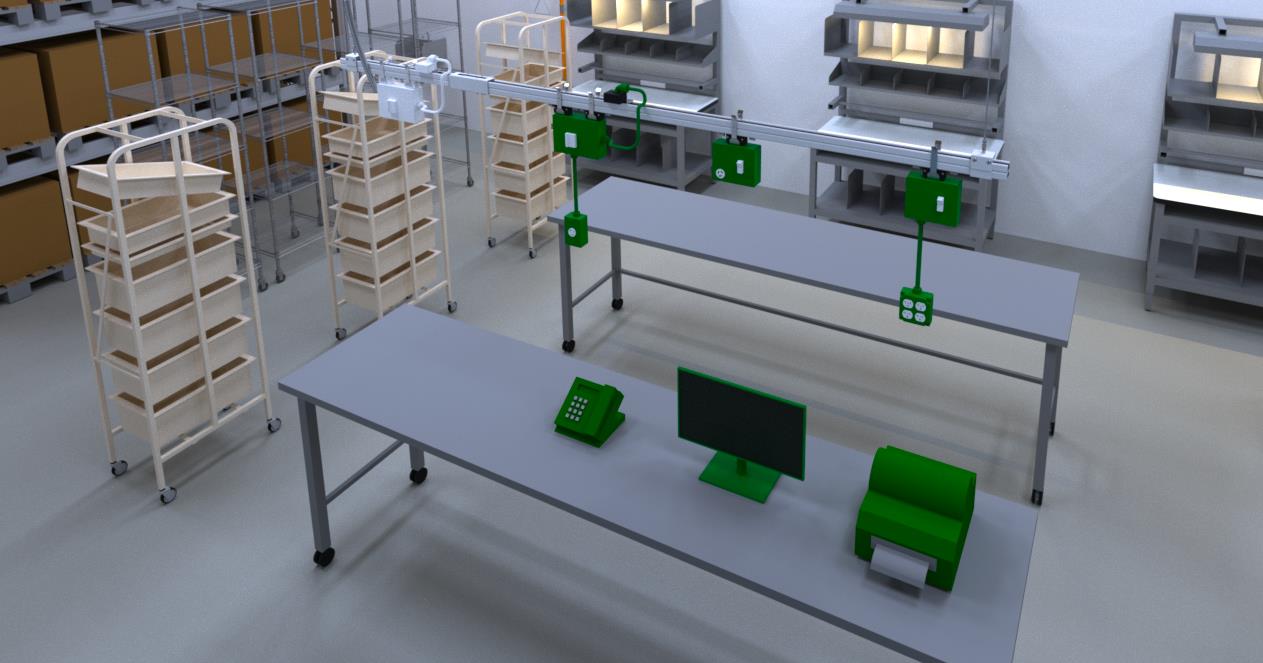

Three-Phase Track Busway ROWs provide overhead power distribution for 208V and 480V applications in industrial environments. These ROWs support higher-capacity loads while maintaining plug-in flexibility for changing equipment layouts.
For additional installation scenarios, configuration examples, and system overviews, visit the Track Busway Video Library →
These units tap two hot conductors to deliver line-to-line power:
-240V from a single-phase panel
-208V from a 120/208V three-phase panel
-480V from a 277/480V three-phase panel
Build a three-phase overhead run using Track Busway lengths designed for balanced power distribution in industrial and high-load environments.
Build a Run of Three-Phase Track Busway
Build a three-phase overhead run using Track Busway lengths designed for balanced power distribution in industrial and high-load environments.
(All components listed below included)
This bundle includes:
-
Line FEEDs - THREE PHASE
(40amps / Galvanized)
-
120V PowerDrop Cord
(Live Ends / Galvanized)
-
208V-1Ph Breakered Outlet Box
(L6-15 Single Twist Lock / Galvanized)
-
(208V) 3-Phase PowerDrop Cord
(Blank Junction Box / Galvanized)
-
Hangers
(Double-Deck / Core / Black)
-
Cables
(15')
-
Three-Phase LENGTHs
(40A / 7' / galvanized)
Line FEEDs - THREE PHASE
(40amps / Galvanized)
120V PowerDrop Cord
(Live Ends / Galvanized)
208V-1Ph Breakered Outlet Box
(L6-15 Single Twist Lock / Galvanized)
(208V) 3-Phase PowerDrop Cord
(Blank Junction Box / Galvanized)
Hangers
(Double-Deck / Core / Black)
Cables
(15')
Three-Phase LENGTHs
(40A / 7' / galvanized)
Downloads – Three-Phase Track Busway
Looking for more technical assets?
Visit our BIM & Design Tools page .
BusBar Configurations
The busbar conductor layout determines the voltages available along the ROW.
Single-phase ROWs use three conductors (L-L-N) for 120V and 208Y systems.
Three-phase ROWs use four conductors (L-L-L-N) for 208/480V distribution.
Three-Phase LENGTHs
TWO-CIRCUIT if Single-Deck.
FOUR-CIRCUIT if Double-Decked.
USA TrackBusway® lengths feature insulated copper bus bars within a durable, U-shaped steel housing. A continuous open slot allows plug-in units to be installed anywhere along the track—providing flexible, efficient power distribution for dynamic layouts.
Looking for more technical assets?
Visit our BIM & Design Tools page .
Three-Phase Tap-Off Wiring Diagram
Compatible with 120 V, 208 V, or 480 V Power
- Supports three-phase, four-wire configurations with line-to-line voltages up to 480 V.
- Ideal for powering equipment in warehouses, assembly lines, and production areas.
- Plug-in tap-offs can be repositioned without re-wiring or permitting.
- Optional isolated-ground tap-offs available for sensitive loads.
