40A Track Busway system
Three-Phase Track Busway Breakered Line Feed
Specifications
| Phase | Three-Phase |
|---|---|
| Voltage | 208V / 480V |
| Amperage | 20A / 40A |
| Pole Count | 3 phase poles (A + B + C) + neutral |

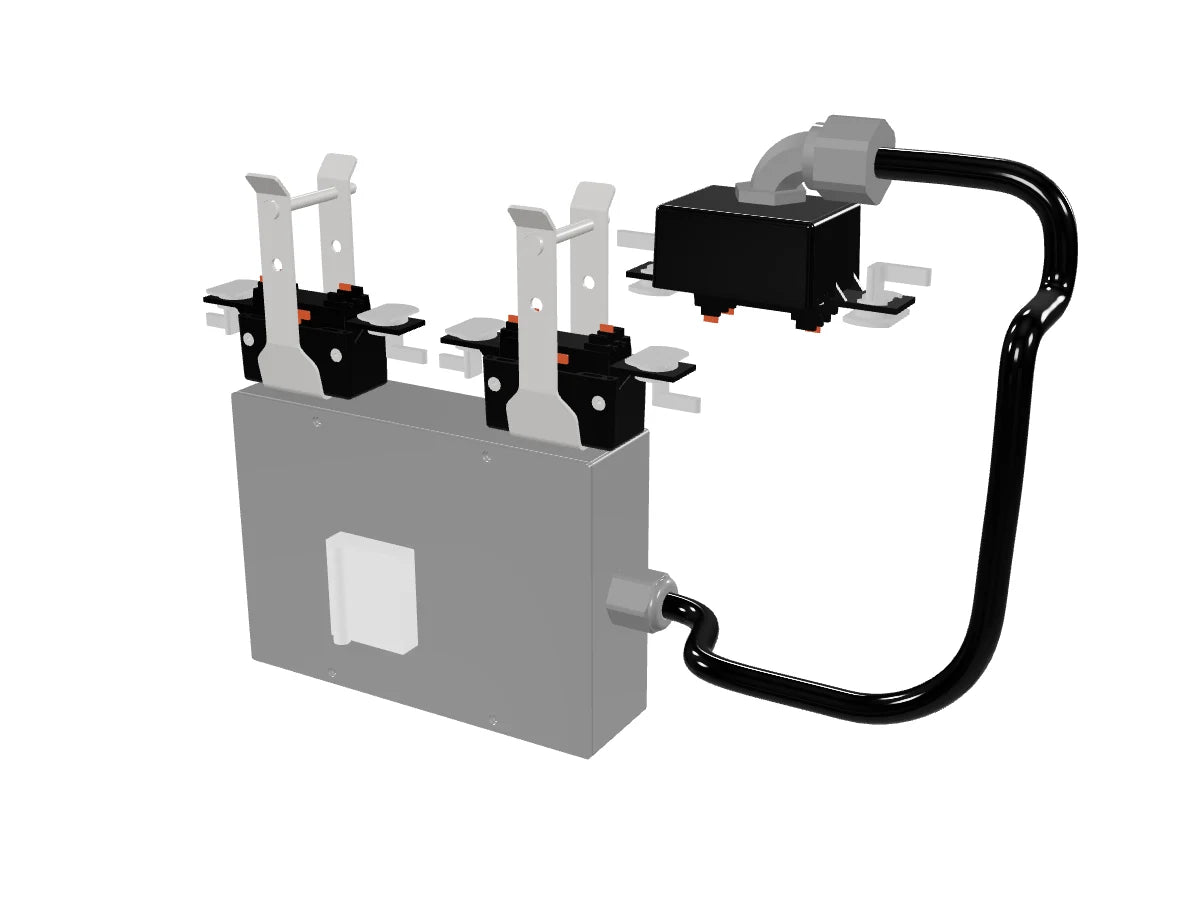

Interactive 3D Preview
Drag or use arrow keys to rotate. Scroll or pinch to zoom.

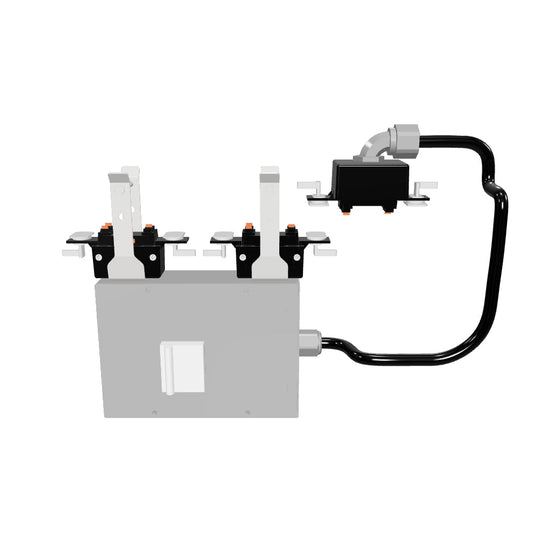

This 40A three-phase breakered line feed supplies a compatible double-deck USA TrackBusway run with up to 40A per phase. A and B connect on the lower deck with neutral; the included whip and fitter supply C on the upper deck.
A factory-installed three-pole circuit breaker provides local control. Choose a galvanized, black or white finish. The wiring example below shows a 208Y/120V supply.
Catalogue #: P40-4-120-UNIV-CB40-G
ETL Listed to UL 857 Busway Standards
For 40A Track Busway system models and configurations covered by the listing.
Couldn't load pickup availability
Technical Downloads
Three-Phase Track Busway Breakered Line Feed Wiring

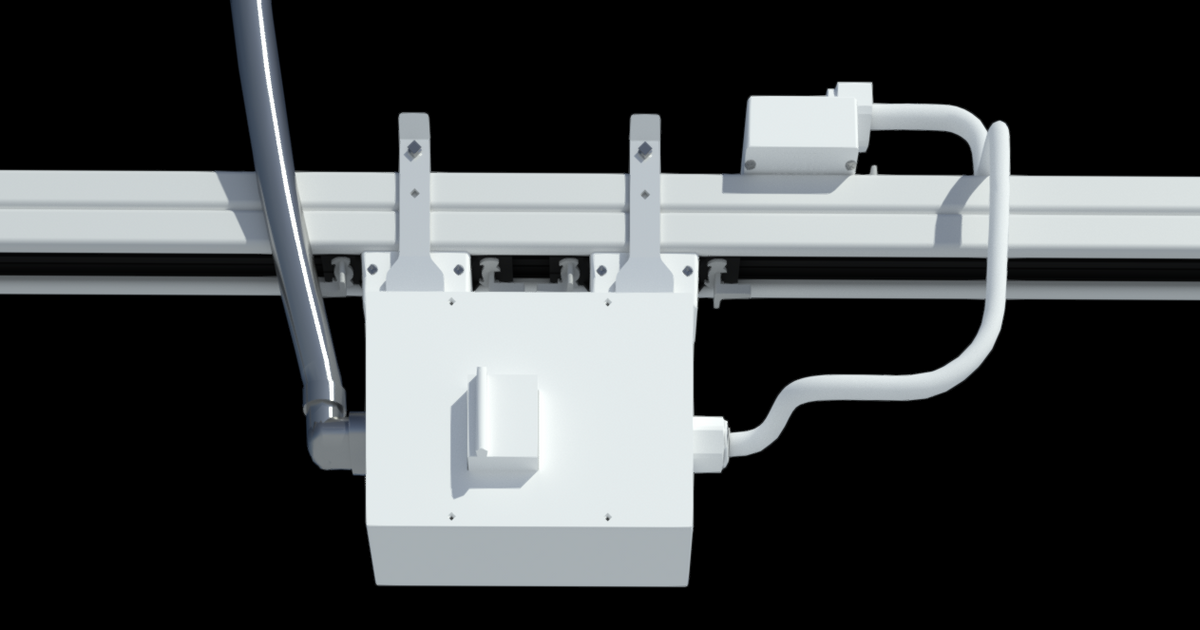

Three-Phase Feed: A and B Below, C Above
The feed supplies A (black), B (red) and neutral (gray) on the lower deck. The whip connects C (blue) to the upper deck; its other two positions are unused. The 208Y/120V example shows 208V between phases and 120V from any phase to neutral.
Part of the 40A Track Busway System
This breakered line feed connects the facility supply to a compatible 40A Track Busway run. Build the supply path with 40A track busway lengths and the appropriate power feed.
Match the feed's breaker rating and the busway configuration to the facility supply. Connect compatible power drops and outlet boxes along the run. Use the Track Busway system design guide to plan the complete layout.
Simplify Overhead Power
Track Busway transforms open ceiling spaces with an innovative system that eliminates traditional overhead power structures, simplifying installations while maximizing flexibility.
Pre-Wired Power Infrastructure: Deliver branch-circuit power exactly where it’s needed using pre-wired Track Busway lengths. Power drops can be added, moved, or reconfigured without rewiring to support evolving layouts.
Plug-and-Play Power Access: Tool-free, plug-in power taps with multiple receptacle options provide fast, reliable access to overhead power while maintaining code-compliant distribution.
Overhead Power DistributionExplore Applications & Projects Track Busway is a scalable, adaptable overhead power distribution solution designed to support changing equipment layouts and long-term system growth.
