40A Track Busway system
T40 120V Power Drop Cord
Specifications
| Phase | Single-Phase |
|---|---|
| Voltage | 120 |
| Amperage | 15A / 20A / 30A |
| Pole Count | 1 |
| NEMA | 5-20R, L5-15, L5-20, L5-30 |

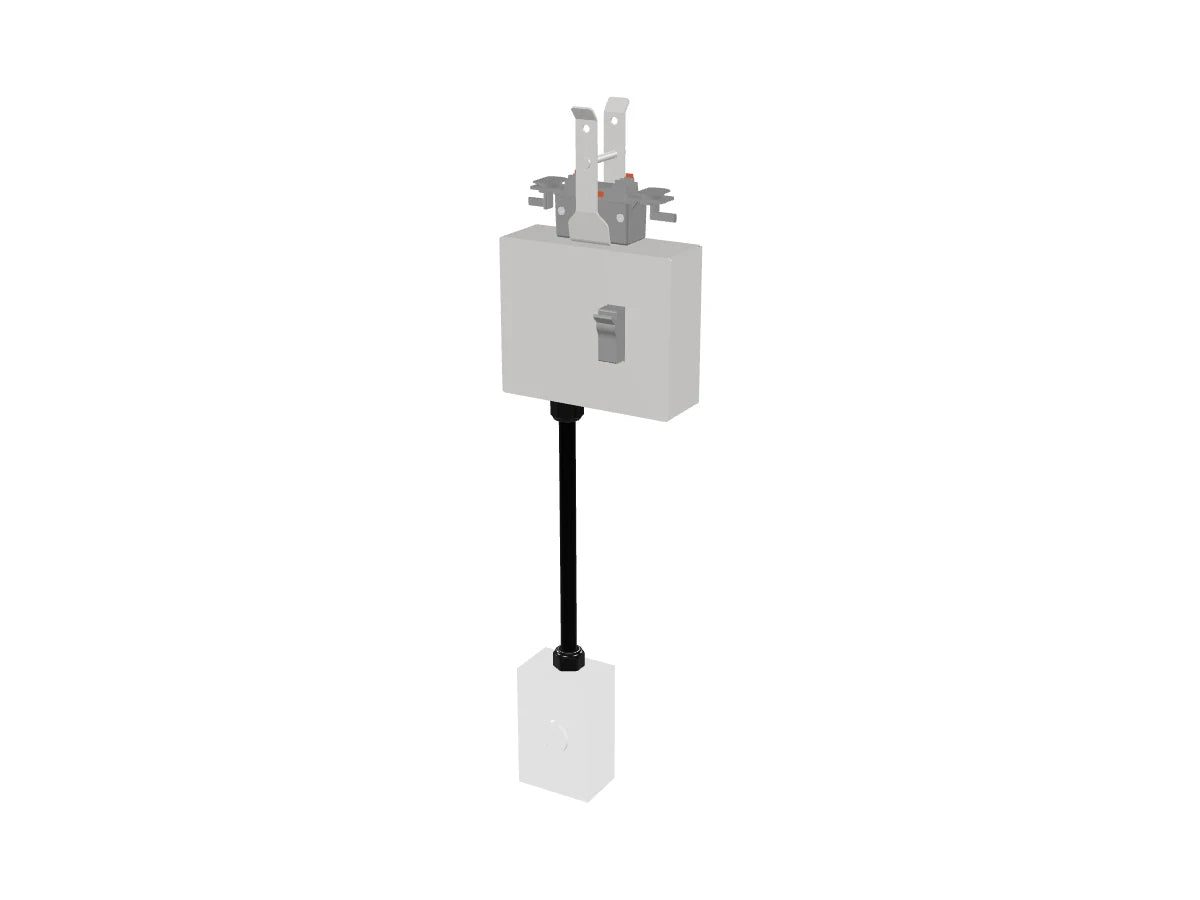

Interactive 3D Preview
Changing the preview does not change your product selection.
Drag or use arrow keys to rotate. Scroll or pinch to zoom.

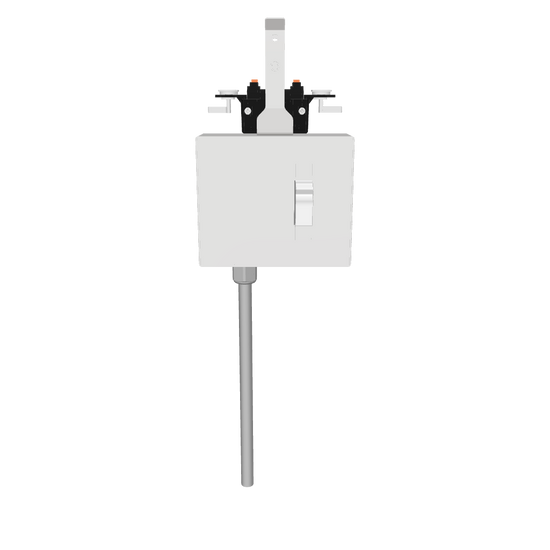

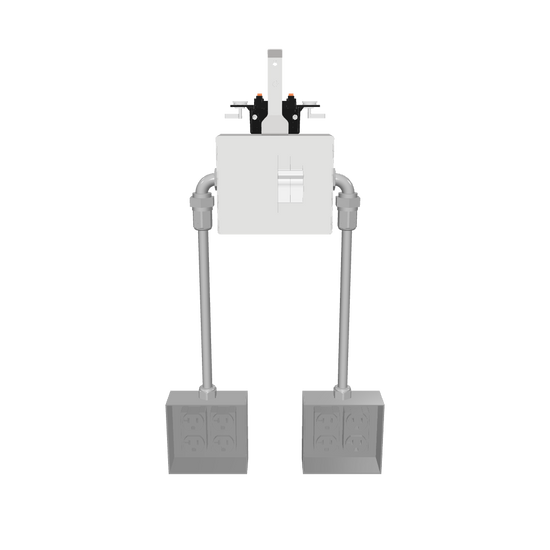

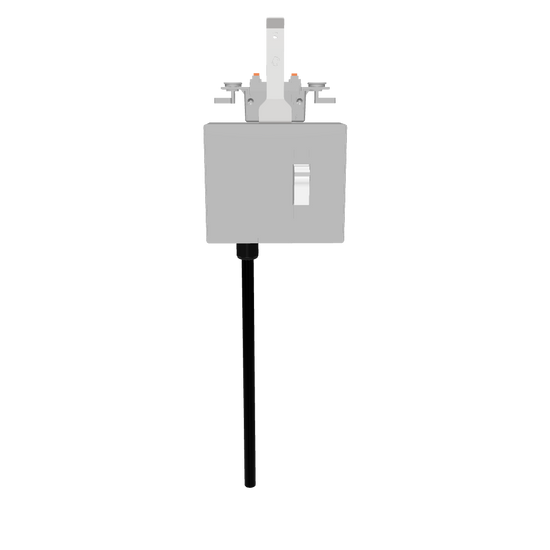

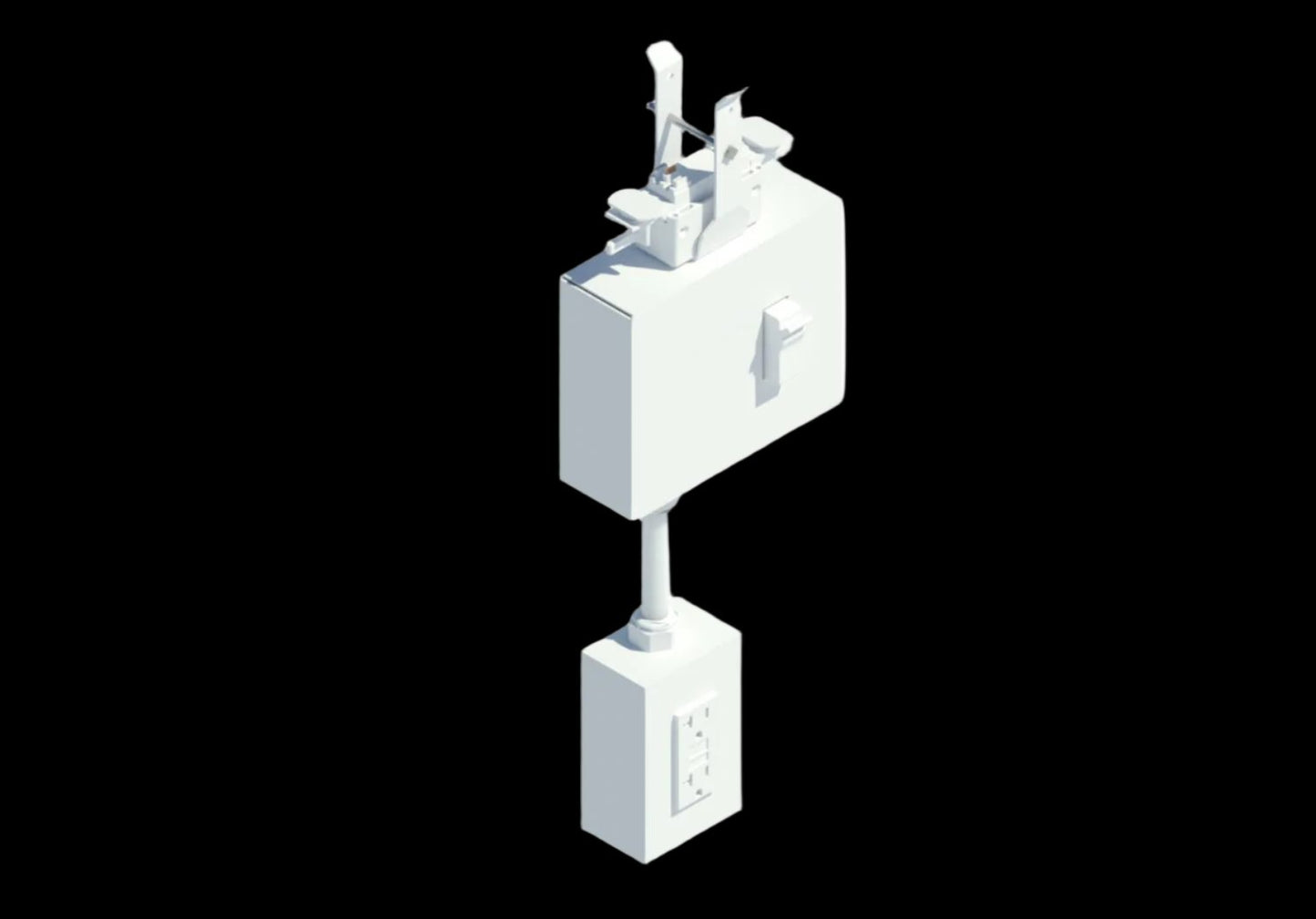

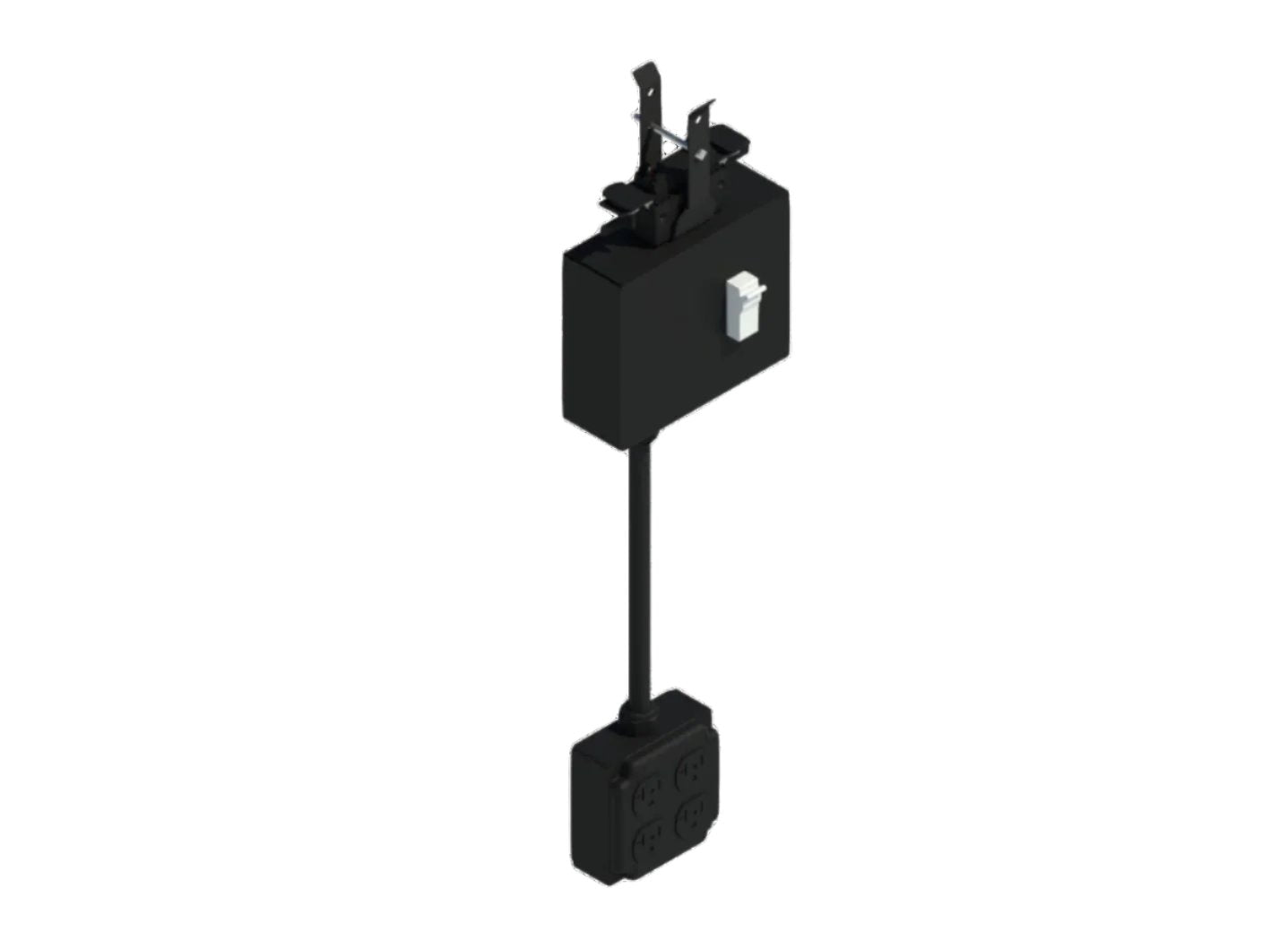

The 120V PowerDrop Cord delivers overhead power from a compatible 40A USA TrackBusway system to equipment below the run. This 1-pole breakered drop connects one phase and neutral.

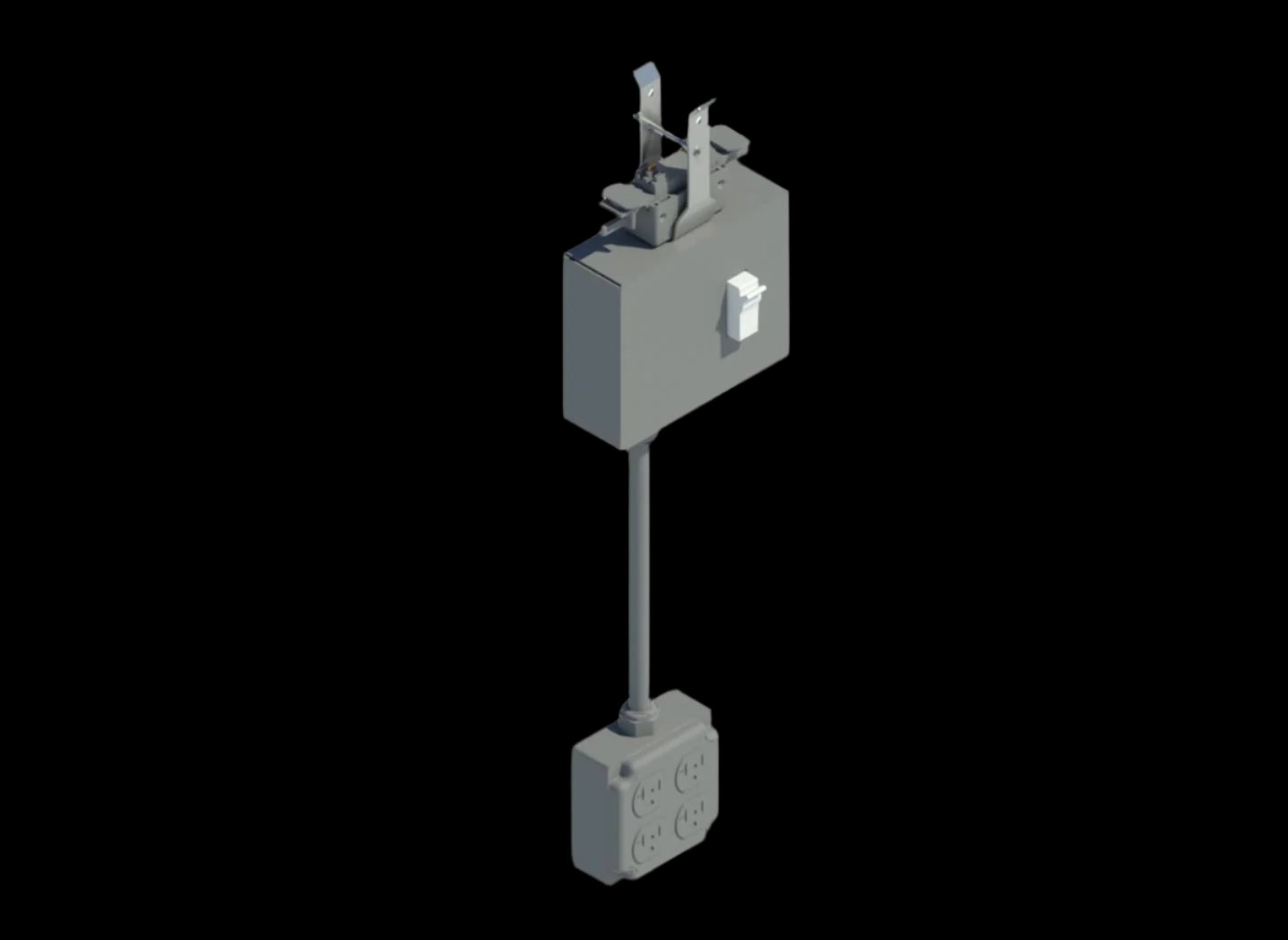

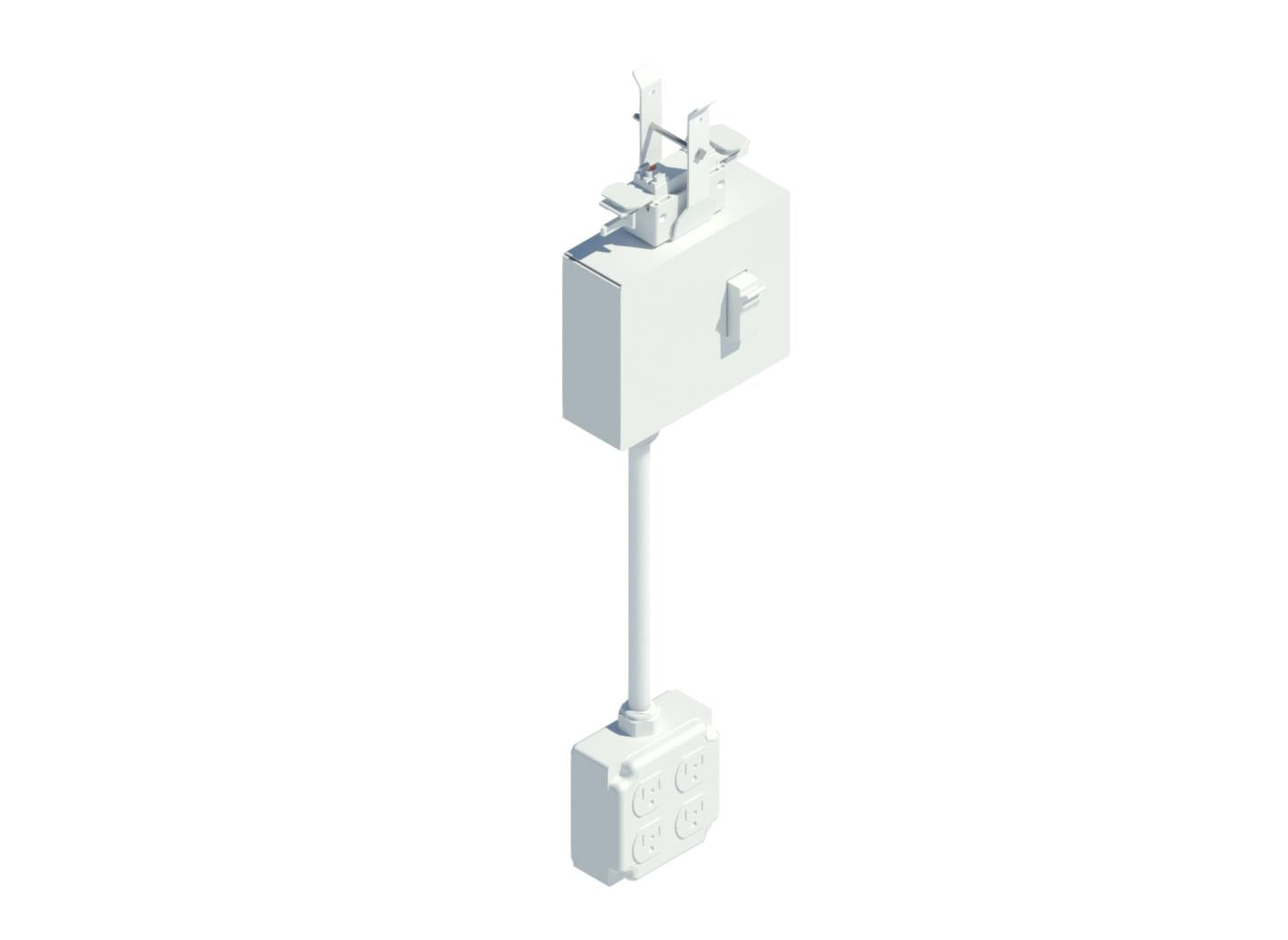

Choose a straight-blade or twist-lock configuration, then select the phase connection and a galvanized, black or white finish. The displayed price and SKU reflect your selection.
Catalogue #: MD40-2-120-CB15-DC-XX-SB-G
Build your tap-off
Choose each option below to confirm your tap-off and price, then review the downloads and specifications for your build.
Couldn't load pickup availability
Your build: downloads
Product family cut sheets and Revit resources. Check that the document or model covers your selected configuration.
ETL Listed to UL 857 Busway Standards
For 40A Track Busway system models and configurations covered by the listing.
See T40 120V Power Drop Cord in Action
Choosing your phase connection
A or B - Standard: Use a single-deck system or either lower-deck phase on a double-deck system.
C - Whip: Reach upper-deck C with the included whip.
Both supply 120V from one phase and neutral. Whip-version SKUs end in -WP.
Compare the wiring diagrams below ↓T40 120V Power Drop Cord Wiring Diagrams

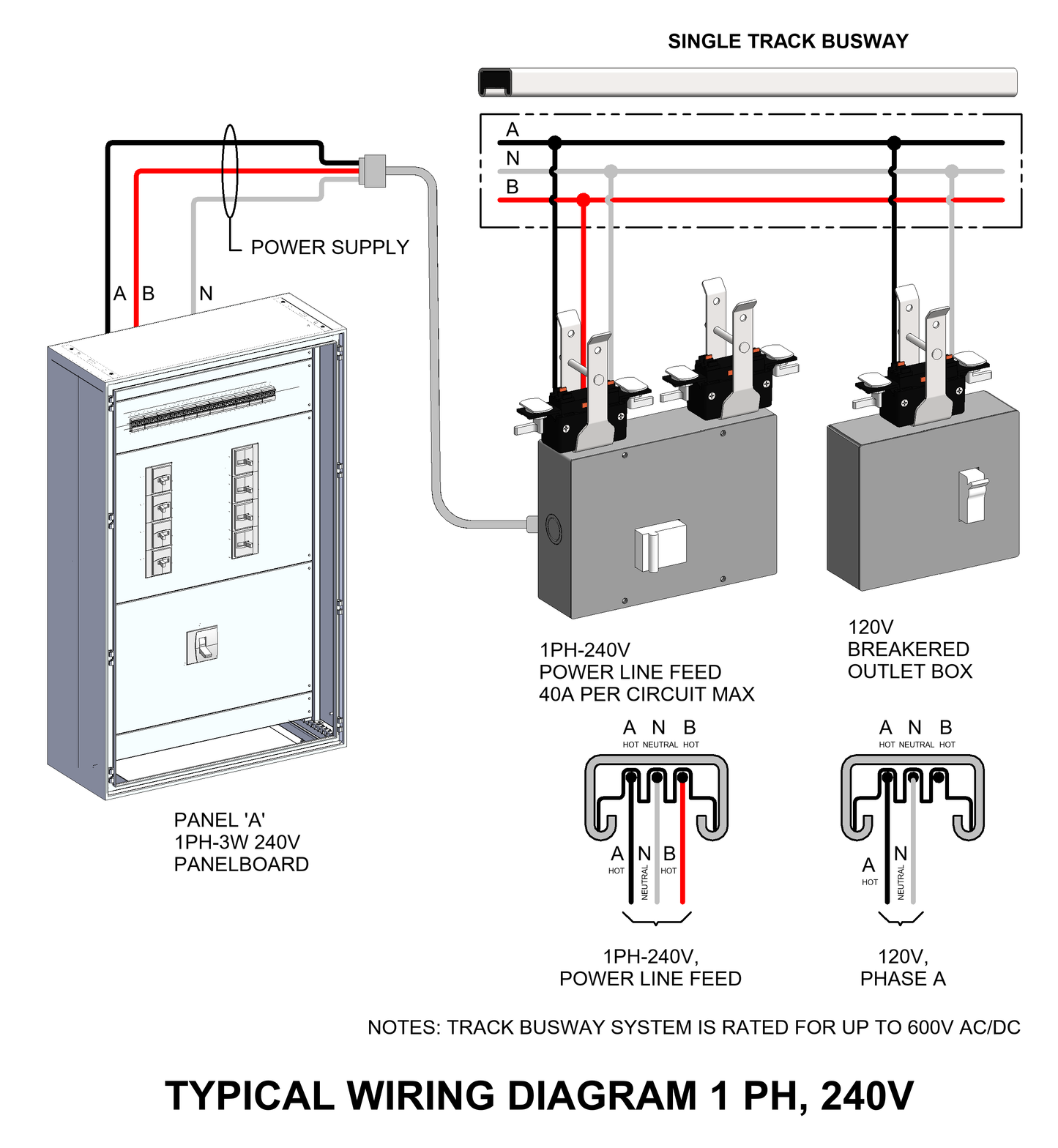

Standard Wiring: A or B Selectable PowerDrop

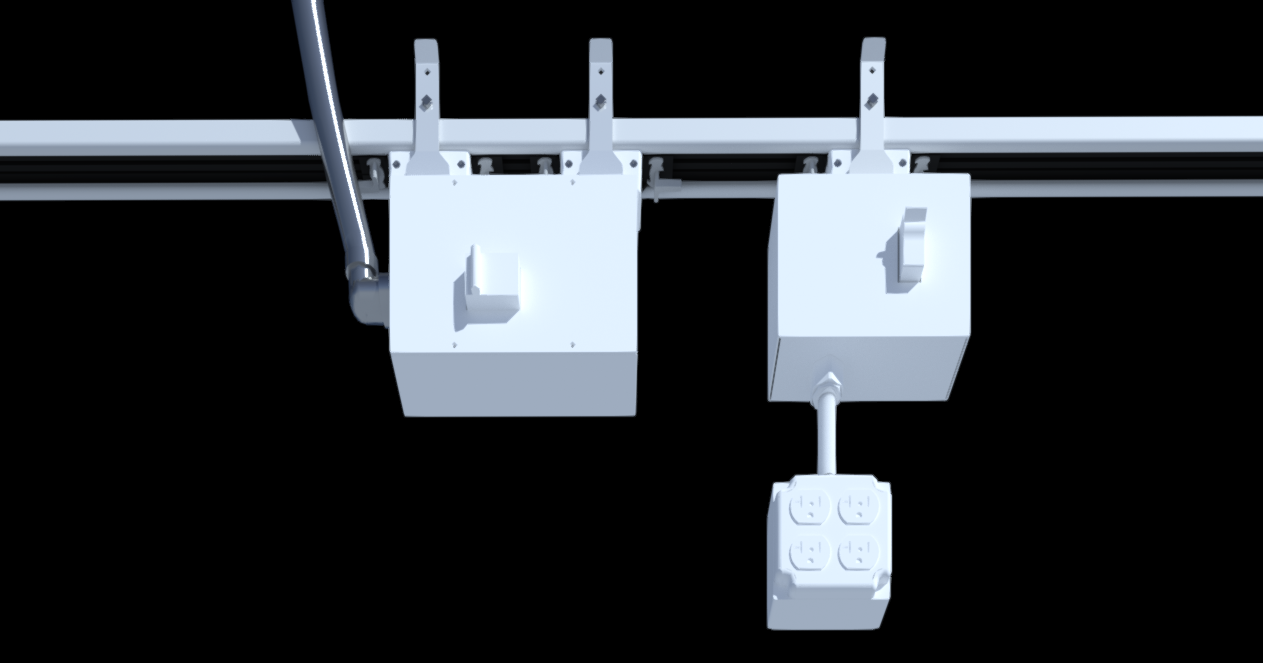

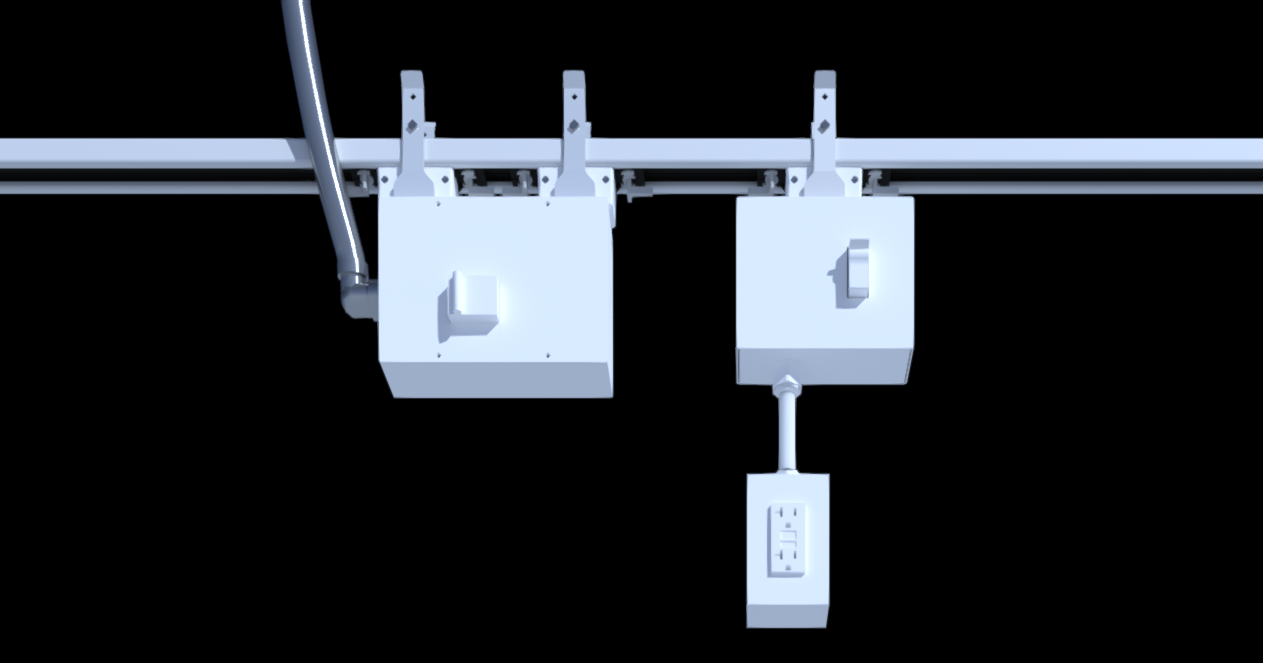

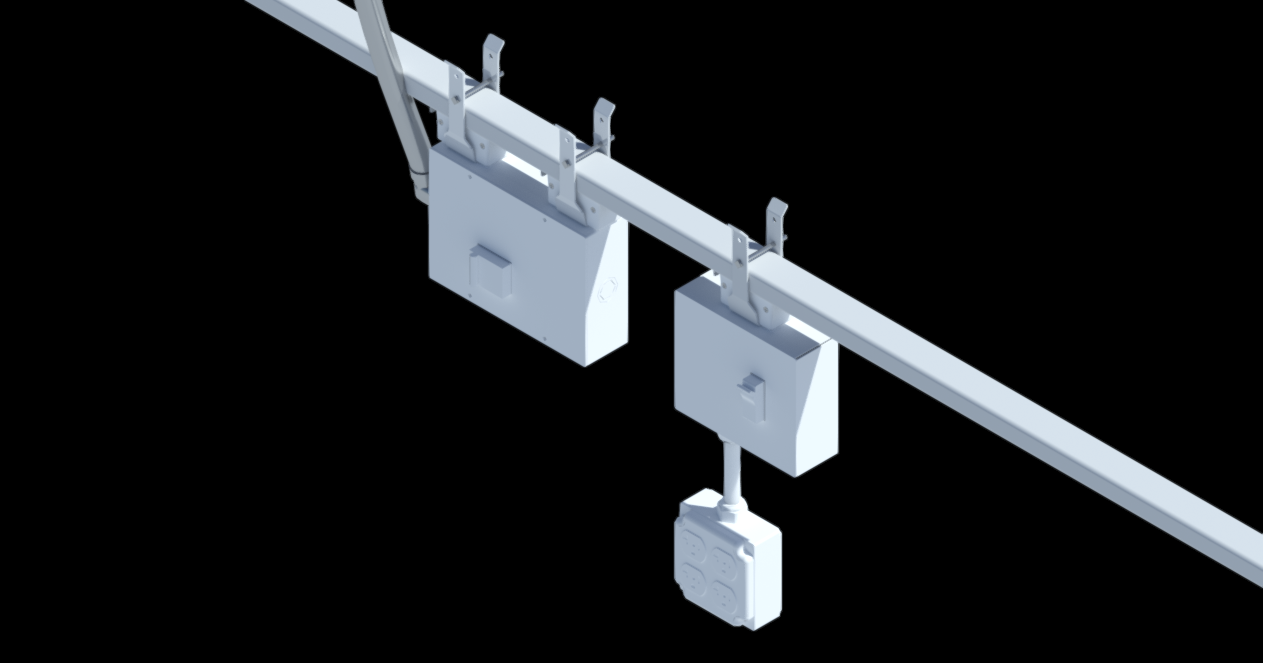

The standard 120V PowerDrop connects to phase A or B and neutral; the diagram shows the A connection on a single-deck 120/240V system. On double-deck three-phase 40A Track Busway, A and B are on the lower deck and require no whip.
Double-Deck Wiring: C Phase with Whip
Select C - Whip for this double-deck configuration. The included whip reaches upper-deck C while neutral is taken from the lower deck. Phases A and B remain on the lower deck for standard units. The selected C-phase SKU ends in -WP.
Part of the 40A Track Busway System

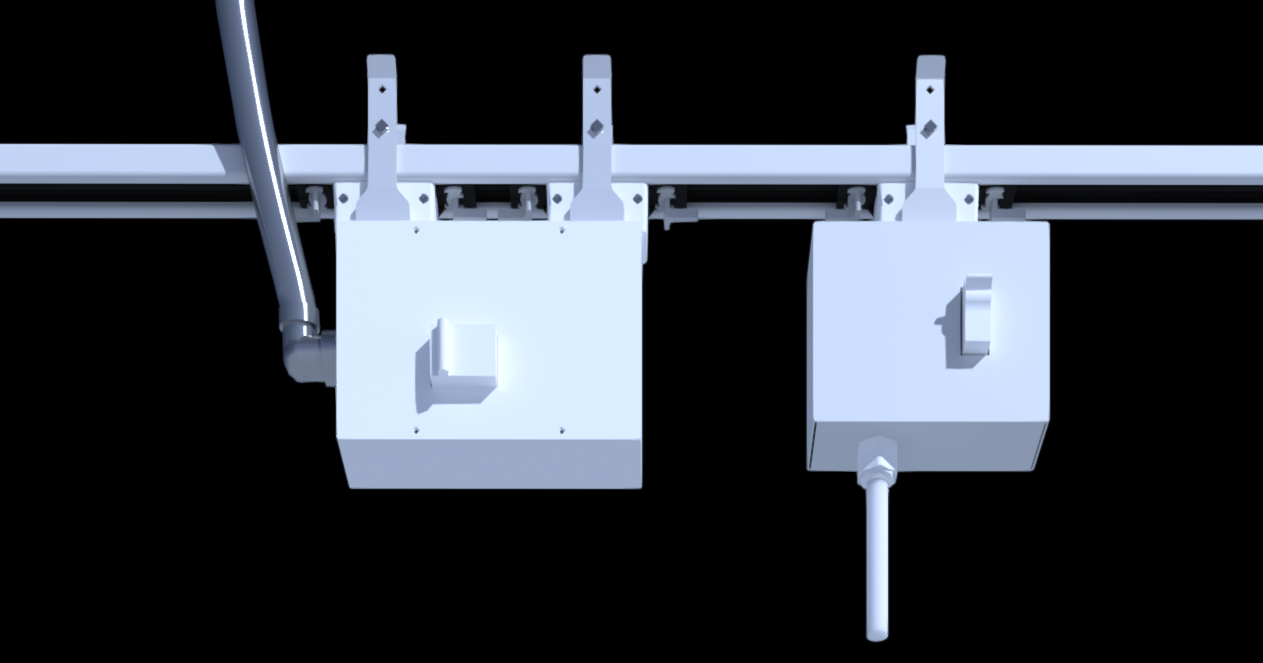

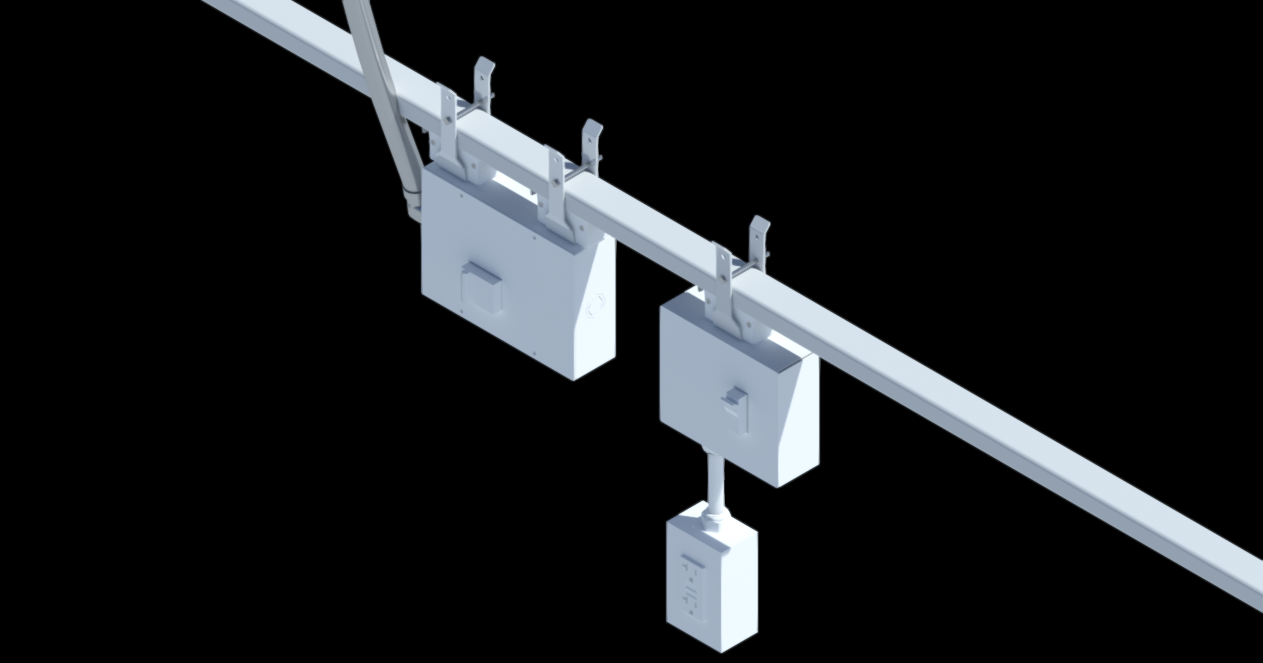

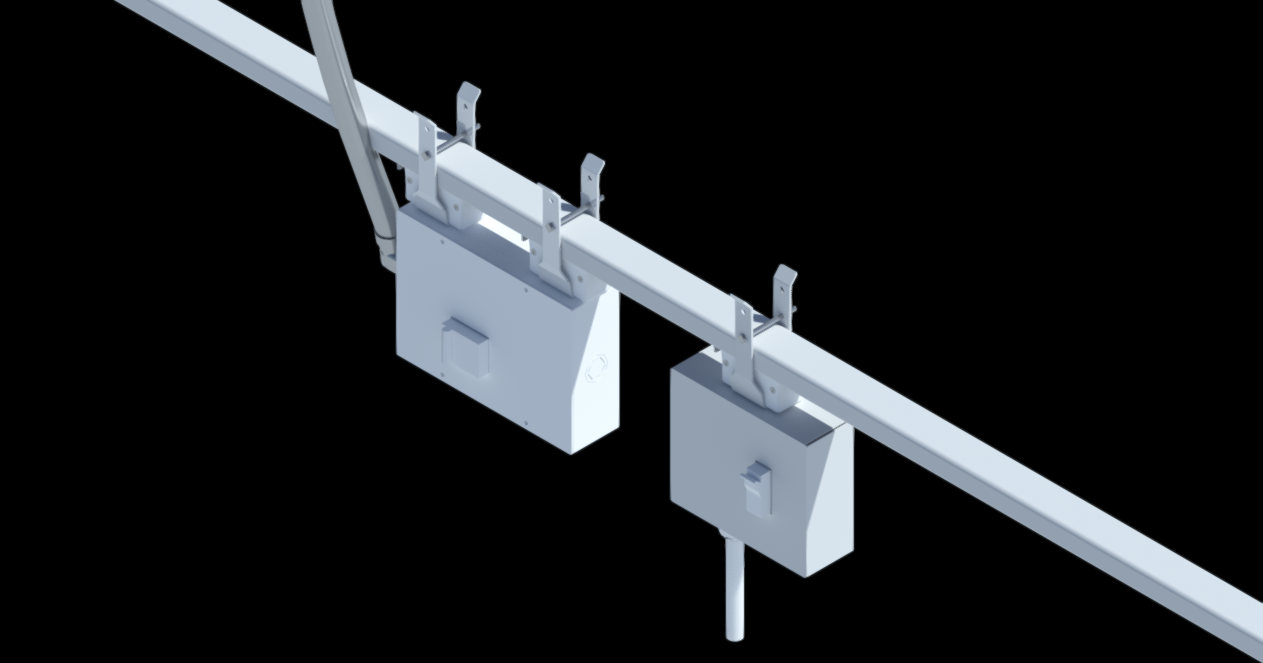

This breakered PowerDrop connects a compatible 40A Track Busway run to equipment below through a flexible cord. Build the supply path with 40A track busway lengths and the appropriate power feed.
Match the selected tap's voltage, phase connection and breaker rating to the supply and equipment. Use the Track Busway system design guide to plan the complete layout.
Simplify Overhead Power
Track Busway transforms open ceiling spaces with an innovative system that eliminates traditional overhead power structures, simplifying installations while maximizing flexibility.
Pre-Wired Power Infrastructure: Deliver branch-circuit power exactly where it’s needed using pre-wired Track Busway lengths. Power drops can be added, moved, or reconfigured without rewiring to support evolving layouts.
Plug-and-Play Power Access: Tool-free, plug-in power taps with multiple receptacle options provide fast, reliable access to overhead power while maintaining code-compliant distribution.
Overhead Power DistributionExplore Applications & Projects Track Busway is a scalable, adaptable overhead power distribution solution designed to support changing equipment layouts and long-term system growth.
