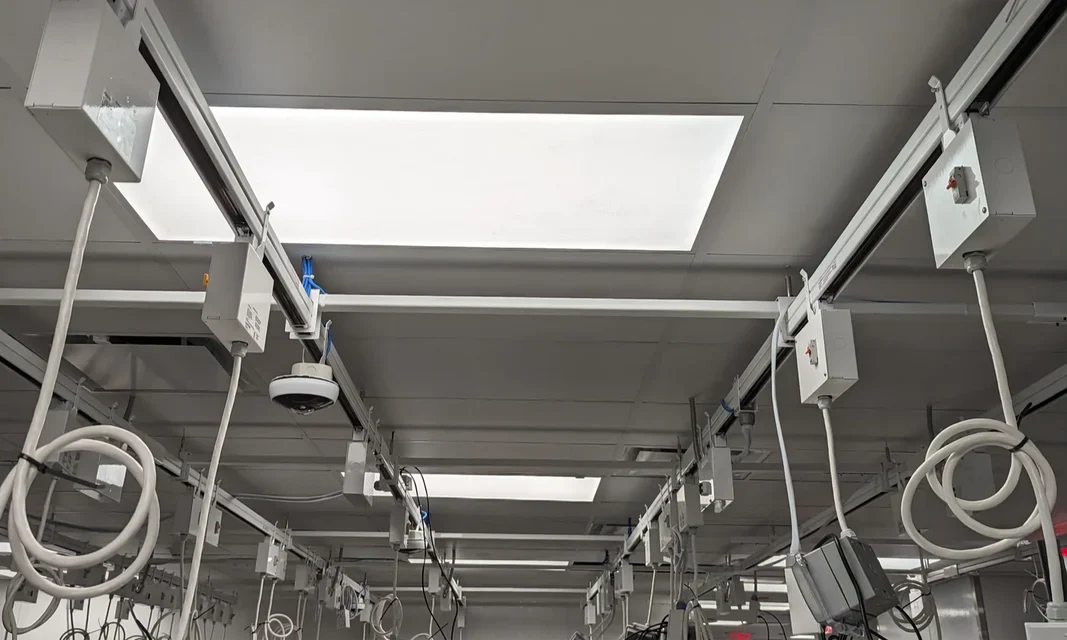

Tap Power on Either Circuit

FLIP-FITTING CIRCUITRY

120V 1Ph-208V 1Ph-240V 3Ph-4W 208V
120v-voltage-options-3figl-x9onm

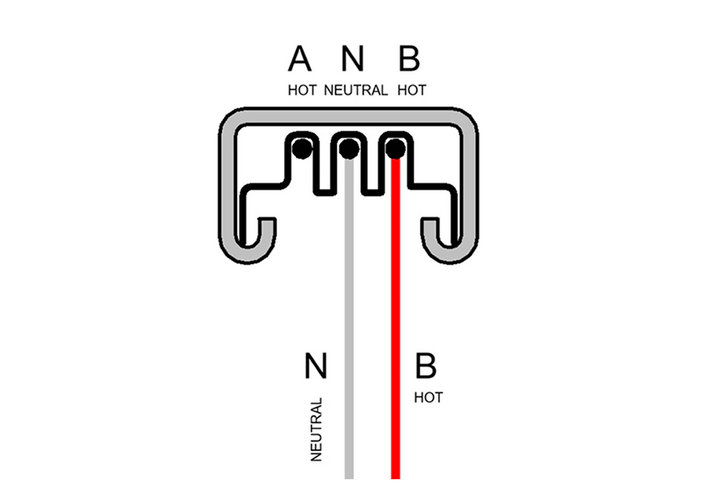

120V Busway Fittings allow for either circuit, A or B, to be tapped. No keyed fittings required. Phase select by simply rotating the fitting in-the-field.

120V Track Busway - Wiring Diagram

120V_Wiring_Diagram_Excerpted_dc0df7c1-5b3c-4521-84f6-7b82ec572410
208Y Busway Fittings enable 120V power to supply 240V by utilizing both hot legs in a Steel Track Busway system.

208Y Track Busway - Wiring Diagram

208Y_Wiring_Diagram_f1b9b2d5-731f-4e47-947f-bd4cfb4268ca

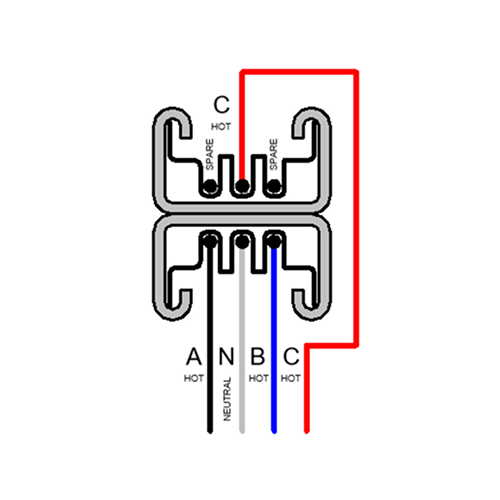

Three Phase Double-deck steel track busway includes (2) phases on the bottom and (1) on the top.

208V Track Busway - Wiring Diagram

208V_Wiring_Diagram_428d90c0-fc9e-4aa4-8b0f-3300cd4845eb

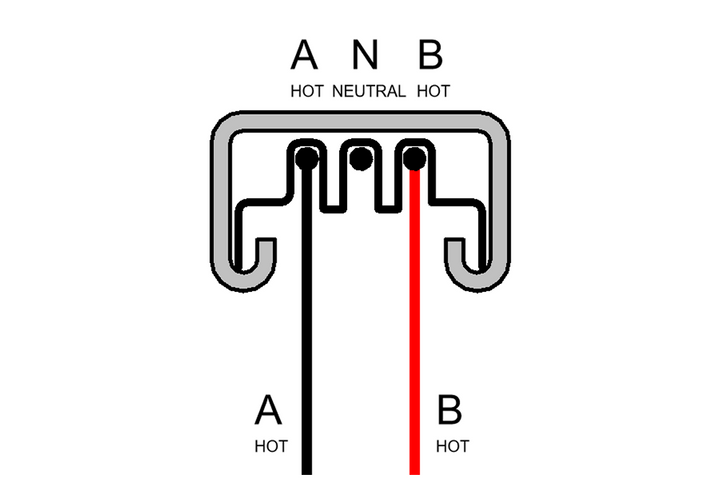

240V Busway Fittings enable 120V power to supply 240V by utilizing both hot legs in a Steel Track Busway system.

240V Track Busway - Wiring Diagram

240V_wiring_diagram__1
