 Single-Phase Track Busway ROWs

Single-Phase Track Busway ROWs deliver up to two 20A circuits for 120V overhead power distribution. This configuration is commonly used for lighting, receptacles, and general-purpose power in light industrial and commercial environments.

Looking for visual examples of how Track Busway components are installed and used in active spaces? Browse our complete set of installation and product videos in the Track Busway Video Library →

Single-Phase Power Configuration

Delivering 120V power on demand, each 1-pole plug-in unit connects to a single hot conductor and the neutral.

Designed for simplicity, these units are quick to install, easy to reposition, and ideal for flexible branch-circuit access from overhead.

Thanks to our field-selectable phasing at the busway fitting, contractors can choose the most appropriate circuit during installation—no rewiring required.

More Information On Plug-In Power

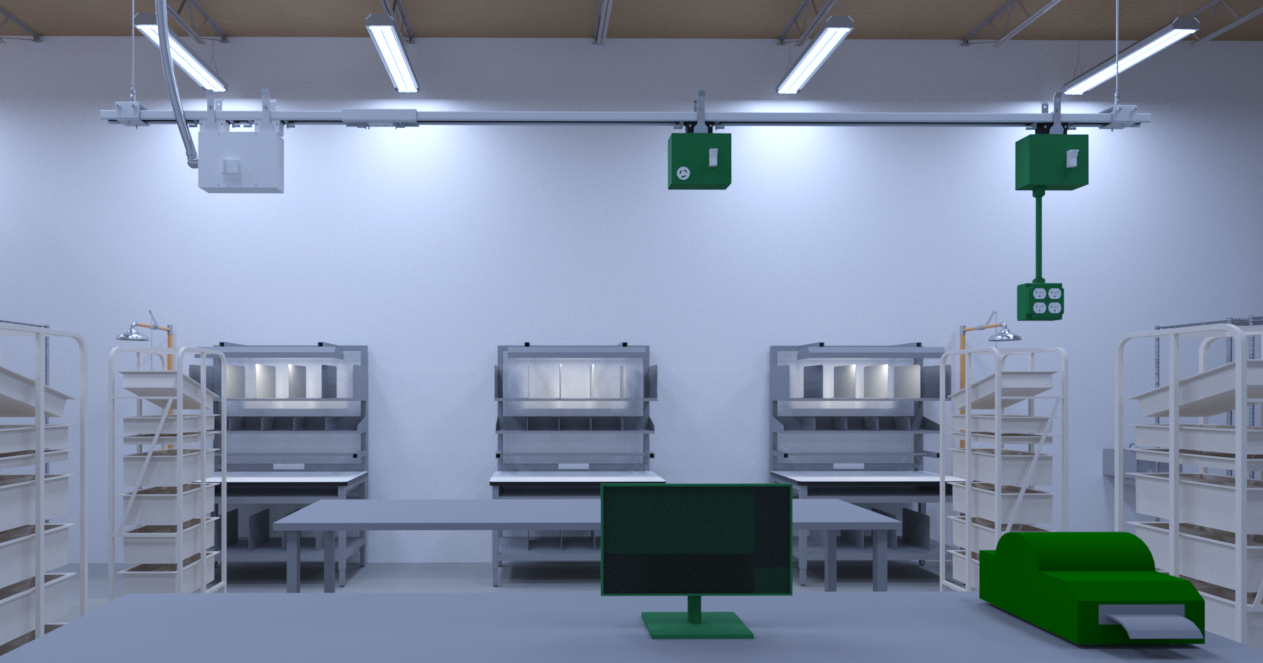

Single-Phase ROW (up to 2-circuits)

Deliver 120 V or single-phase 208 V from a 3-wire Track Busway—no conduit, no downtime.

  • Fast install with no specialized tools required
  • Move power taps in minutes
  • Two hot lines + shared neutral
Request a Quote
Single-Phase ROW (up to 2-circuits)
Single-Phase ROW (up to 2-circuits)

Deliver 120 V or single-phase 208 V from a 3-wire Track Busway—no conduit, no downtime.

  • Fast install with no specialized tools required
  • Move power taps in minutes
  • Two hot lines + shared neutral
Request a Quote
Build a Run of Single-Phase Track Busway

Build a single-phase overhead run by suspending Track Busway lengths and joining sections to create a continuous open-slot power path supporting up to two circuits.

Build a Run of Single-Phase Track Busway

Build a single-phase overhead run by suspending Track Busway lengths and joining sections to create a continuous open-slot power path supporting up to two circuits.

Full Run
Length Detail

HANGER

Suspends single-phase busway sections securely while allowing precise positioning over work areas.
Joiner Detail

JOINER KIT

Joins adjacent busway lengths to maintain electrical continuity across the run.
Hanger Detail

LENGTH

Pre-wired single-phase busway sections that carry power along the run and accept plug-in PowerDrops anywhere needed.
Single-Phase
.
  • Track Busway 1-phase row with tap box and plug-in power connections
1 1
Single-Phase

Included plug-ins (click to view):

USA TrackBusway

Ships from Ohio in 7 to 10 working days

Our single-phase Track Busway includes two hot conductors and a neutral, allowing for one system to power both:

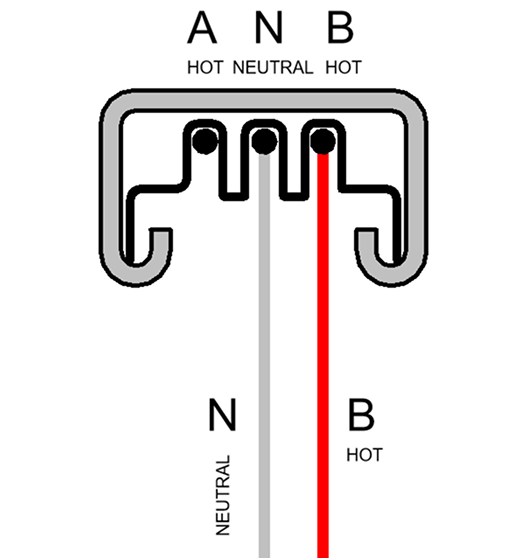

1-Pole (Line to Neutral)
1-Pole (Line to Neutral)

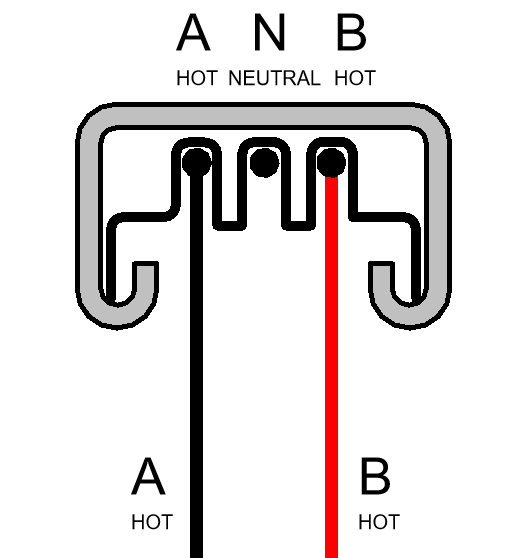

2-Pole (Line to Line)
2-Pole (Line to Line)

Downloads – Single-Phase

Looking for more technical assets?
Visit our BIM & Design Tools page .

FEEDs
1
Single-phase Track Busway with feed unit and flex conduit connection for overhead power supply
Line FEEDs
Line FEEDs

Plug-in feed unit with 2-pole breaker to supply 1-phase electrical service anywhere along the run of track busway.

$315.21 USD
From $315.21 USD

Ships from Ohio in 7 to 10 working days

View Product
PLUG-INs
2
120V PowerDrop Cord
120V PowerDrop Cord
120V PowerDrop Cord

Single-pole corded tap-off supplies convenient 120-volt power from busway.

$432.25 USD
$432.25 USD From $432.25 USD

Ships from Ohio in 7 to 10 working days

View Product
3
120V Breakered Outlet Box
120V Breakered Outlet Box
120V Breakered Outlet Box

Single-pole breaker enclosure with receptacle delivers 120-volt of protected power from track busway to your equipment.

$405.65 USD
From $405.65 USD

Ships from Ohio in 7 to 10 working days

View Product
RUNs
4
Open-slot Track Busway cross-section showing insulated copper busbars inside a steel channel.
Single-Phase LENGTHs
Single-Phase LENGTHs

Busway length with continuous open slot for plug-in power and/or lighting units.

$29.50 USD
From $29.50 USD

Ships from Ohio in 7 to 10 working days

View Product
5
hanger_industrial.effectsResult
Hangers
Hangers

Steel hanger slides onto busway length for up to 10' between supports.

$12.24 USD
From $12.24 USD

Ships from Ohio in 7 to 10 working days

View Product
6
CG-E-15-GP_240c8c8c-4349-4ba0-88a9-5445adcf6d9c
Cables
Cables

Suspension cable kit with glide and eye-bolt for secure, height-adjustable support.

$24.61 USD
$24.61 USD From $24.61 USD

Ships from Ohio in 7 to 10 working days

View Product
USA TrackBusway logo

BusBar Configurations

The busbar conductor layout determines the voltages available along the ROW.
Single-phase ROWs use three conductors (L-L-N) for 120V and 208Y systems.
Three-phase ROWs use four conductors (L-L-L-N) for 208/480V distribution.

Single-Phase

Three-Phase

Single Deck
Double-Deck
3-pole Track Busway with 2 hot and 1 neutral for single-phase power distribution

1x3-Pole

2 hot conductors and 1 neutral
Cable tray with integrated 3-conductor power busway on lower deck

CableTray+Power

Mechanical support tray with 2 hot conductors and 1 neutral below
4-Circuit Busway cross section

2x3-Pole

Two sets of 2 hot conductors and 1 neutral
4-pole Track Busway with 3 hot, 1 neutral for three-phase power with isolated ground option

1x4-Pole

3 hot conductors and 1 neutral (available with isolated ground)
Single-Deck
Single-Phase
Double Deck
Three-Phase
  • Open-slot Track Busway cross-section showing insulated copper busbars inside a steel channel.
  • Cutaway view of Track Busway showing insulated copper busbars inside an open-slot housing
  • Busway electrical system with copper conductors in finger-safe insulation and enclosed steel track housing
  • straight on view of white track busway length
1 4
side view of 3-phase galvanized track busway section

3-Phase Lengths
Track Busway with suspended LED lighting and security cameras in retail open ceiling installation

Common Voltage Options met with Track Busway
USA TrackBusway

Single-Phase LENGTHs

Ships from Ohio in 7 to 10 Working Days

TWO-CIRCUIT if Single-Deck.

FOUR-CIRCUIT if Double-Decked.

$29.50 USD
$82.58 USD
Sale Sold out
Amperage
Single-Deck Length
Color

Ships from Ohio in 7 to 10 working days

USA TrackBusway™ lengths feature insulated copper bus bars within a durable, U-shaped steel housing. A continuous open slot allows plug-in units to be installed anywhere along the track—providing flexible, efficient power distribution for dynamic layouts.

Downloads – Single-Phase LENGTHs

Looking for more technical assets?
Visit our BIM & Design Tools page .

joiner.effectsResult

JOINERs

JOINERs for extending ROW / COLUMN

Securely connect abutting USA TrackBusway™ sections with our durable joiners, ensuring structural integrity; and separately joiner inserts for seamless power distribution.
hanger_industrial.effectsResult

HANGERs

Listed for up to 10' between supports

These hangers slide into position along the track, making it easy to suspend the system with precise support point placement. Designed for flexibility, they support spans up to 10 feet and simplify installation.

Power That Moves With You

Deliver flexible 120 V or single-phase 208 V to labs, R&D bays, or light-industrial cells. A single-deck Track Busway means no rigid conduit: layouts change fast, equipment is added without shutdowns, and future upgrades stay plug-and-play.

  • Adaptable: slide or add tap-offs anywhere along the run.
  • Clear floors: overhead track keeps aisles open for safety and forklifts.
  • Cost-smart: lower labor and change-order spend versus hard conduit.
