40A Track Busway system
Three-Phase Track Busway Lengths

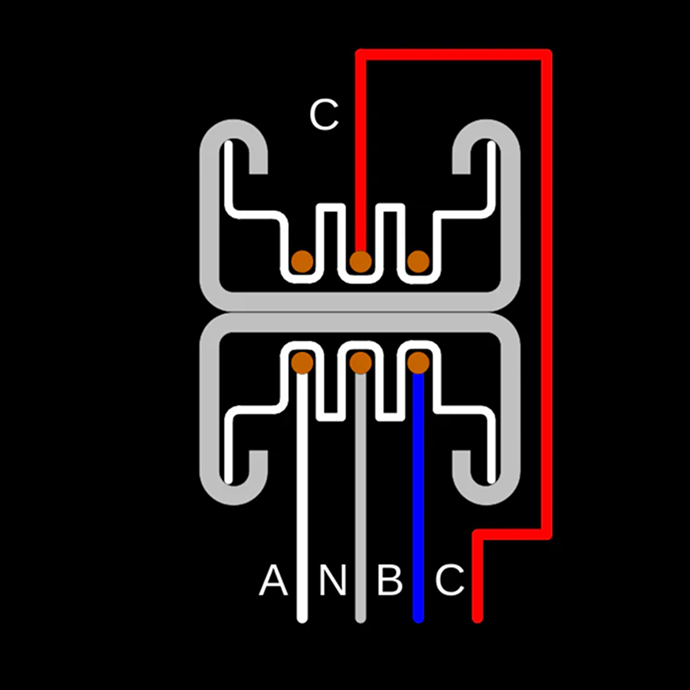

T40 three-phase wiring diagram
Upper deck: C.
Open full-size diagram
Match the tap-off to the load
- 1-pole: One phase plus neutral for compatible line-to-neutral equipment.
- 2-pole: Two phases for compatible line-to-line, single-phase equipment.
- 3-pole: All three phases for compatible three-phase equipment.
Confirm supply voltage, current, neutral, connector and protection for the selected tap-off. Use its wiring instructions for phase-C connections.
See Three-Phase Track Busway Lengths in Action
Watch how this product installs, connects, or configures with the Track Busway system
For additional installation scenarios, configuration examples, and system overviews, visit the Track Busway Video Library →

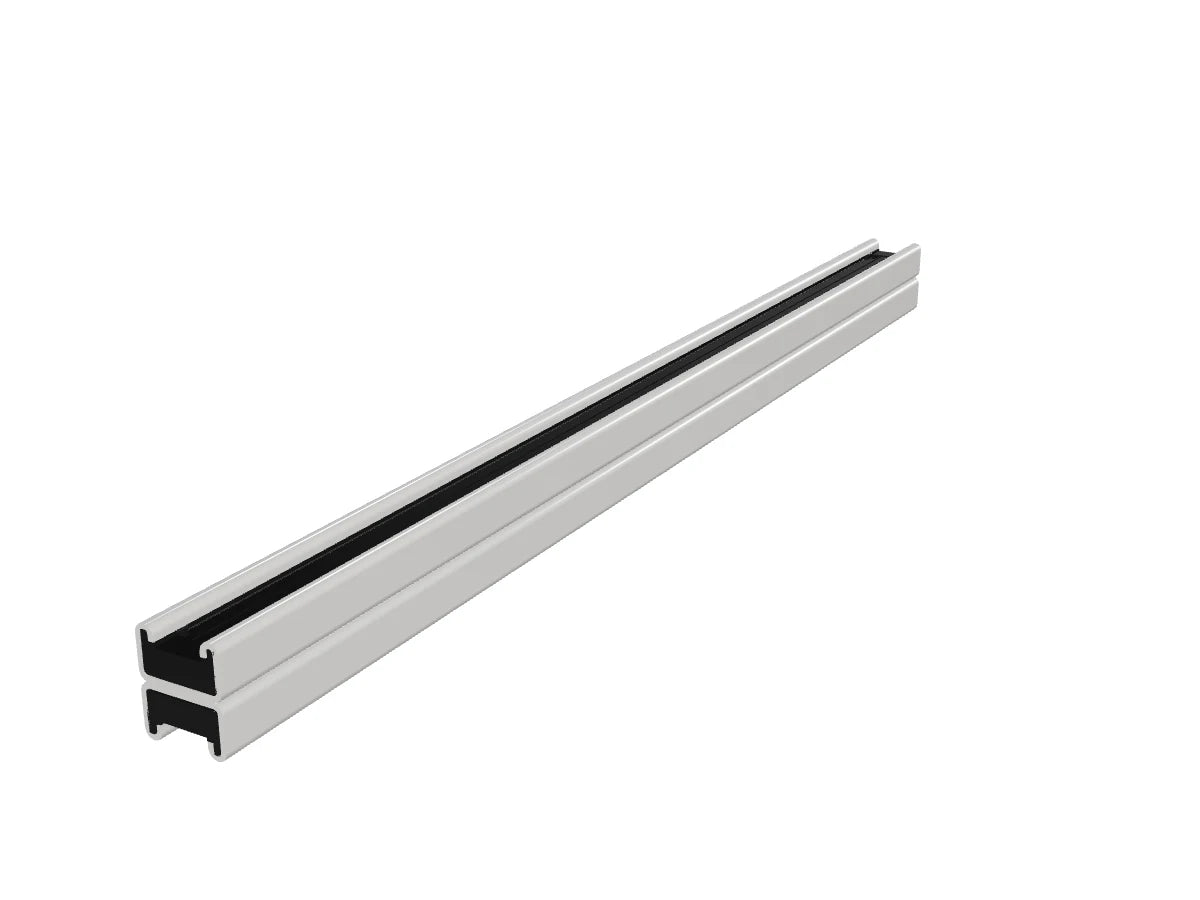

Interactive 3D Preview
Drag or use arrow keys to rotate. Scroll or pinch to zoom.
T40 three-phase Track Busway uses a double-deck assembly of two vertically stacked, prewired steel lengths. The lower deck carries phases A and B with neutral; phase C is accessed through the upper deck. Each piece has built-in endblocks, so separate end caps are not required. T40 uses the steel housing for equipment grounding; isolated ground and 200% neutral are not T40 options.
Catalogue #: M40-3-80-277-10-G-3B
ETL Listed to UL 857 Busway Standards
For 40A Track Busway system models and configurations covered by the listing.
Shipping: 7-foot and 10-foot track lengths ship by LTL freight. Shorter lengths may qualify for UPS parcel shipping.
Couldn't load pickup availability
Technical Downloads
T40 three-phase wiring diagram
Upper deck: C.
Open full-size diagram
Match the tap-off to the load
- 1-pole: One phase plus neutral for compatible line-to-neutral equipment.
- 2-pole: Two phases for compatible line-to-line, single-phase equipment.
- 3-pole: All three phases for compatible three-phase equipment.
Confirm supply voltage, current, neutral, connector and protection for the selected tap-off. Use its wiring instructions for phase-C connections.
Explore complete 40A layoutsUse these double-deck lengths as part of a complete three-phase ROW.Three-phase ROW (208V or 480V) →
A three-phase T40 system can supply compatible 1-, 2- or 3-pole tap-offs for the selected loads. Match the tap-off to the equipment's voltage, current, phase, neutral and connector requirements, with protection appropriate to the complete assembly. Compare PowerDrop cords, outlet boxes and the receptacle selection guide.
Use matching T40 joiner inserts and T40 three-phase line feeds. Plan feed locations, joins and protection around the selected supply, loads and approved layout. Follow the product instructions for installation and later changes.
Available in galvanized, white or black finishes, in 2.5, 3, 5, 7 and 10 ft lengths. Select the available rating, length and finish above.
For compatible single-phase loads, also review single-deck T40 lengths. A three-phase distribution system can still serve appropriately selected single-phase tap-offs.
Need plug-in units? Browse POWER Plug-Ins.

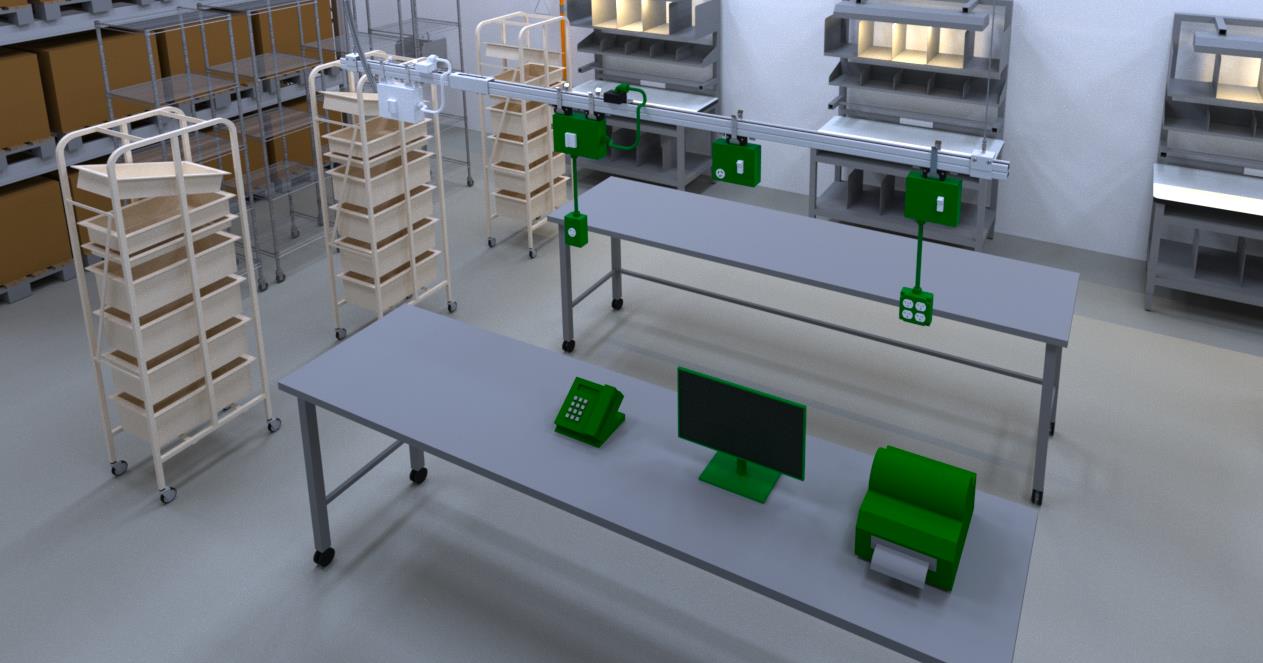

Track Busway is a modular overhead power distribution system built around pre-wired track busway lengths that suspend power where it’s needed in open-ceiling environments.
Each Track Busway layout is built from coordinated system components — including joiners, feeds, plug-in power drops, and supporting accessories — allowing projects to scale and adapt over time.
Simplify Overhead Power
Track Busway transforms open ceiling spaces with an innovative system that eliminates traditional overhead power structures, simplifying installations while maximizing flexibility.

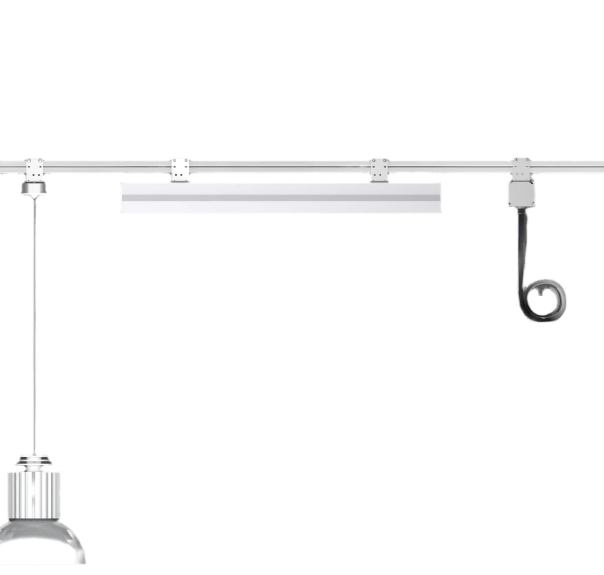

Pre-Wired Power Infrastructure: Deliver branch-circuit power exactly where it’s needed using pre-wired Track Busway lengths. Power drops can be added, moved, or reconfigured without rewiring to support evolving layouts.
Plug-and-Play Power Access: Tool-free, plug-in power taps with multiple receptacle options provide fast, reliable access to overhead power while maintaining code-compliant distribution.
Overhead Power DistributionExplore Applications & Projects Track Busway is a scalable, adaptable overhead power distribution solution designed to support changing equipment layouts and long-term system growth.
