Ships from OhioTypical system lead times

40A (T40) 4 weeks225A (T225) 8 weeks
Lead times & parts availability →

Typical production to shipment for complete systems with specified tap-offs, subject to configuration and order size. Freight transit is additional.

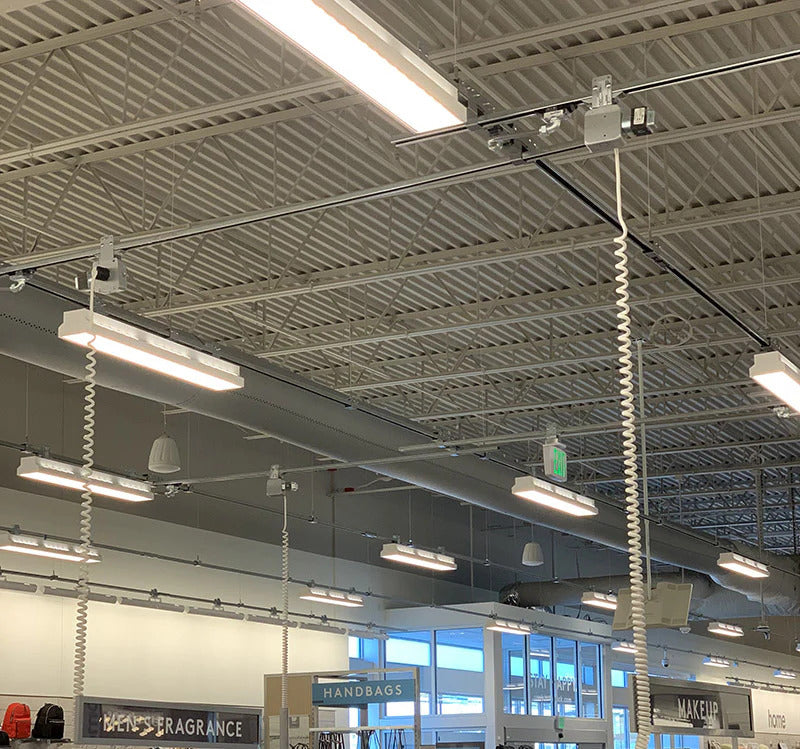

Icon representing flexible overhead power drops for USA TrackBusway system

T40 208V / 240V 2-Pole Track Busway Tap-Off Units

A T40 2-pole tap-off supplies a single-phase load from two hot conductors. The supply determines the line-to-line voltage.

Single-deck T40: The fitting picks up A and B. A 120/240V single-phase supply delivers 240V between them.

Double-deck, three-phase T40: A standard fitting picks up A and B on the lower deck. For A/C or B/C, choose a factory whip to reach upper-deck C (catalogue suffix -WP). On a 208Y/120V supply, each pair delivers 208V single-phase.

Compare the two wiring diagrams ↓
Track Busway 2-pole conductor diagram for 208V or 240V line-to-line plug-in power

A/B pickup shown. A two-pole line-to-line load uses two hots and equipment ground.

Shop T40 2-pole tap-offs

Choose an outlet box if the equipment cord reaches the busway, or a PowerDrop to bring the receptacle closer. Each link opens a 20A L6-20R assembly with standard A/B pickup.

208V outlet box 20A · L6-20R$482.79View product → 240V outlet box 20A · L6-20R$468.16View product → 208V PowerDrop 20A · L6-20R$452.20View product → 240V PowerDrop 20A · L6-20R$452.20View product →

Specifications

Phase Single-Phase
Voltage 208V (L–L) / 240V (L–L)
Pole Count (Breaker Configuration) 2
Amperage 15A / 20A / 30A
NEMA L6-15, L6-20, 6-20R, L6-30

208V / 240V 2-Pole Plug-In Unit Specifications

208V / 240V 2-pole Track Busway plug-in units connect two hot conductors to supply line-to-line power. The outlet boxes and PowerDrop cords shown above have integral breakers and are available with 15A, 20A, or 30A receptacle and breaker configurations.

Use this family for equipment, tools, lab devices, kitchen equipment, and other higher-load single-phase loads that require 208V or 240V power without a neutral. For 120V line-to-neutral loads, use 1-pole tap-off units. For three-phase equipment, use 3-pole tap-off units.

How two-pole pickup differs by T40 run

Single-deck T40

120/240V single-phase supply

Single-deck T40 with a 240V feed and an A/B outlet box

The outlet box takes A and B from the same deck to deliver 240V.

Double-deck T40

208Y/120V three-phase supply

Double-deck T40 wiring diagram showing the lower and upper phases and several tap-off types

A 2-pole assembly can take A/B on the lower deck, or A/C or B/C with an upper-deck whip. Each pair serves a 208V single-phase load.

Open the 208V two-pole tap-off detail →   Single-phase vs. three-phase Track Busway →

Watch the single-phase installation video
ETL Logo for USA TrackBusway

How a single-phase T40 busway run goes together

Watch how the installer aligns two busway lengths and joins them overhead. At each joint, the layout determines whether the same circuit continues or a new feed supplies the next section.

Compare T40 pole configurations

Using T225 / 225A Track Busway?

Choose the matching T225 2-pole tap-offs below. T40 and T225 tap-offs fit different busway systems and are not interchangeable.

View T225 2-pole tap-offs & wiring →
