The STEEL TRACK BUSWAY system is designed to expand seamlessly, enabling you to create modular overhead power distribution sections of any size with the use of over/under intersections. The modular design supports all types of plug-in power access points in these rectangular configurations, accommodating various power configurations to scalable solutions for evolving project needs.
These components allow abutting lengths to connect seamlessly, enabling fully customized layouts to meet unique project requirements. Whether your rectangular overhead power drops project includes plug-in power access points or other configurations, every power drop can be positioned with precision to optimize power functionality.
Note: This configuration represents a typical rectangular overhead power drop setup; however, the modular system’s adaptability allows for customized layouts that can grow with your project requirements.

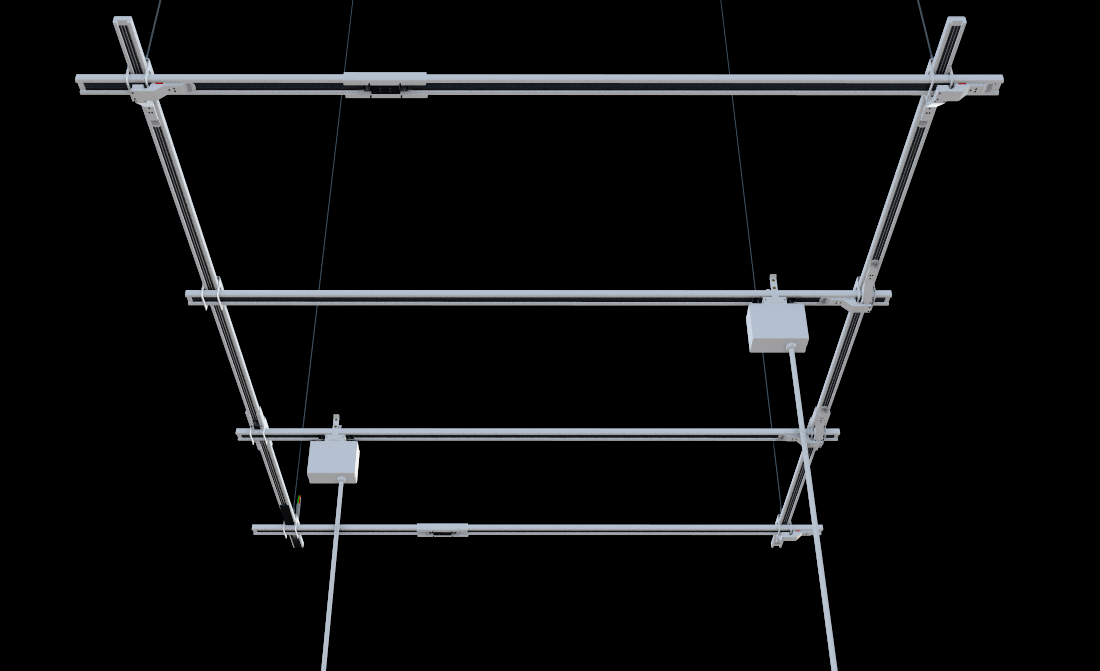

Grid System – Small (7'6" x 7'6")
SKU: Catalogue # (SKU):
Couldn't load pickup availability
This 7'6" x 7'6" Grid Kit offers a highly flexible, modular solution for integrating overhead power and other essential features into one streamlined system. The built-in wiring and open-slot plug-in flexibility make it ideal for overhead power distribution, supporting fully customizable power configurations. The system accommodates plug-in power access points throughout the grid, ensuring efficiency and scalability for evolving project needs.
Downloads – Grid System – Small (7'6" x 7'6")
Looking for more technical assets?
Visit our BIM & Design Tools page .
View full details
