Large Track Busway Rectangle System
The Track Busway system is designed to expand seamlessly, enabling you to create modular overhead power distribution sections of any size with the use of over/under intersections. The modular design supports all types of plug-in power access points in these rectangular configurations, accommodating various power configurations to scalable solutions for evolving project needs.
These components allow abutting lengths to connect seamlessly, enabling fully customized layouts to meet unique project requirements. Whether your rectangular overhead power drops project includes plug-in power access points or other configurations, every power drop can be positioned with precision to optimize power functionality.
Note: This configuration represents a typical rectangular overhead power drop setup; however, the modular system’s adaptability allows for customized layouts that can grow with your project requirements.
USA TrackBusway
SKU: Catalogue # (SKU): ROW-LGD-B
Couldn't load pickup availability
Technical Downloads
This large Track Busway rectangle configuration creates a wide-area plug-in overhead power distribution rectangle approximately 15′ × 29′6″ in size. Parallel Track Busway runs allow plug-in PowerDrops to be positioned anywhere along the layout.
This configuration is designed for larger production areas where distributed plug-in power must be accessible across wide equipment layouts.
The built-in wiring and open-slot plug-in flexibility make it ideal for overhead power distribution, providing the simplest installation process with fully customizable power configurations. The system supports plug-in power access points throughout the rectangular layout, ensuring efficiency and scalability for evolving project needs.
What’s Included in This Kit
- Pre-configured Track Busway lengths
- Over-under crossover intersections
- Electrical jumpers
- Suspension hardware
- Power feed (included)
- Attachment option: None or PowerDrops
Need a confirmed layout or modified rectangle layout?
Request Complimentary Layout
Explore Track Busway Rectangle Configurations
Compare the other standard rectangle layout sizes to find the configuration that best matches your coverage area and workspace footprint.
-

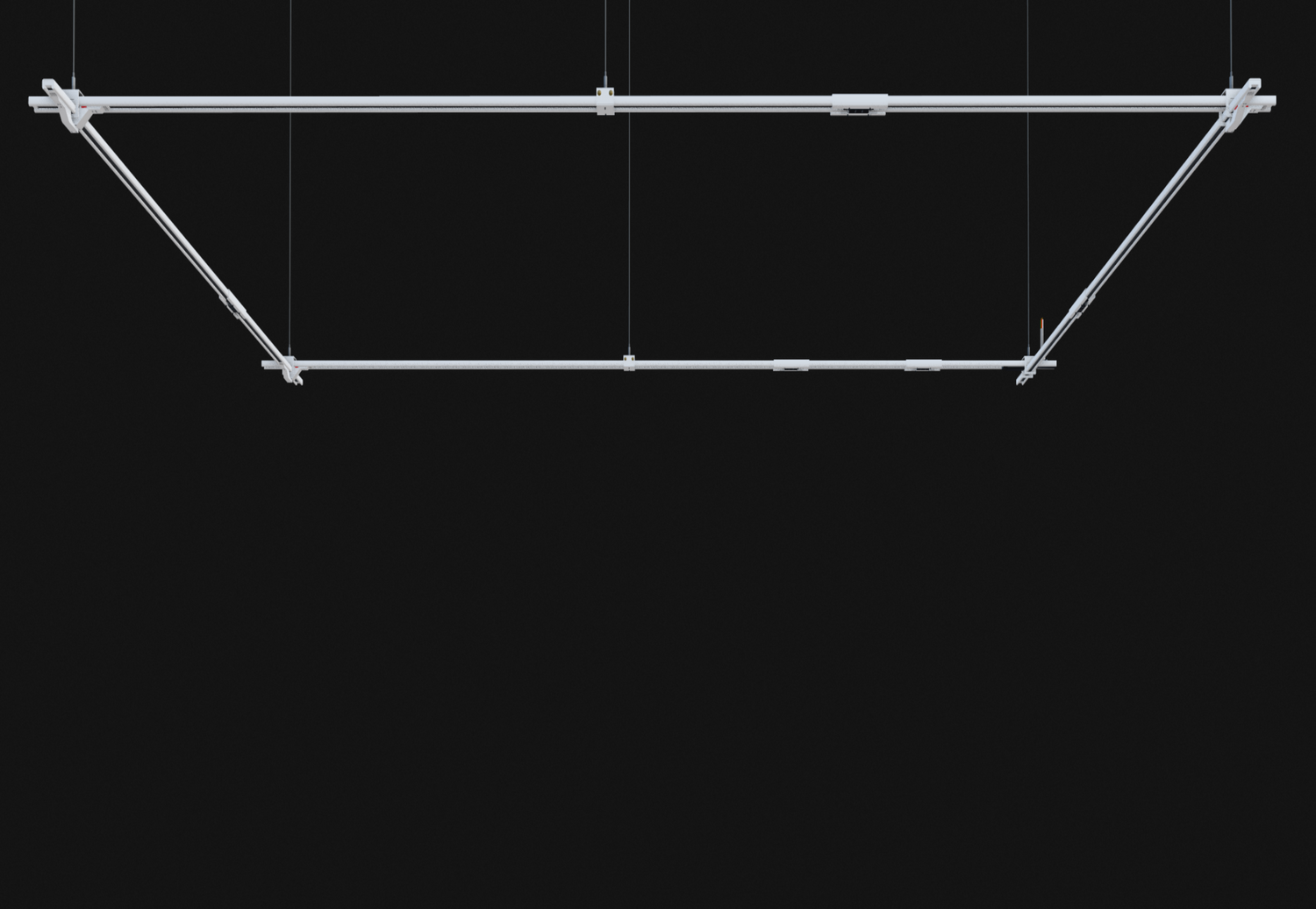

Small Rectangle System
Compact perimeter layout for smaller work areas.
-
Medium Rectangle System
Balanced rectangular layout for mid-size equipment zones.
