T40 45 ft breakered cord reel
120V · 1-pole · 20A
From $1,400.00 USD
Single, duplex or quad receptacles; duplex and quad GFCI options.
View T40 cord reel →Plug-in tap-off boxes · 40A & 225A systems
Track Busway Outlet Boxes
Compare plug-in outlet boxes for T40 and T225 Track Busway. A multi-circuit busway distributes power on up to three phases. Each tap-off connects to the phase conductor(s), and neutral when needed, for its load.
Tap-offs select a circuit; they do not convert voltage. Match the supply, tap-off and equipment ratings.
T40 tap-offsFor the 40A Track Busway system
T225 tap-offs / bus plugsFor the 225A Track Busway system
T40 and T225 are not interchangeable. The system rating is separate from each tap-off’s load rating.
Ships from OhioTypical system lead times
40A (T40)3–4 weeks225A (T225)8 weeks
Typical production to shipment for complete systems with specified tap-offs, subject to configuration and order size. Freight transit is additional.
Lead times & parts availability →Why use Track Busway outlet boxes?

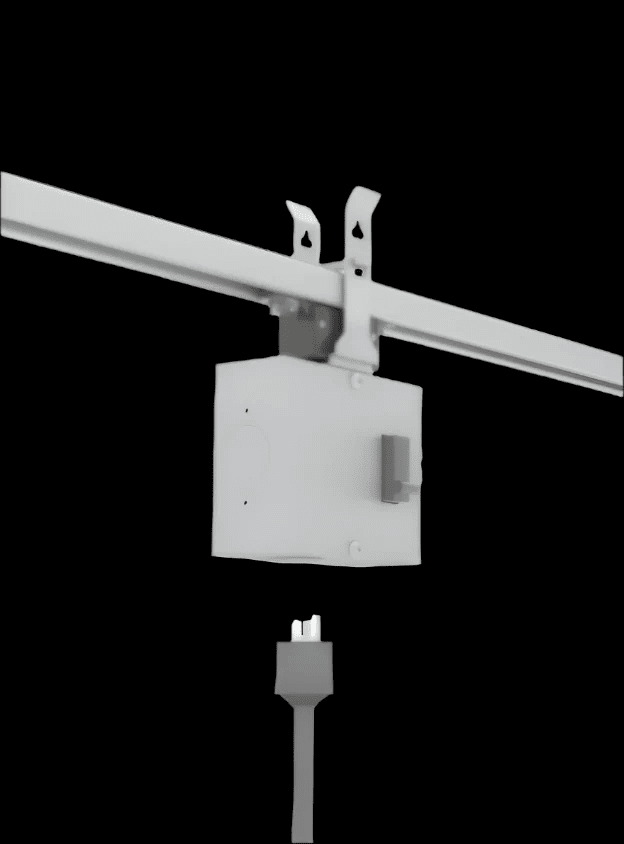

Keep receptacle access directly at the overhead busway so equipment cords can plug in at track level.
Explore breakered outlet-box tap-offs for protection at the connection. Unbreakered alternatives are also available where the circuit design calls for them. For power needed lower in the space, use a drop cord.

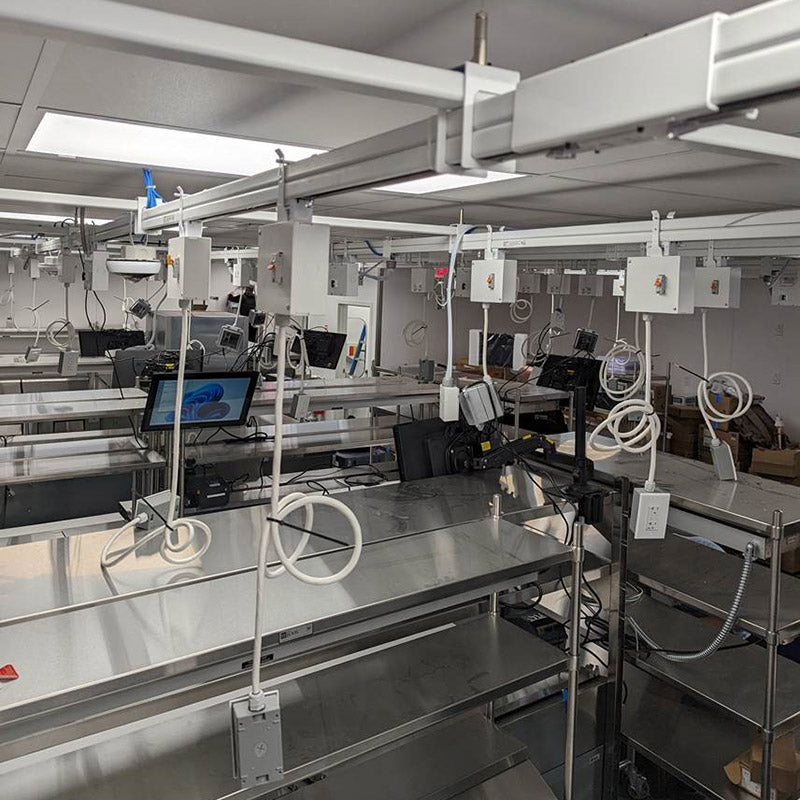

Tap-off enclosures and suspended power cords.
Overhead distribution in an industrial work area.
1-Pole Outlet Boxes (line-to-neutral)
One phase conductor + neutral supplies a single-phase load:
- 120V from a 120/240V or 208Y/120V supply
- 277V from a 480Y/277V supply
- 240V from a 415Y/240V supply
The T40 products shown below are 120V models; other voltages require a matching rated build.
T40 diagram: Phase A + neutral shown. Ground path not shown. T225 diagram: Gold marks the selected contacts and conductors.
When should I choose a 1-pole outlet box?
Choose a line-to-neutral outlet-box tap-off when single-phase equipment can plug in at the busway. A breakered outlet box provides protection at the tap-off. Match the receptacle, voltage and breaker rating to the load, and the fitting to T40 or T225.
T40 · 40A system
T40-compatible tap-offs and outlet boxes.
T225 · 225A system
T225-compatible breakered tap-offs / bus plugs.
Need power that retracts when the work is done?
A breakered cord reel brings 120V power within reach, then returns the cord overhead when it is not in use.
T225 45 ft breakered cord reel
120V · 1-pole · 20A
From $1,950.00 USD
Single, duplex or quad receptacles; duplex and quad GFCI options.
View T225 cord reel →Busway support requires threaded rod larger than 1/4 in. nominal diameter. 1/4-20 rod is not permitted. Choose the reel that matches your busway family. All receptacles on each reel share one 120V, 20A branch.
2-Pole Outlet Boxes (line-to-line)
Two hot conductors supply a single-phase load:
- 240V from a 120/240V single-phase supply
- 208V from a 208Y/120V three-phase supply
- 480V from a 480Y/277V three-phase supply
- 415V from a 415Y/240V three-phase supply
Select a tap-off rated for the line-to-line voltage; 480V and 415V require a matching rated build.
T40 diagram: Phases A + B shown; neutral unused. Ground path not shown. T225 diagram: Gold marks the selected contacts and conductors.
How do I choose a 2-pole breakered outlet box?
Match the equipment’s line-to-line voltage, receptacle and required current to the selected tap-off. Keep the outlet at the busway when the equipment cord can reach it; use a drop cord when receptacle access is needed lower down.
T40 · 40A system
T40-compatible tap-offs and outlet boxes.
-
T40 · 40A system
T40 2-Pole Breakered Outlet Box
Choose supply voltage
208V From $438.90 USD → 240V From $425.60 USD → -
T40 · 40A system
T40 2-Pole Outlet Box · No Breaker
Choose supply voltage
208V From $119.70 USD → 240V From $119.70 USD →
T225 · 225A system
T225-compatible breakered tap-offs / bus plugs.
3-Pole Outlet Boxes (three-phase)
All three phase conductors serve a three-phase load. Supply examples:
- 208Y/120V
- 480Y/277V
- 415Y/240V
Match the selected tap-off’s voltage rating and neutral connection to the equipment; 415Y/240V T225 builds are project-specific.
T40 diagram: Phases A, B, C + neutral shown. Ground path not shown. T225 diagram: Gold marks the selected contacts and conductors.
Does a 3-pole outlet box need a neutral?
That depends on the equipment connection. Three phase conductors serve the three-phase load; neutral is included when required by the selected receptacle and assembly. Confirm the wiring and protection for the exact T40 or T225 outlet-box tap-off.
T40 · 40A system
T40-compatible tap-offs and outlet boxes.
T225 · 225A system
T225-compatible breakered tap-offs / bus plugs.
