40A Track Busway System

Up to 40A per phase, per feed

Bring plug-in power to workstations, equipment and lighting. Pre-wired steel lengths join end to end, and the continuous slot lets you place PowerDrops and outlet boxes where you need them.

Build & price a T40 row in 3D →

Choose components and see pricing as you build your row.

Watch a single-deck T40 installation

Browse the Track Busway video library →

Single-phase single deck or three-phase double deck?

Single-phase single-deck length with an A–N–B cross-section

Single-phase · single deck

Conductors
A and B share one deck with neutral between them.
Plug-in connections
One pole connects hot to neutral. Two poles connect across both hot conductors.
Example on a 208Y/120V supply
Feed the deck with two phases to serve 120V bench outlets and 208V single-phase equipment.
View single-phase lengths →
Three-phase double-deck length with an A–N–B lower deck and phase C above

Three-phase · double deck

Conductors
A, neutral and B sit in the lower deck. The upper deck adds phase C.
Plug-in connections
Three poles serve three-phase equipment. Compatible one- and two-pole units serve single-phase loads.
Example on a 208Y/120V supply
Supply a 208V three-phase machine and 120V bench outlets from the same 208Y/120V supply.
View three-phase lengths →

T40 also supports stacked single-phase decks and cable tray above a powered deck. Compare all four row configurations →

Select each tap-off for the supply voltage and equipment load. Explore T40 tap-offs →

How the T40 system is built

T40 installation guide →
Explore the assembly

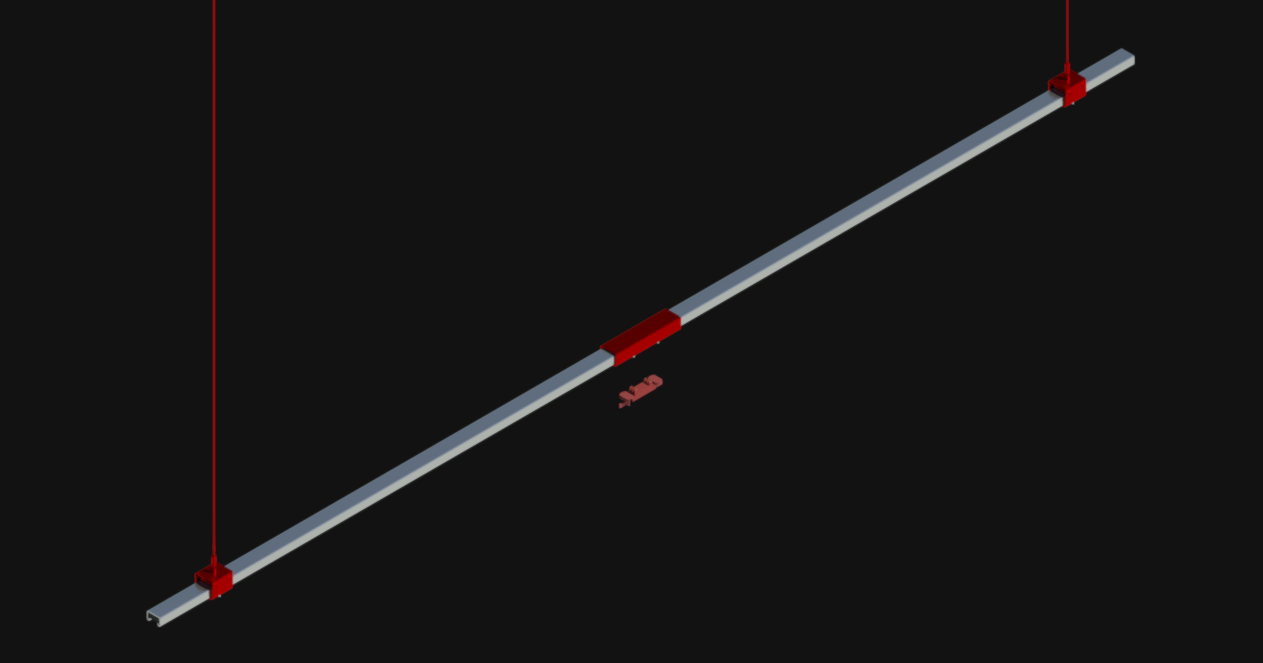

Assembled T40 single-deck run showing the overhead supports and joint between sections

Assembled run

The hangers suspend the steel track. Where two lengths meet, a sleeve joins the housings and an electric insert continues the circuit.

Shop featured components ↓

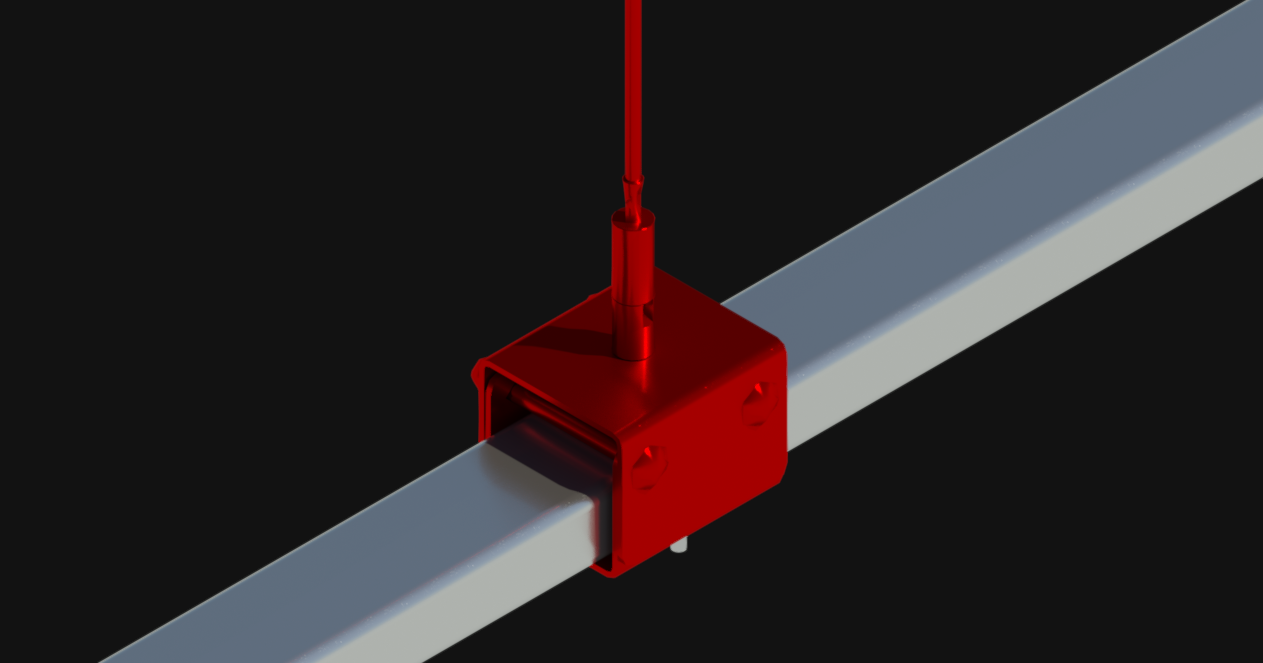

Track Busway hanger assembly for suspended overhead busway runs

Suspension hanger

Supports the run from above. Choose a hanger that fits the single-deck or double-deck profile.

View hangers →

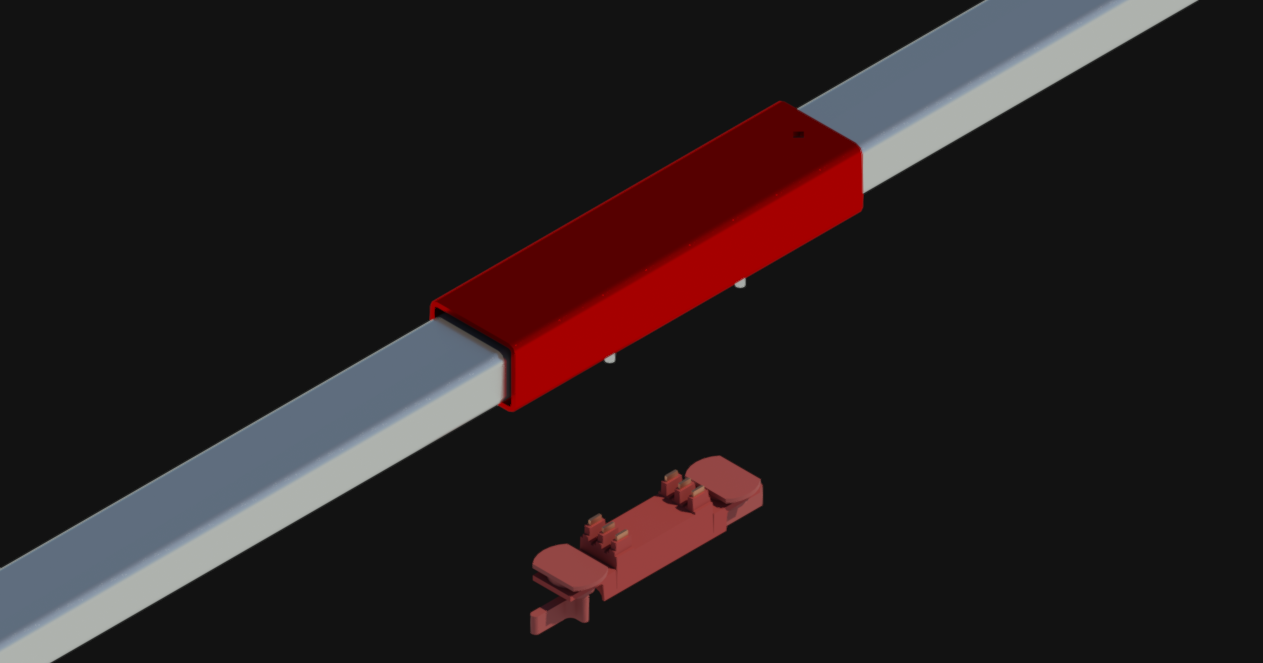

Track Busway joiner sleeve for connecting adjacent busway lengths

Mechanical joiner sleeve

Fits over the ends of two adjoining lengths to align and secure the steel housings. Match the sleeve to the deck height.

View joiner sleeves →
Black joiner insert featuring exposed copper contacts and locking tabs for electrically joining track busway sections

Joiner insert

An electric insert carries power across the joint. Choose a non-electric insert where the circuit ends.

View joiner inserts →
Single-phase Track Busway with feed unit and flex conduit connection for overhead power supply

Power feed

Brings the building supply into the busway. Select a feed for the phase configuration and circuit design.

Compare T40 feeds →

Find T40 tap-offs by voltage

Choose the pole count and voltage that match your supply and equipment.

Browse all T40 tap-offs →

Plan your T40 layout

Straight rows →

Straight T40 run with a feed, drop cord and outlet box

Compare four row arrangements, including stacked decks and cable tray above a powered deck.

Rectangles →

Suspended T40 busway forming a rectangle

Bring power around the perimeter of a work area.

Grids →

Intersecting T40 busway runs forming a grid

Connect rows and cross runs to serve several workstations.

Ships from OhioTypical system lead times

40A (T40) 4 weeks225A (T225) 8 weeks
Lead times & parts availability →

Typical production to shipment for complete systems with specified tap-offs, subject to configuration and order size. Freight transit is additional.
