Large Track Busway Grid System

  • suspended track busway grid
1 1

The Track Busway system is designed to expand seamlessly, enabling you to create modular overhead power distribution sections of any size with the use of over/under intersections. The modular design supports all types of plug-in power access points in these rectangular configurations, accommodating various power configurations to scalable solutions for evolving project needs.

Illustration of two Track Busway channels crossing through a slimline crossover block; red arrows show the sliding direction for inserting the channels

These components allow abutting lengths to connect seamlessly, enabling fully customized layouts to meet unique project requirements. Whether your rectangular overhead power drops project includes plug-in power access points or other configurations, every power drop can be positioned with precision to optimize power functionality.

Track Busway run with a moving trolley carriage suspended beneath it; the carriage is a black rectangular assembly with small white wheels

Note: This configuration represents a typical rectangular overhead power drop setup; however, the modular system’s adaptability allows for customized layouts that can grow with your project requirements.

  • suspended track busway grid
1 1

USA TrackBusway

A Track Busway GRID system creates an overhead power distribution grid using intersecting plug-in busway runs, allowing power drops to be positioned anywhere across the workspace.

$4,884.36 USD
$4,884.36 USD
Sale Sold out

Catalogue # (SKU): GRID-LGD-G

Color
Power Drop Configuration

Technical Downloads

More technical resources →

Request a STEP Model

Ships from Ohio · System lead times & parts support

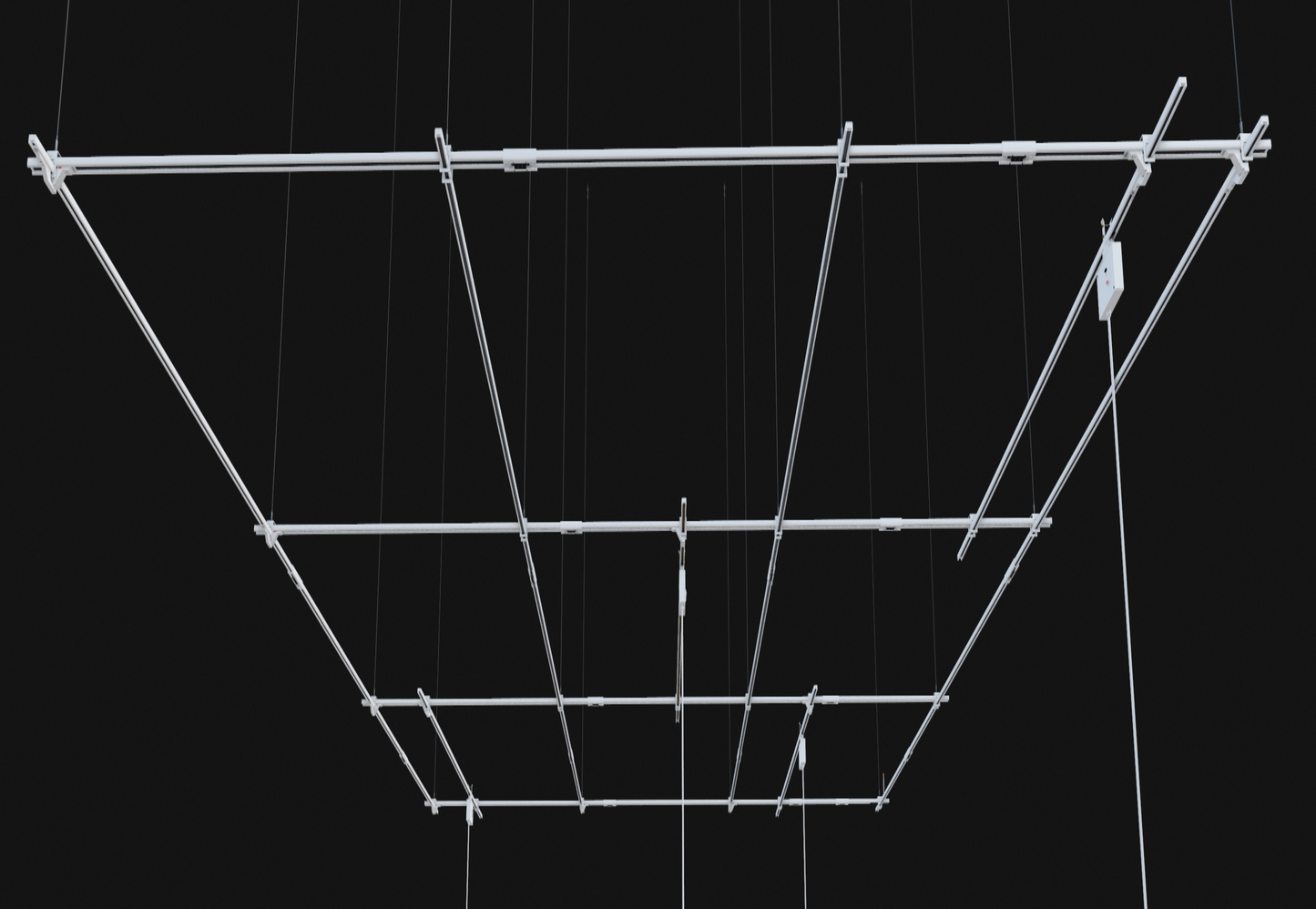

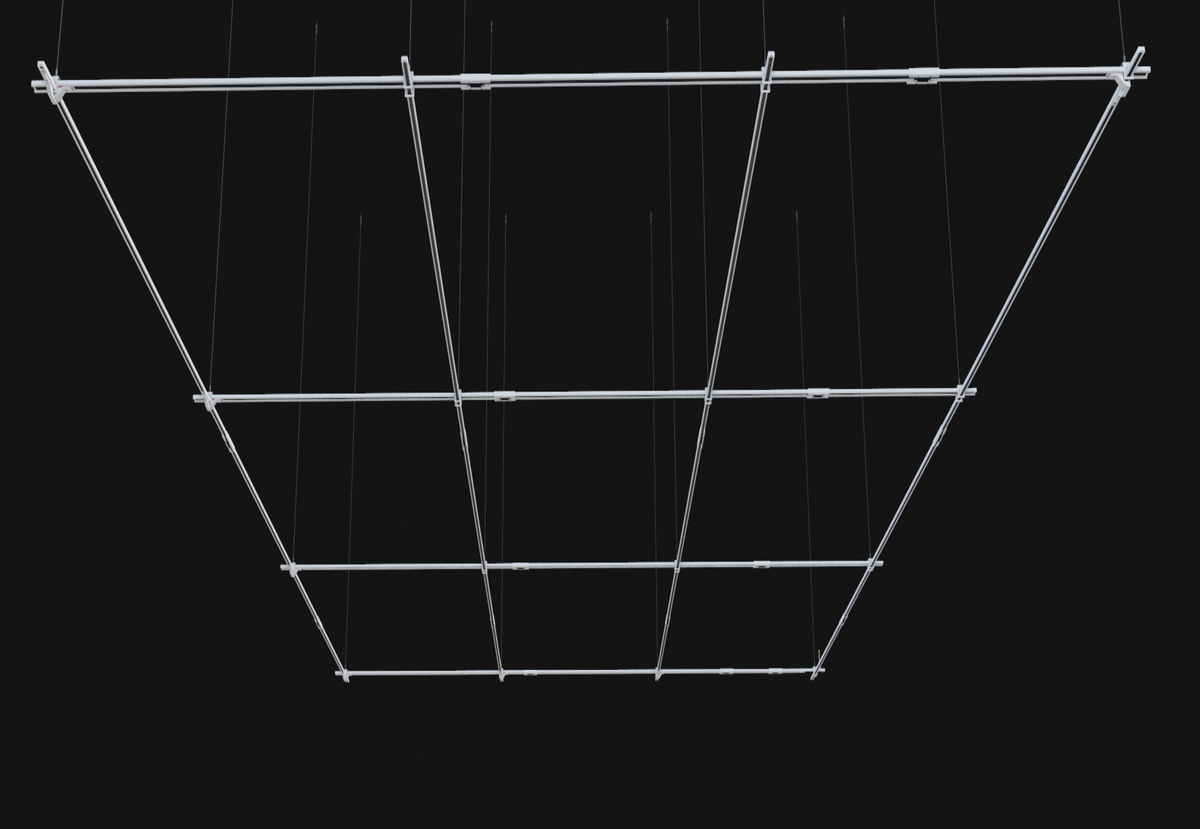

This large Track Busway GRID configuration creates an expansive overhead power grid approximately 25′ × 25′ in size. Intersecting Track Busway runs allow plug-in PowerDrops to be positioned anywhere within the grid.

This configuration is designed for larger production areas where distributed plug-in power is needed across wide equipment layouts.

How This Grid Scales

  • Uses consistent modular Track Busway components
  • Over-under intersections allow adjustable cell spacing
  • Coverage increases from Small to Large
  • Layout can expand without replacing base infrastructure

What’s Included in This Kit

Need a confirmed layout or modified grid spacing?

Request Complimentary Layout
View full details

Explore Track Busway Grid Configurations:

Compare the other Track Busway GRID configurations to determine the layout that best fits your workspace coverage and overhead power distribution needs.

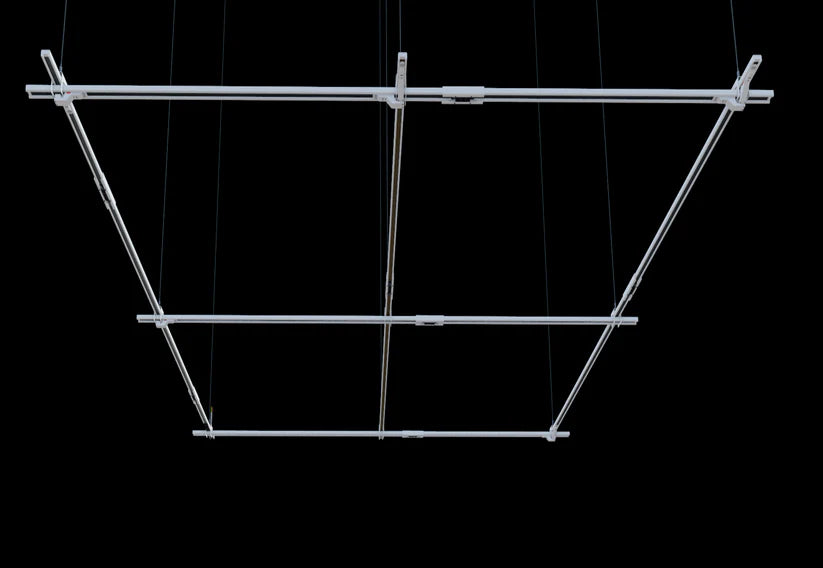

  • Small white Track Busway grid kit assembled without power components

    Small Track Busway Grid System

    Compact perimeter layout for smaller work areas.

  •

    Medium Track Busway Grid System

    Balanced rectangular layout for mid-size equipment zones.
