Plug-in power · 40A & 225A systems
Track Busway Drop Cords
Compare PowerDrop cords for T40 and T225 Track Busway. A multi-circuit busway distributes power on up to three phases. Each tap-off connects to the phase conductor(s), and neutral when needed, for its load.
Tap-offs select a circuit; they do not convert voltage. Match the supply, tap-off and equipment ratings.
T40 tap-offsFor the 40A Track Busway system
T225 tap-offs / bus plugsFor the 225A Track Busway system
T40 and T225 are not interchangeable. The system rating is separate from each tap-off’s load rating.
Ships from OhioTypical system lead times
40A (T40)3–4 weeks225A (T225)8 weeks
Typical production to shipment for complete systems with specified tap-offs, subject to configuration and order size. Freight transit is additional.
Lead times & parts availability →Why use Track Busway drop cords?
Bring power down from overhead busway to benches, workstations and equipment below.
Choose the cord length, receptacle and protection for the equipment. For receptacle access directly at the busway, use an outlet box.
Tap-off enclosures and suspended power cords.
Overhead distribution in an industrial work area.
1-Pole Drop Cords (line-to-neutral)
One phase conductor + neutral supplies a single-phase load:
- 120V from a 120/240V or 208Y/120V supply
- 277V from a 480Y/277V supply
- 240V from a 415Y/240V supply
The T40 products shown below are 120V models; other voltages require a matching rated build.
T40 diagram: Phase A + neutral shown. Ground path not shown. T225 diagram: Gold marks the selected contacts and conductors.
When should I choose a 1-pole drop cord?
Choose a line-to-neutral PowerDrop cord when single-phase equipment needs receptacle access below the busway. Match the equipment voltage, cord length, connector and current rating. Select the T40 or T225 fitting that matches your installed system.
T40 · 40A system
T40-compatible PowerDrop cords.
T225 · 225A system

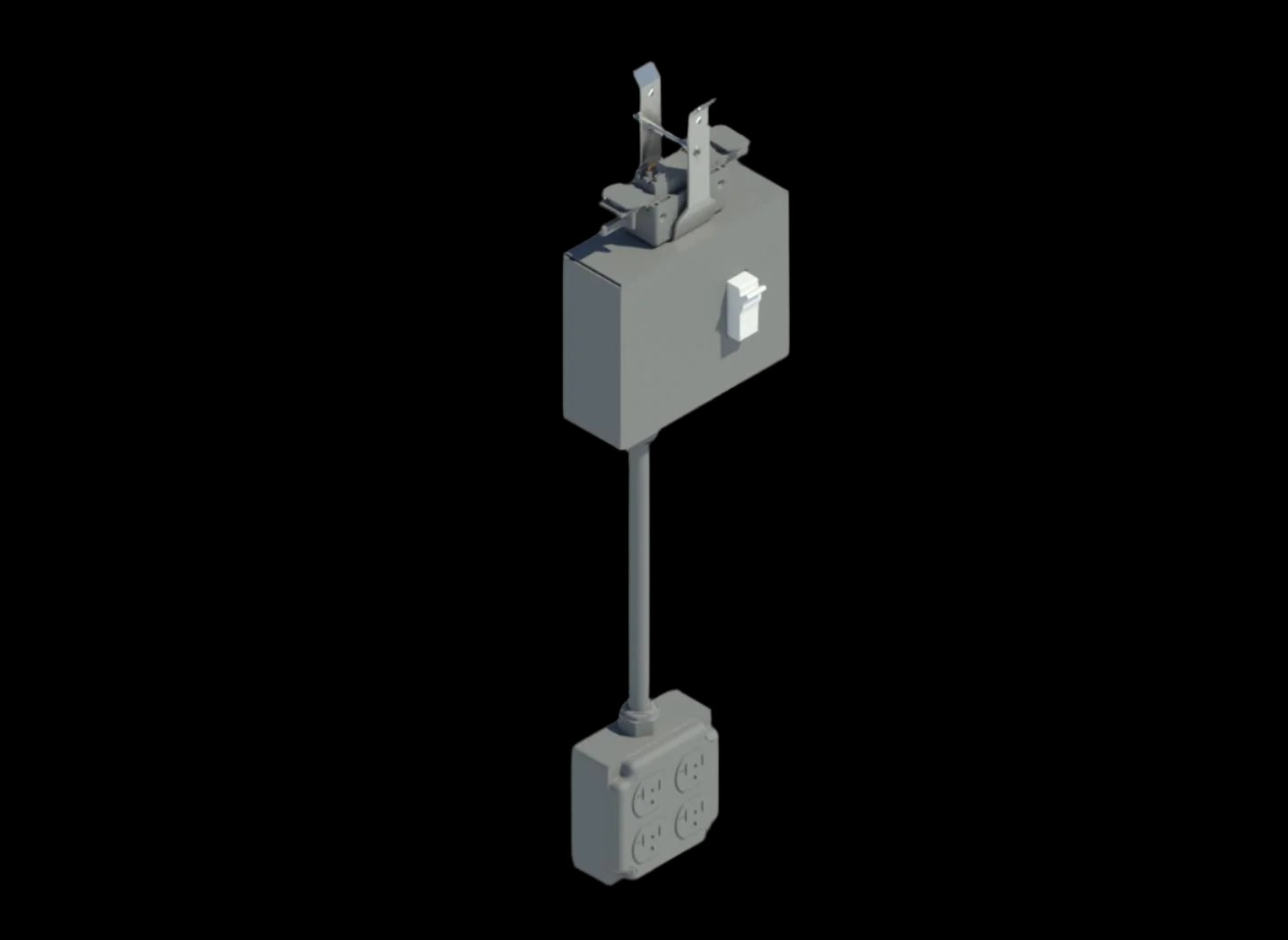

T225-compatible breakered drop cords.
Power within reach. Cord away when not in use.
Engineered for Track Busway, these breakered cord reels use a calibrated spring for controlled pull-down and smooth return. Choose single 5-20C, duplex or quad 5-20R; GFCI options are available for duplex and quad.
Both busway systems require threaded rod larger than 1/4 in. nominal diameter. 1/4-20 rod is not permitted. Match the reel to T40 or T225 busway and coordinate the supports and operating clearance. All receptacles on each reel share one 120V, 20A branch.

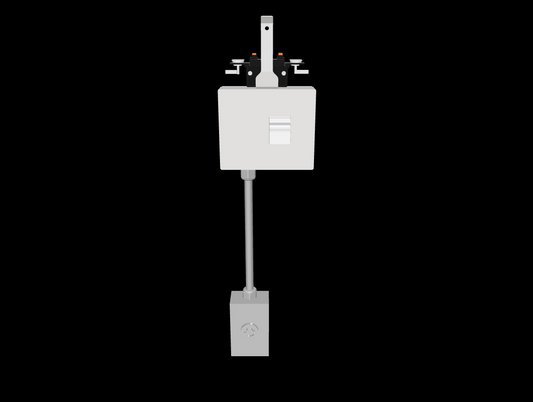

2-Pole Drop Cords (line-to-line)
Two hot conductors supply a single-phase load:
- 240V from a 120/240V single-phase supply
- 208V from a 208Y/120V three-phase supply
- 480V from a 480Y/277V three-phase supply
- 415V from a 415Y/240V three-phase supply
Select a tap-off rated for the line-to-line voltage; 480V and 415V require a matching rated build.
T40 diagram: Phases A + B shown; neutral unused. Ground path not shown. T225 diagram: Gold marks the selected contacts and conductors.
Does a 2-pole drop cord supply three-phase power?
No. A 2-pole tap-off uses two phase conductors to supply a single-phase load. Select a drop cord with the line-to-line voltage and cord-end connector required by the equipment. The tap-off selects conductors; it does not convert voltage.
T40 · 40A system
T40-compatible PowerDrop cords.
T225 · 225A system
T225-compatible breakered drop cords.

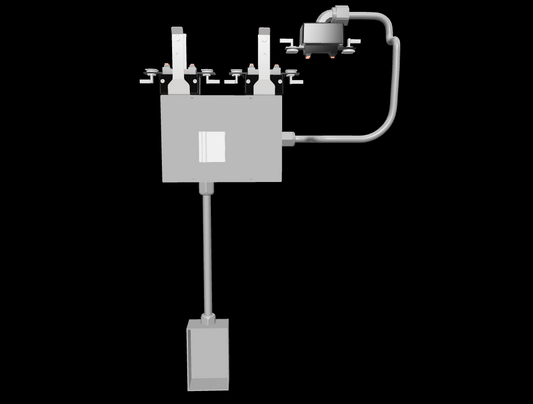

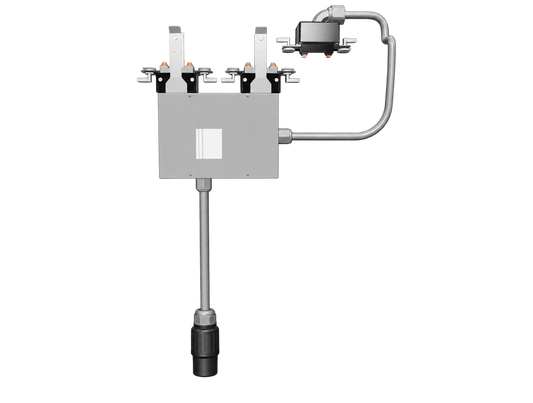

3-Pole Drop Cords (three-phase)
All three phase conductors serve a three-phase load. Supply examples:
- 208Y/120V
- 480Y/277V
- 415Y/240V
Match the selected tap-off’s voltage rating and neutral connection to the equipment; 415Y/240V T225 builds are project-specific.
T40 diagram: Phases A, B, C + neutral shown. Ground path not shown. T225 diagram: Gold marks the selected contacts and conductors.
When is a 3-pole PowerDrop cord needed?
Use a 3-pole drop cord for equipment that requires all three phases, with receptacle access below the overhead busway. Confirm the equipment voltage, current, cord length and connector. Include neutral when required by the equipment connection.
T40 · 40A system
T40-compatible PowerDrop cords.
T225 · 225A system
T225-compatible breakered drop cords.
Frequently Asked Questions
A busway drop cord is a plug-in corded power-access device that brings electricity down from the overhead Track Busway to the point of use below.
A drop cord receptacle is the cord-end device attached to the PowerDrop Cord, such as a straight-blade or twist-lock receptacle selected to match the voltage and equipment connection required.
Use a cord drop when power needs to hang lower in the space to reach equipment below the busway. Use an outlet box when power should remain directly at the busway.
Overhead power drops are suspended power connections that bring electricity from an overhead busway or ceiling-level power path down to equipment or work areas below. In Track Busway layouts, drop cords are the movable corded option for bringing power closer to the point of use.
Yes. Track Busway drop cords are commonly used as ceiling power drops because they bring overhead power down from the busway to equipment or workstations below.
Yes. Track Busway drop cords are available for common 120V, 208V, 240V, and selected 3-phase applications, depending on the cord style, receptacle option, and plug-in configuration required.
