40A Track Busway system
3-Phase PowerDrop Cord
Specifications
| Phase | Three-Phase |
|---|---|
| Voltage | 208V / 480V three-phase; 120/208V or 277/480V with neutral |
| Amperage | 20A / 30A - matched 3-pole breaker |
| Pole Count | 3 breaker poles (A + B + C); neutral with L21 / L22 |
| NEMA | L15-20 / L15-30 / L21-20 / L21-30 / L16-20 / L16-30 / L22-20 / L22-30 - cord-end connectors |

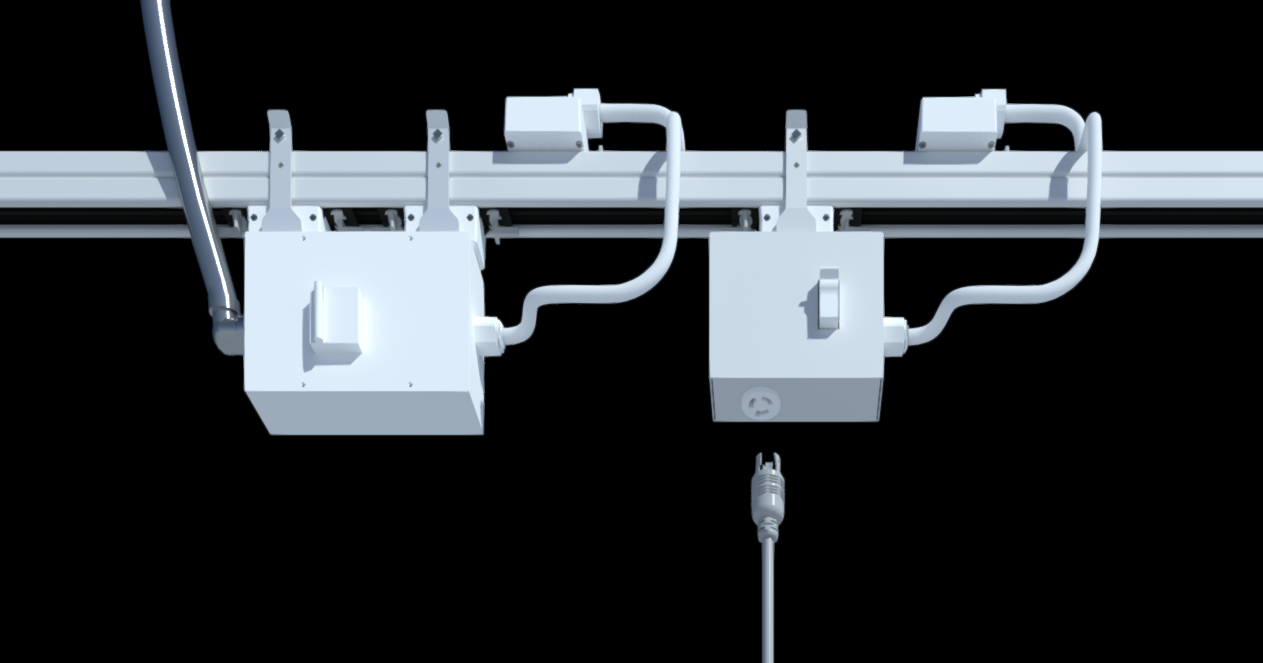

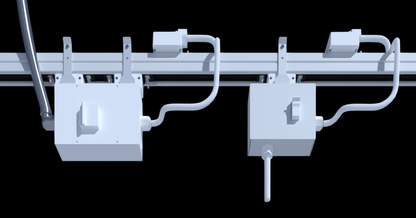

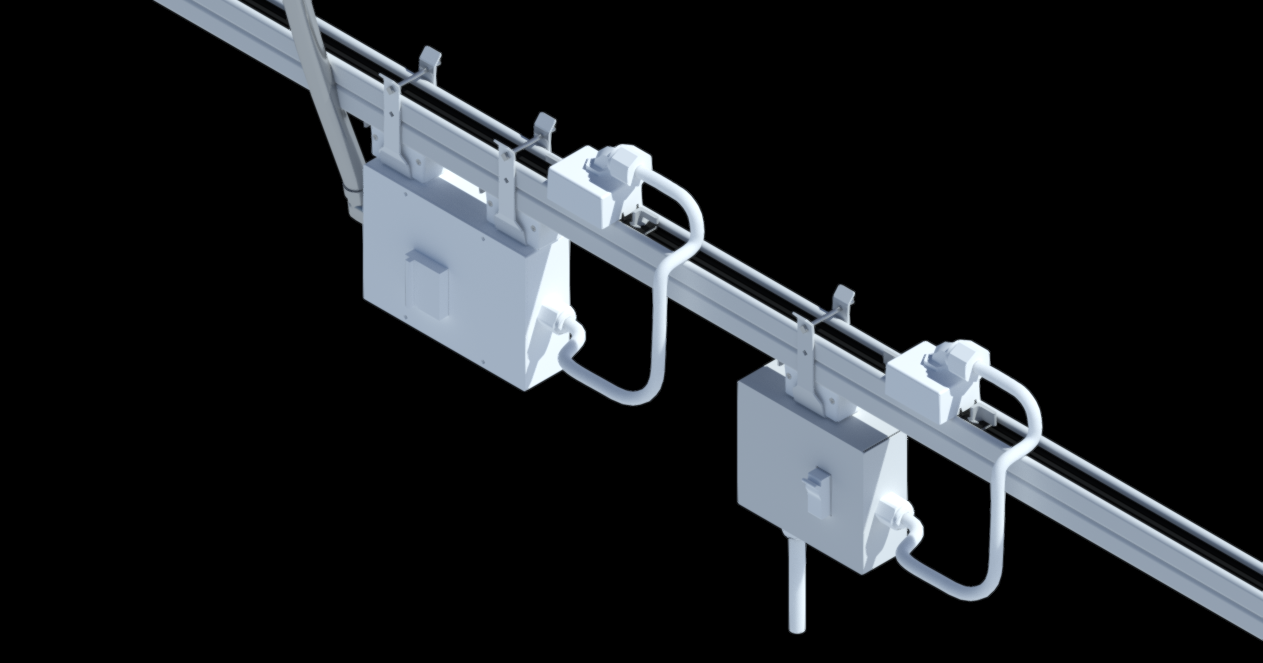

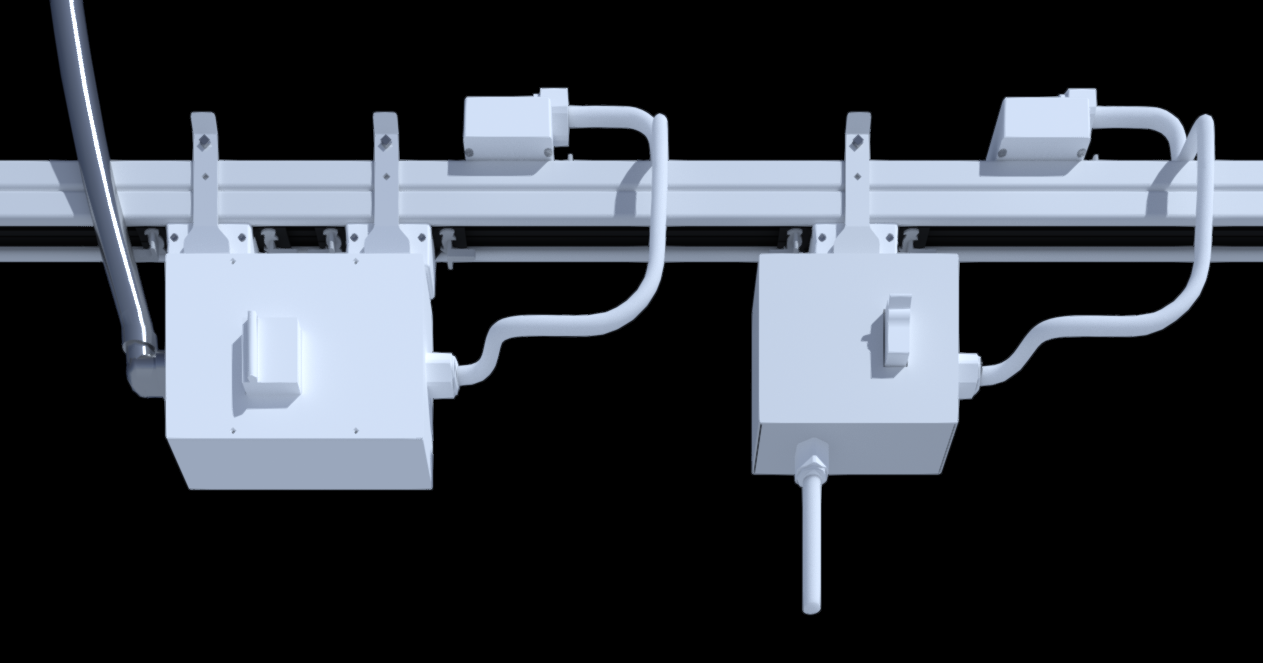

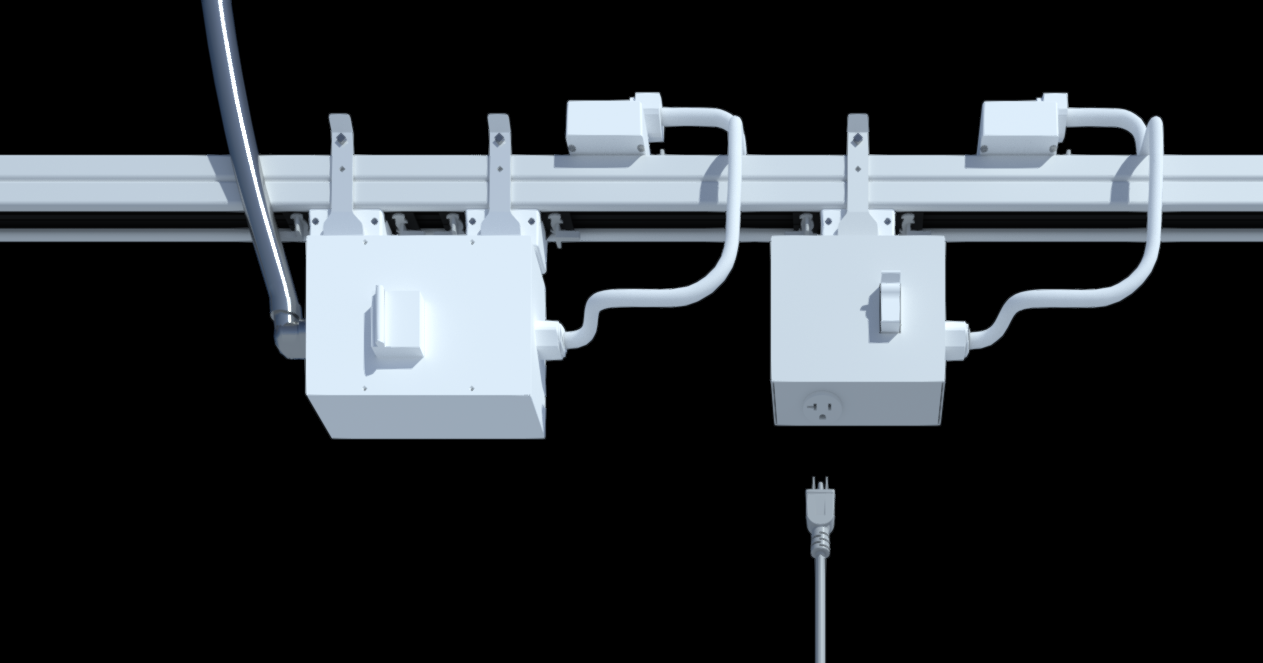

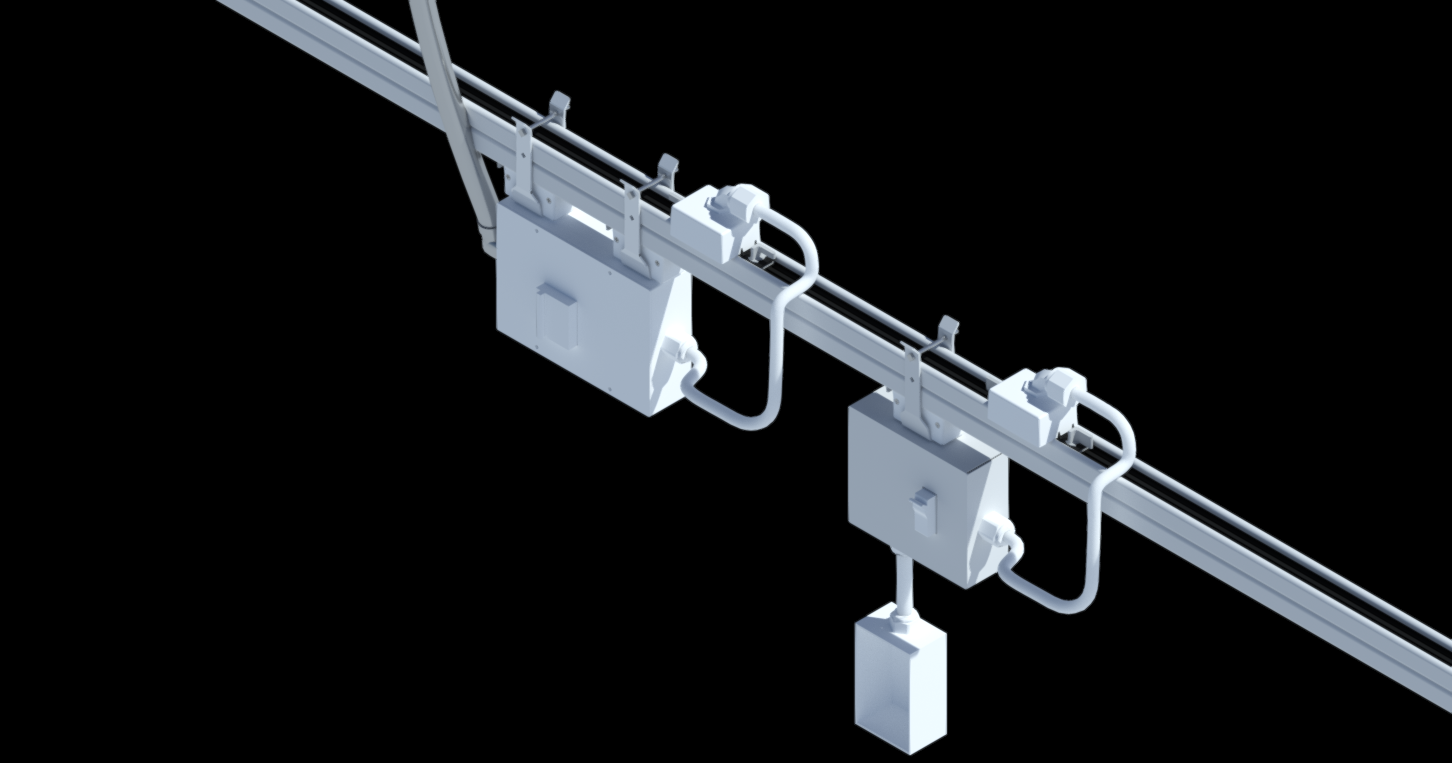

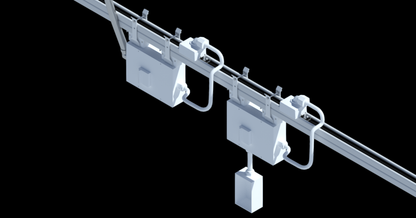

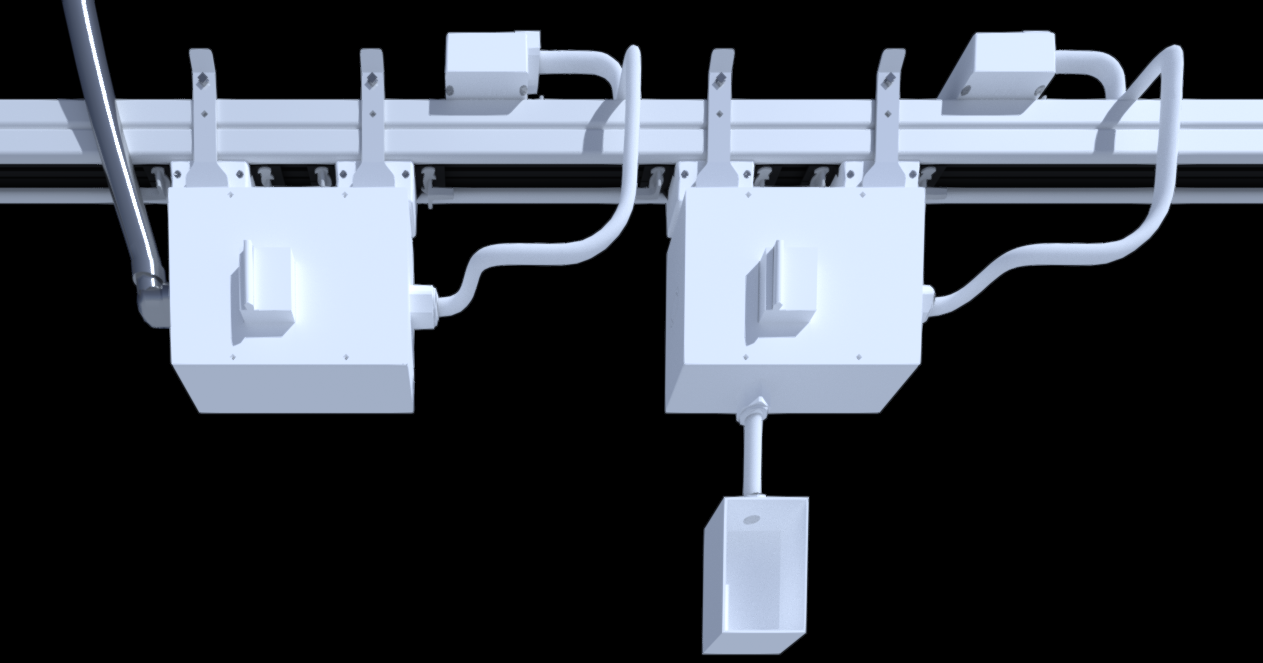

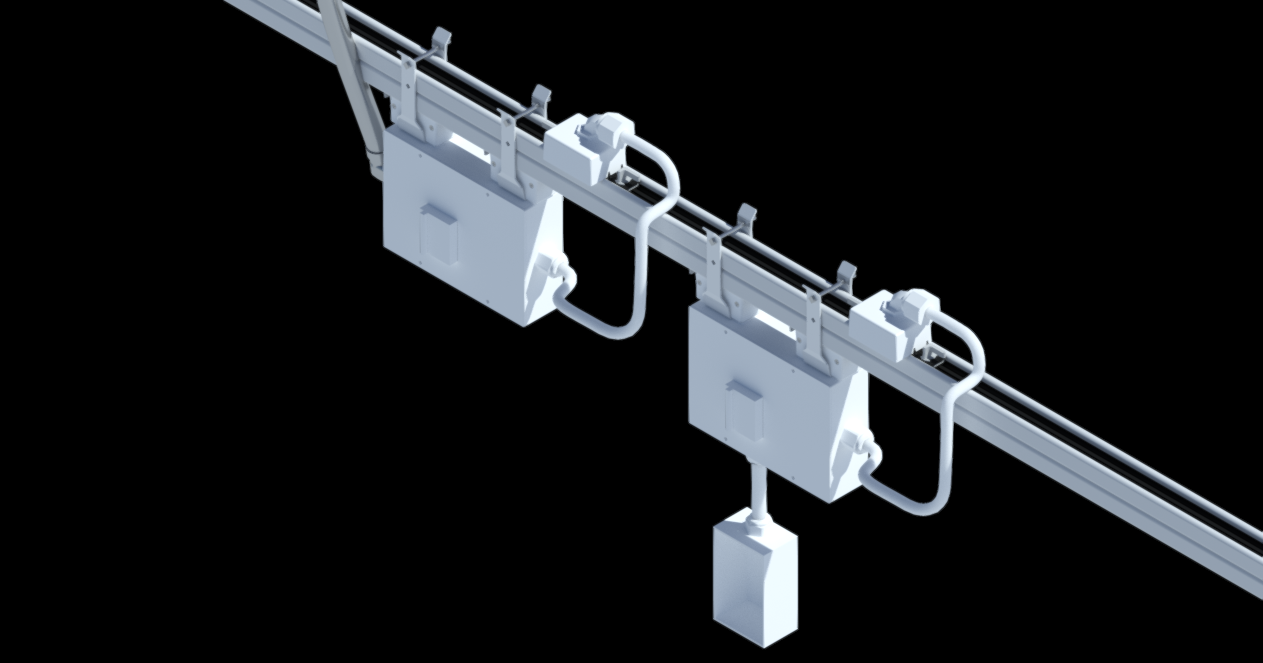

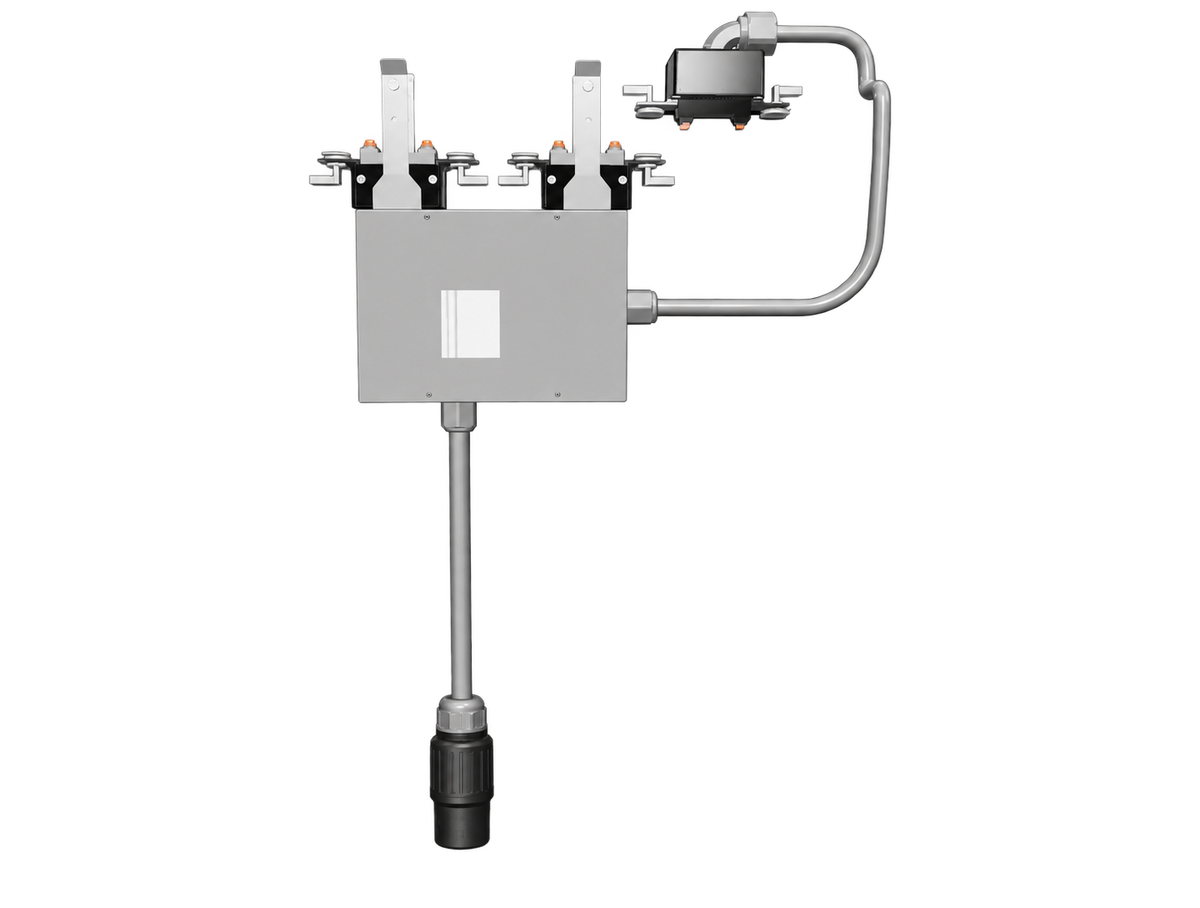

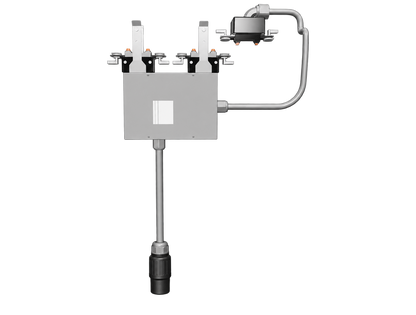

The 40A 3-Phase PowerDrop Cord brings three-phase power from overhead USA TrackBusway to equipment through a single female locking cord-end connector.
Choose L15 or L21 for 208V systems, or L16 or L22 for 480V systems. Each connector is supplied with a matched 20A or 30A, 3-pole circuit breaker. L21 and L22 include neutral; L15 and L16 do not.

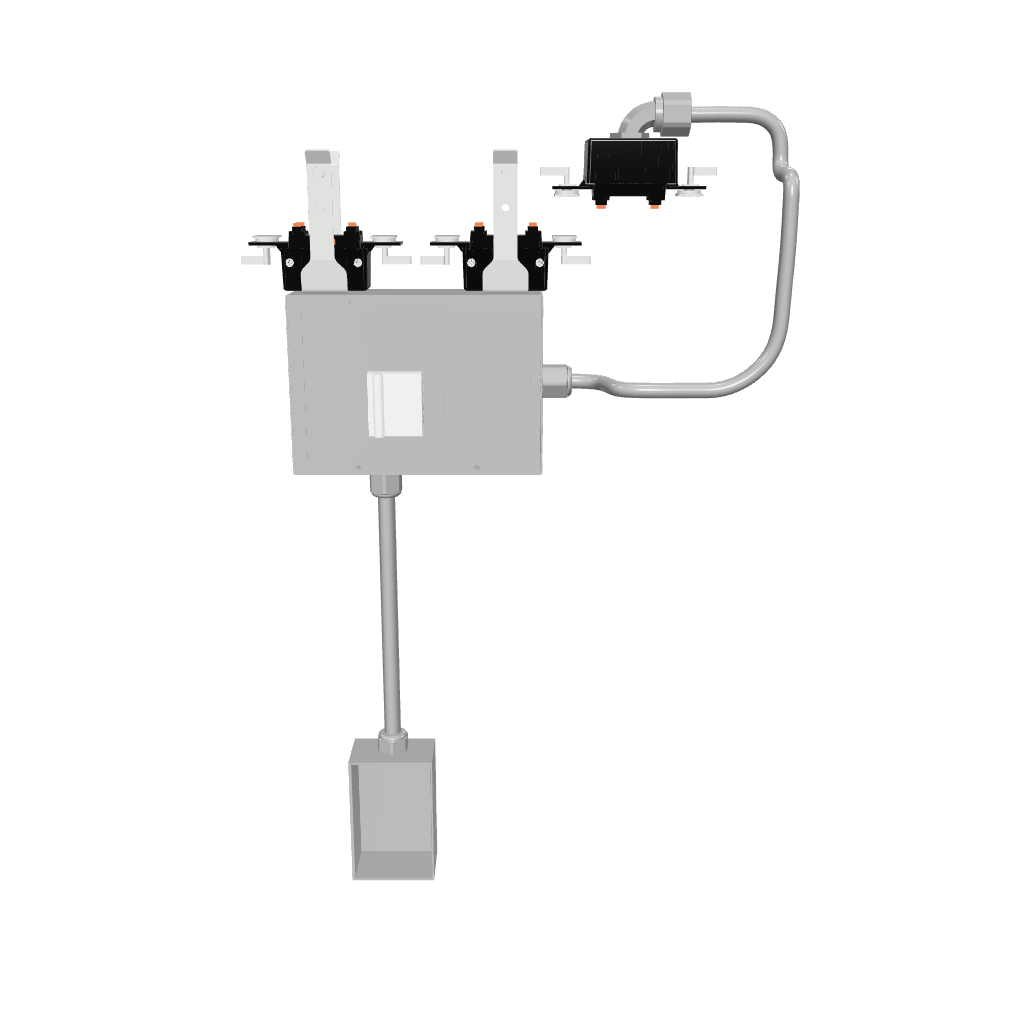

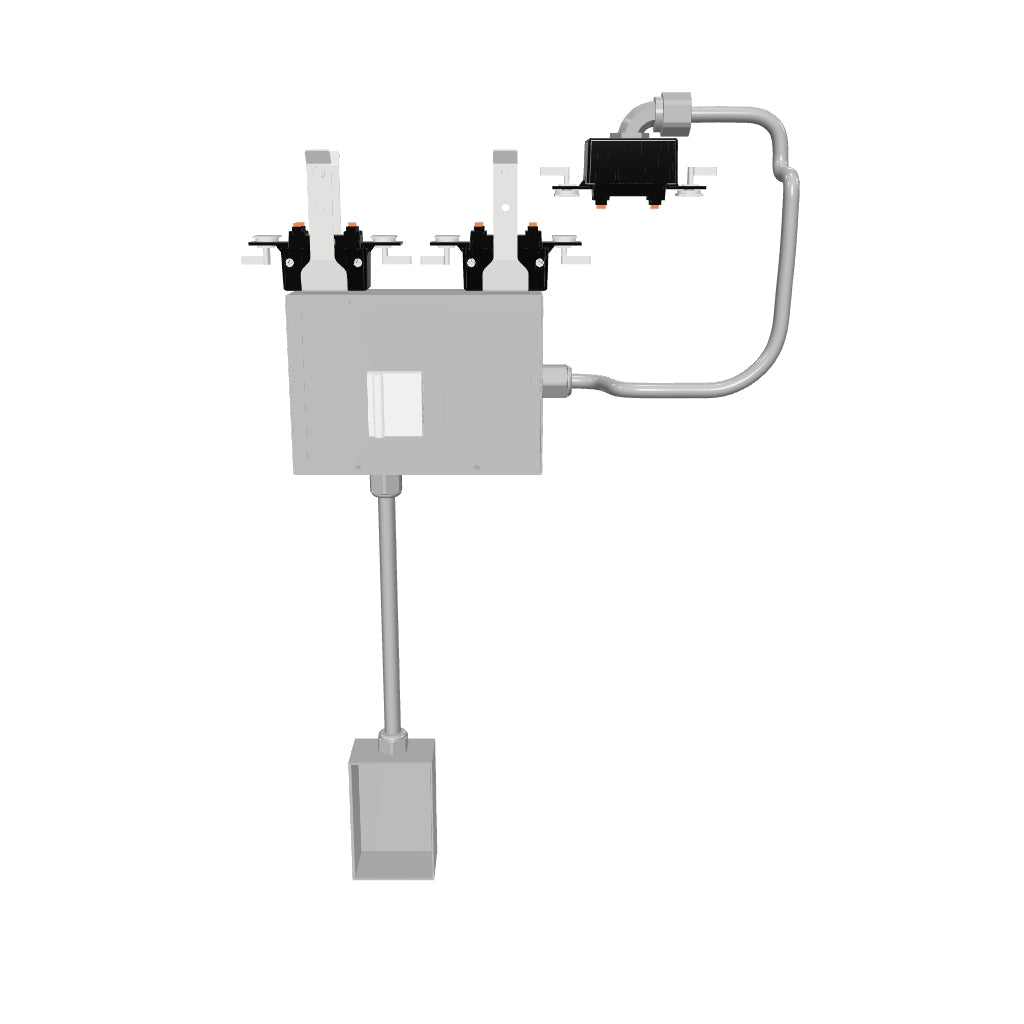

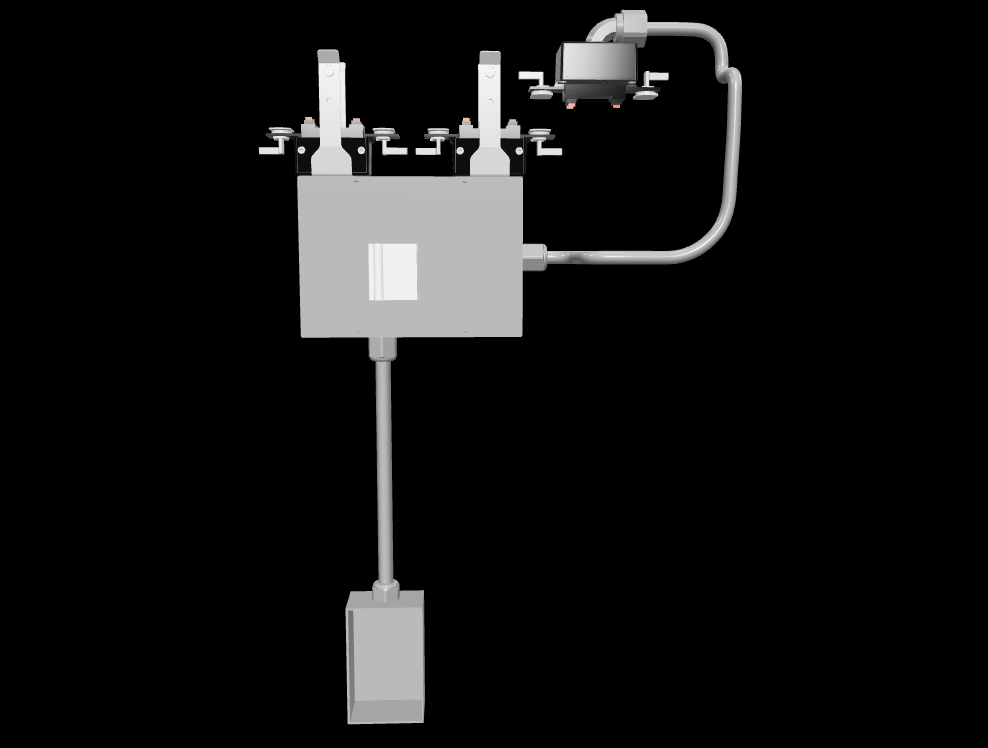

The assembly connects lower-deck phases A and B and upper-deck phase C through the included whip. Choose galvanized, black or white and specify cord length. Compare all eight connector configurations.
Catalogue #: MD40-4-208-CB20-DC-XX-L1520C-G
Couldn't load pickup availability
ETL Listed to UL 857 Busway Standards
For 40A Track Busway system models and configurations covered by the listing.
Technical Downloads

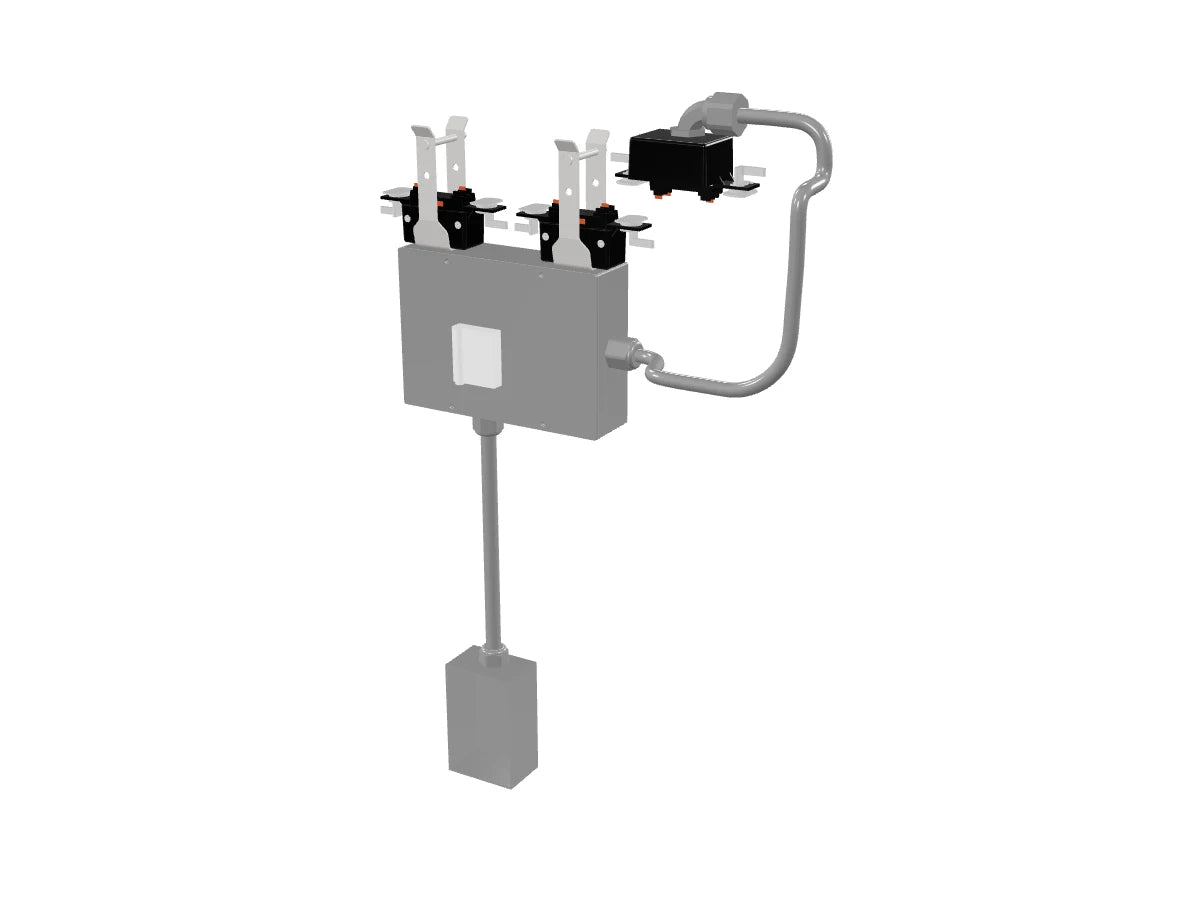

See 3-Phase PowerDrop Cord in Action
3-Phase PowerDrop Cord Wiring Diagrams

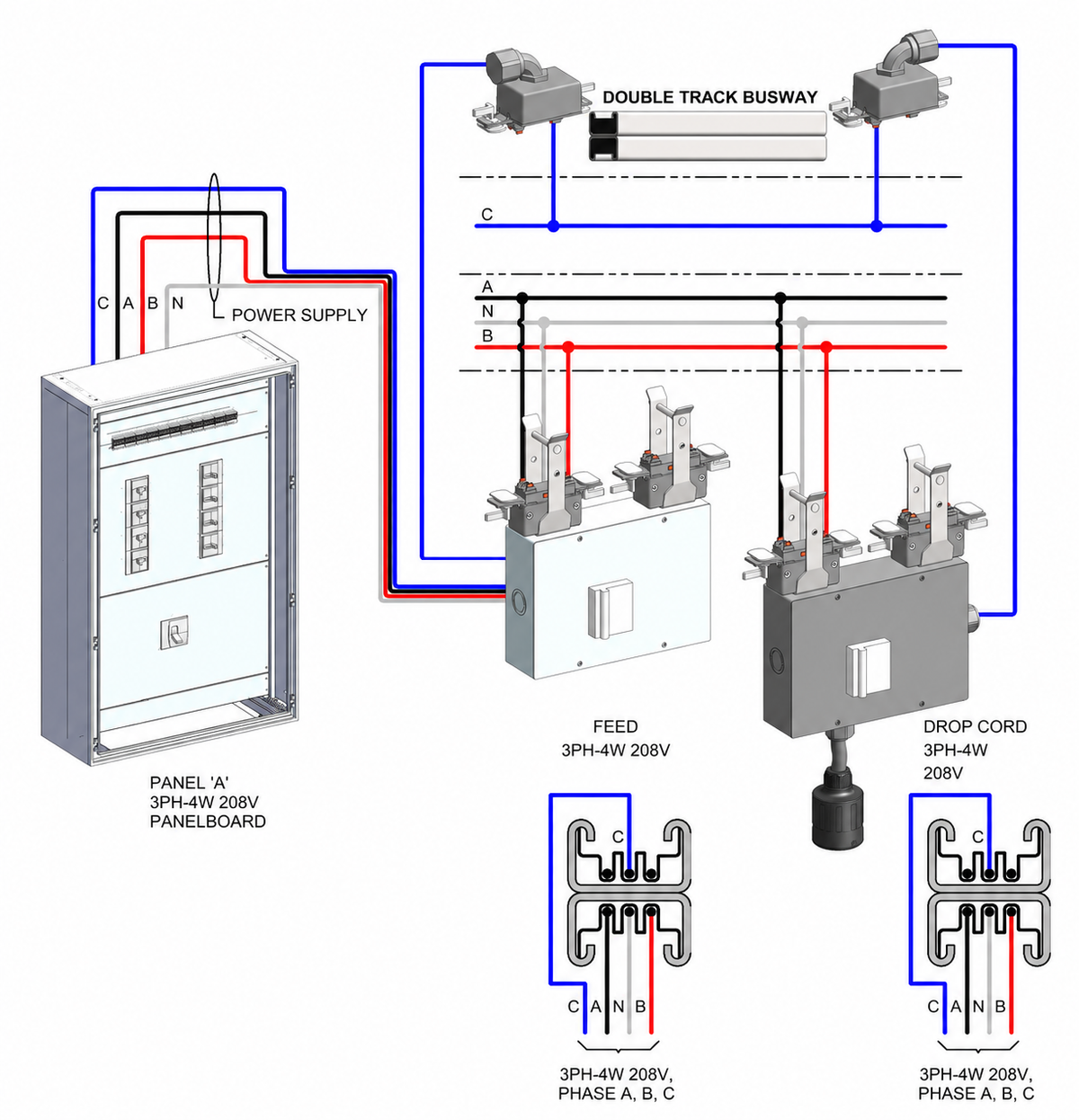

40A 3-Phase PowerDrop Wiring Diagram
This 208V system example shows the feed, lower-deck phases A and B, upper-deck phase C through the whip, and neutral (N). The selected cord connector determines whether neutral continues to the equipment. Choose the matching factory build for 480V systems; the diagram is a system connection reference.
Part of the 40A Track Busway System

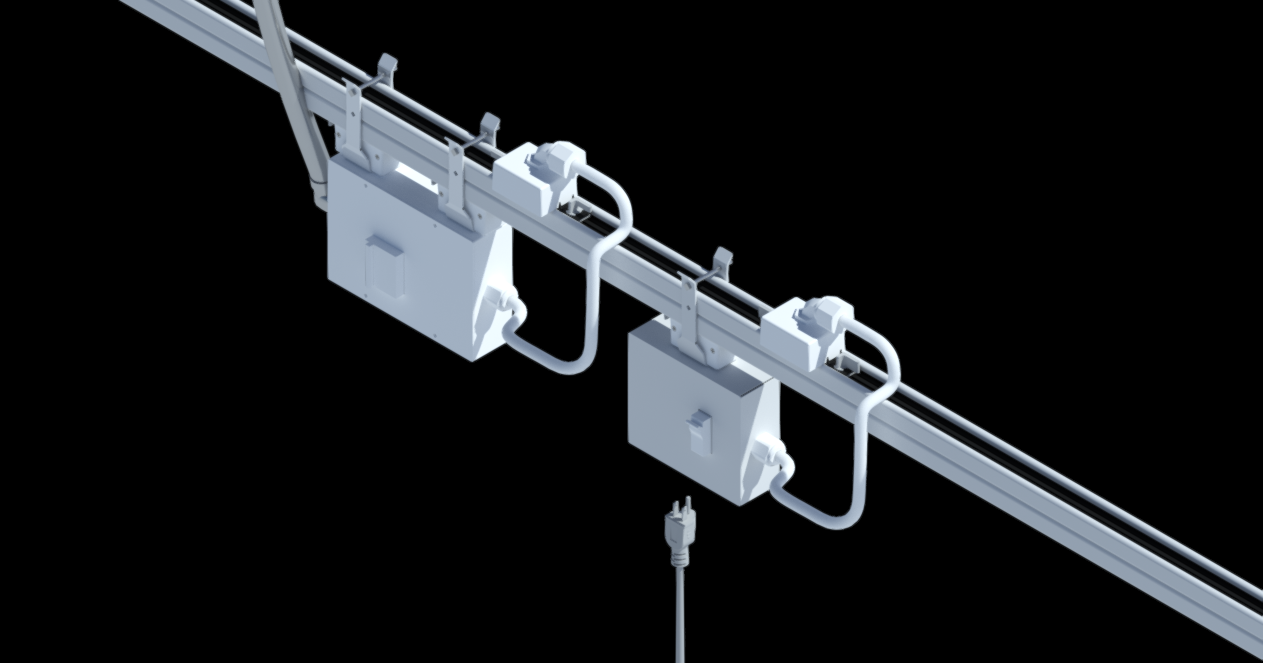

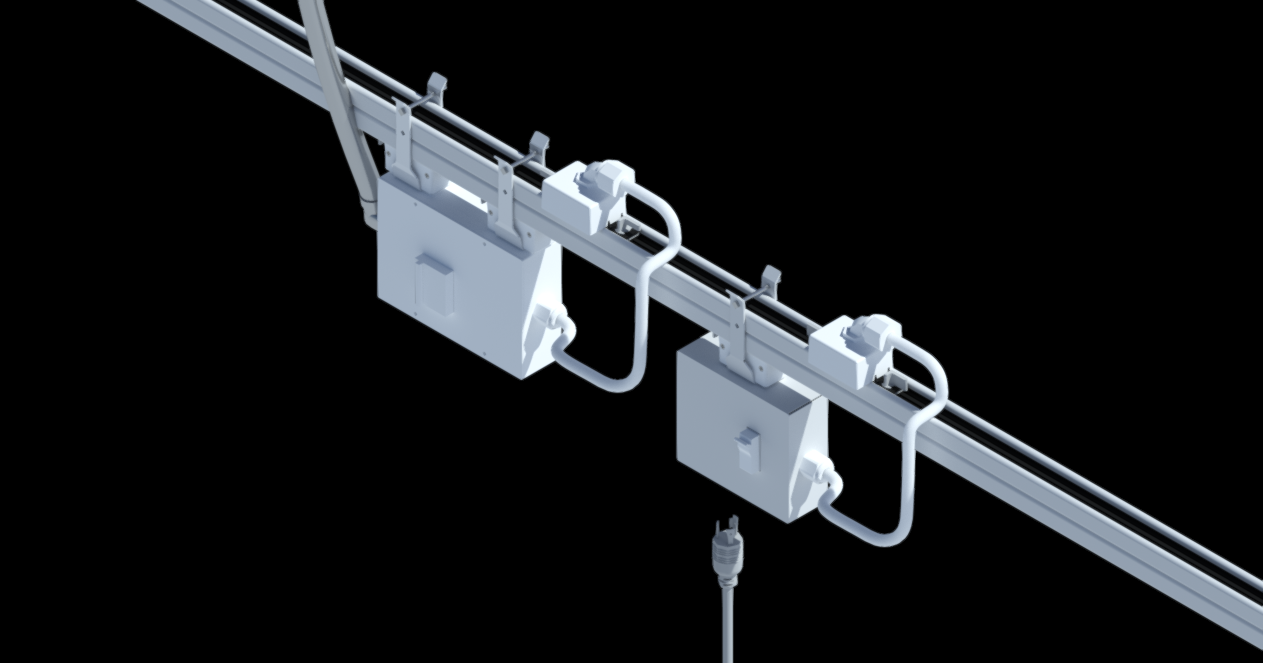

This breakered PowerDrop connects a compatible 40A Track Busway run to equipment below through a flexible cord. Build the supply path with 40A track busway lengths and the appropriate power feed.
Match the selected tap's voltage, phase connection and breaker rating to the supply and equipment. Use the Track Busway system design guide to plan the complete layout.
