40A Track Busway system
Single-Phase Track Busway Breakered Line Feed
Specifications
| Phase | Single-Phase |
|---|---|
| Voltage | 600V |
| Amperage | 20A / 40A |
| Pole Count | 2 phase poles (A + B) + neutral |
Interactive 3D Preview
Drag or use arrow keys to rotate. Scroll or pinch to zoom.

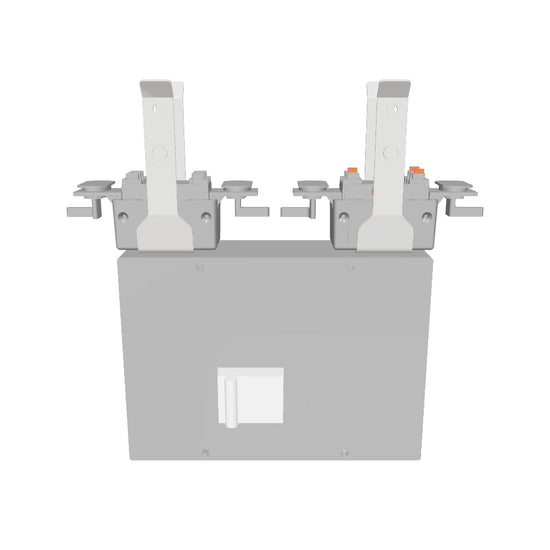

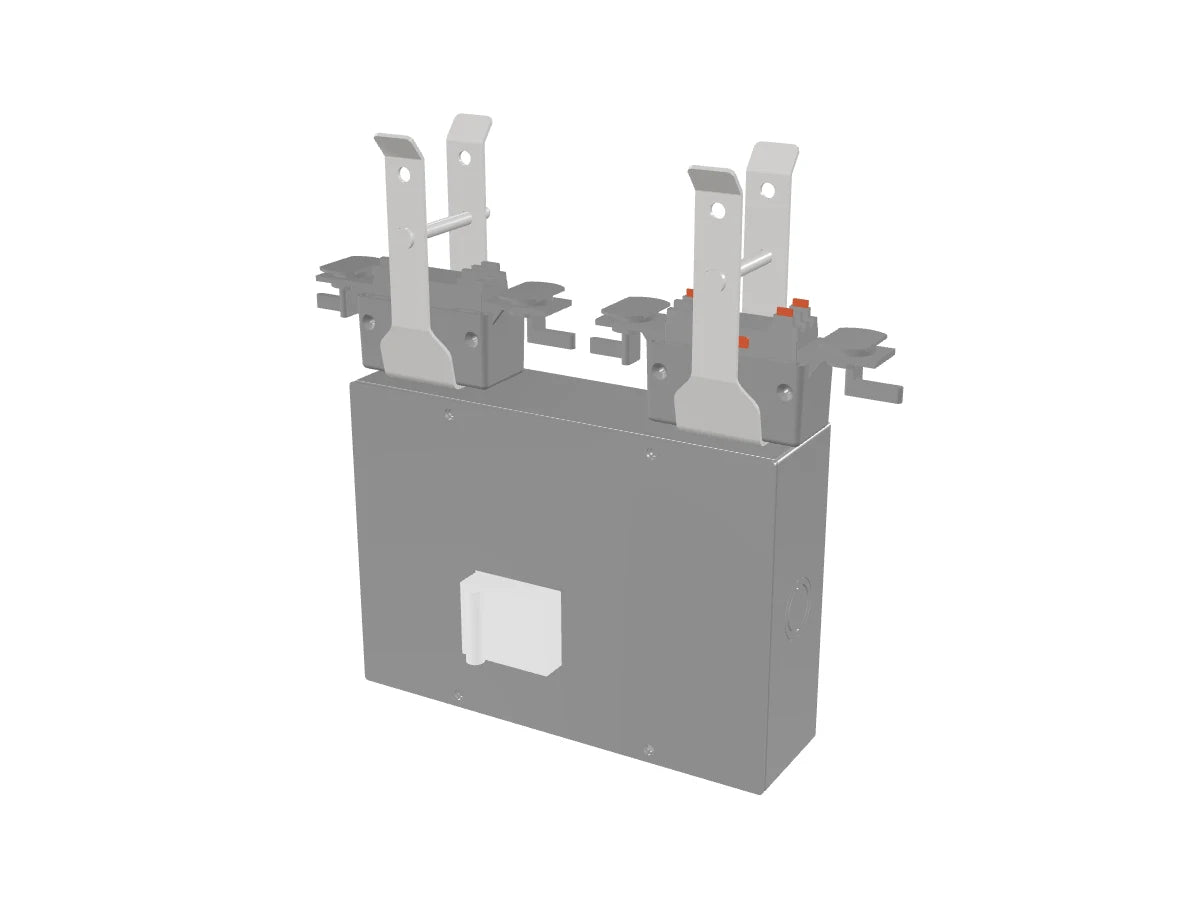

This single-phase breakered line feed brings facility power into a compatible 40A USA TrackBusway run. It supplies two phase poles, A and B, plus neutral on one deck, with factory-installed breakers for local control. The neutral is separate from the two protected phase poles; the fitter has three electrical contacts (A, B and neutral).
Choose a 20A or 40A breaker configuration and a galvanized, black or white finish. For the double-deck single-phase arrangement shown below, use two separate line feeds: one for each deck.
Catalogue #: P20-3-40-UNIV-CB20-G
ETL Listed to UL 857 Busway Standards
For 40A Track Busway system models and configurations covered by the listing.
Couldn't load pickup availability
Technical Downloads
Choosing your line feed
20A or 40A: Choose the breaker configuration required for your installation.
One deck: Use one feed to supply A, neutral and B.
Two decks: Use two separate single-phase feeds, one for each deck.
Compare the wiring diagrams below ↓Single-Phase Track Busway Breakered Line Feed Wiring Diagrams

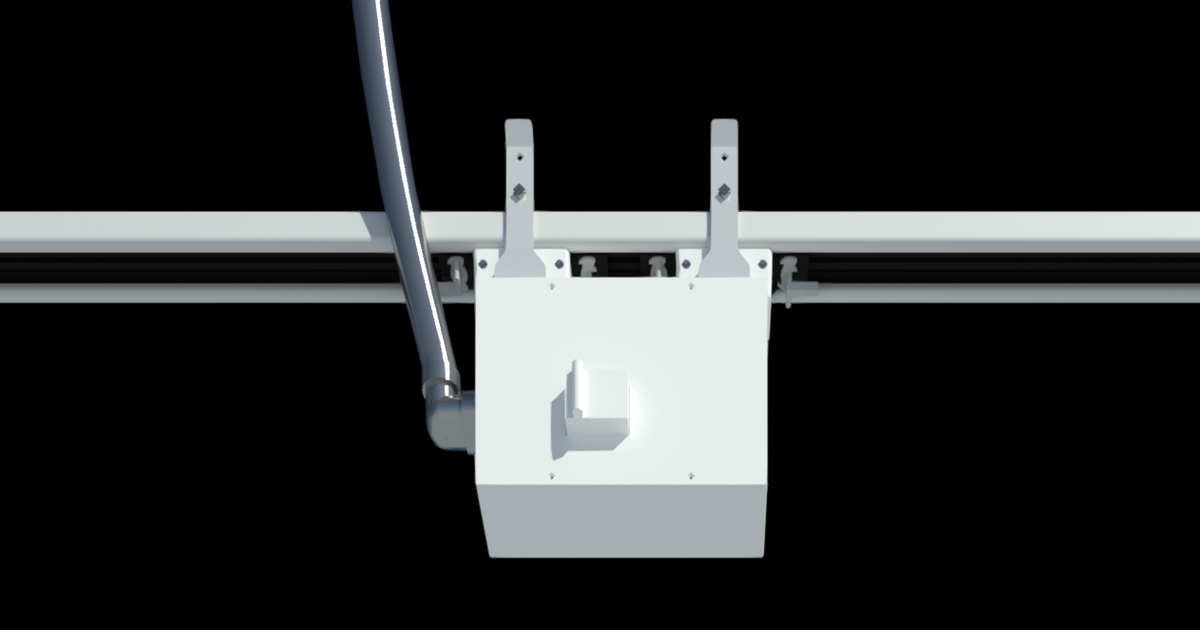

Single Deck: One Single-Phase Feed
One breakered line feed supplies A, neutral and B on a single deck. The illustration shows a 120/240V single-phase supply and the 40A-per-circuit version. Select the breaker rating required for the installation.
Double Deck: Two Separate Single-Phase Feeds
Two separate 40A line feeds supply the two decks independently, with A, neutral and B on each deck. This example uses A and B from a 208Y/120V supply: 208V between A and B, and 120V from either phase to neutral. This is a two-feed single-phase arrangement; it does not place C on the upper deck.
Part of the 40A Track Busway System
This breakered line feed connects the facility supply to a compatible 40A Track Busway run. Build the supply path with 40A track busway lengths and the appropriate power feed.
Match the feed's breaker rating and the busway configuration to the facility supply. Connect compatible power drops and outlet boxes along the run. Use the Track Busway system design guide to plan the complete layout.
Simplify Overhead Power
Track Busway transforms open ceiling spaces with an innovative system that eliminates traditional overhead power structures, simplifying installations while maximizing flexibility.
Pre-Wired Power Infrastructure: Deliver branch-circuit power exactly where it’s needed using pre-wired Track Busway lengths. Power drops can be added, moved, or reconfigured without rewiring to support evolving layouts.
Plug-and-Play Power Access: Tool-free, plug-in power taps with multiple receptacle options provide fast, reliable access to overhead power while maintaining code-compliant distribution.
Overhead Power DistributionExplore Applications & Projects Track Busway is a scalable, adaptable overhead power distribution solution designed to support changing equipment layouts and long-term system growth.
