40A Track Busway system
208V-1Ph PowerDrop Cord
Specifications
| Phase | Single-Phase |
|---|---|
| Voltage | 208 |
| Amperage | 15A / 20A / 30A |
| Pole Count | 2 |
| NEMA | L6-15, L6-20, 6-20R, L6-30 |

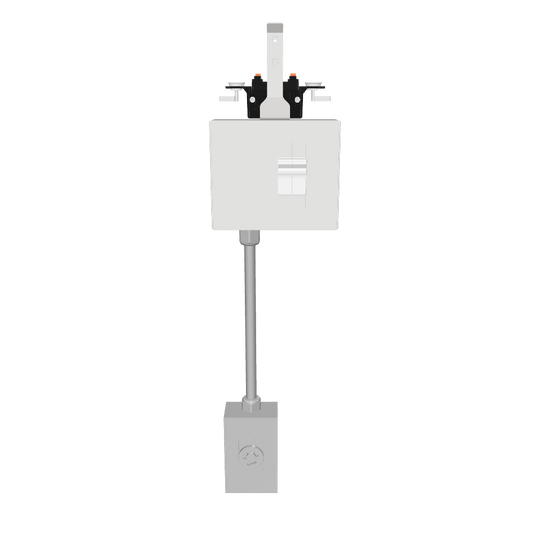

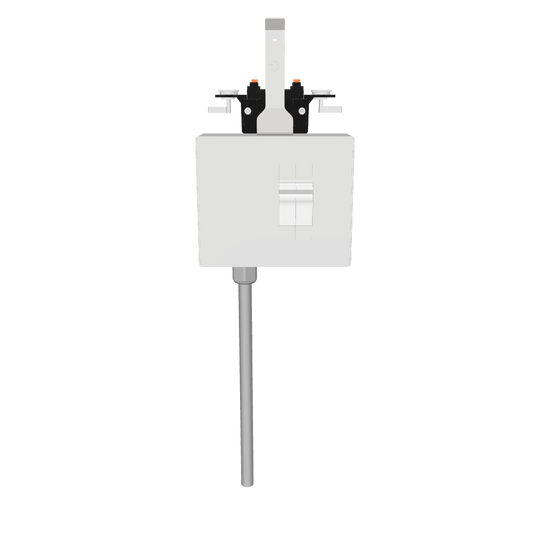

The 208V PowerDrop Cord delivers single-phase branch power from a compatible 40A USA TrackBusway system through a 2-pole breaker and flexible drop cord.
Choose a finished L6-15 or L6-20 locking connection, or a 6-20 straight-blade connection. Galvanized, black and white finishes are available. The displayed price and SKU reflect your selection.
Catalogue #: MD40-3-208-CB15-DC-XX-ST-G
Couldn't load pickup availability
ETL Listed to UL 857 Busway Standards
For 40A Track Busway system models and configurations covered by the listing.
Technical Downloads
Choosing your phase connection
A and B - Standard: Connect to lower-deck phases A and B.
B and C - Whip: Connect to lower-deck B and upper-deck C with the included whip.
Both supply 208V between phases. Whip-version SKUs end in -WP.
Compare the wiring diagrams below ↓208V-1Ph PowerDrop Cord Wiring Diagrams
Standard Wiring: A and B
The illustrated single-deck connection uses phases A and B from a 208Y/120V supply. The standard version also accesses A and B on the lower deck of a double-deck three-phase 40A system. Both phases feed the 2-pole breaker; this 208V branch does not use neutral.
Double-Deck Wiring: B and C with Whip
The whip connection takes phase B from the lower deck and phase C from the upper deck. Both phases pass through the 2-pole breaker to supply 208V line-to-line; the part number ends in -WP.
Part of the 40A Track Busway System

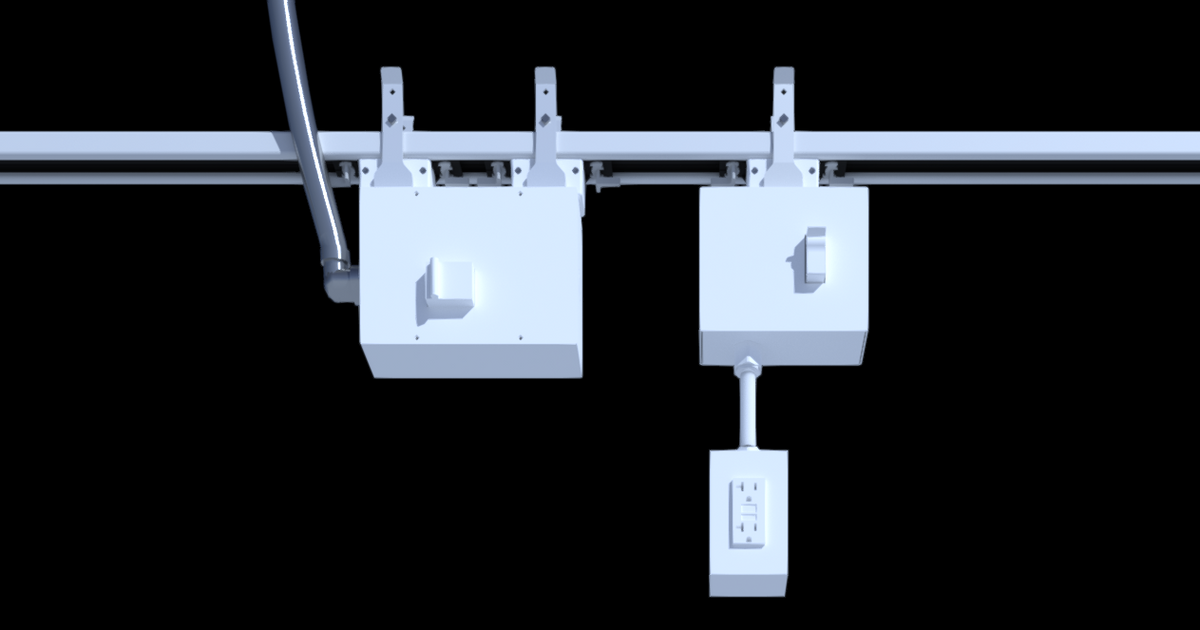

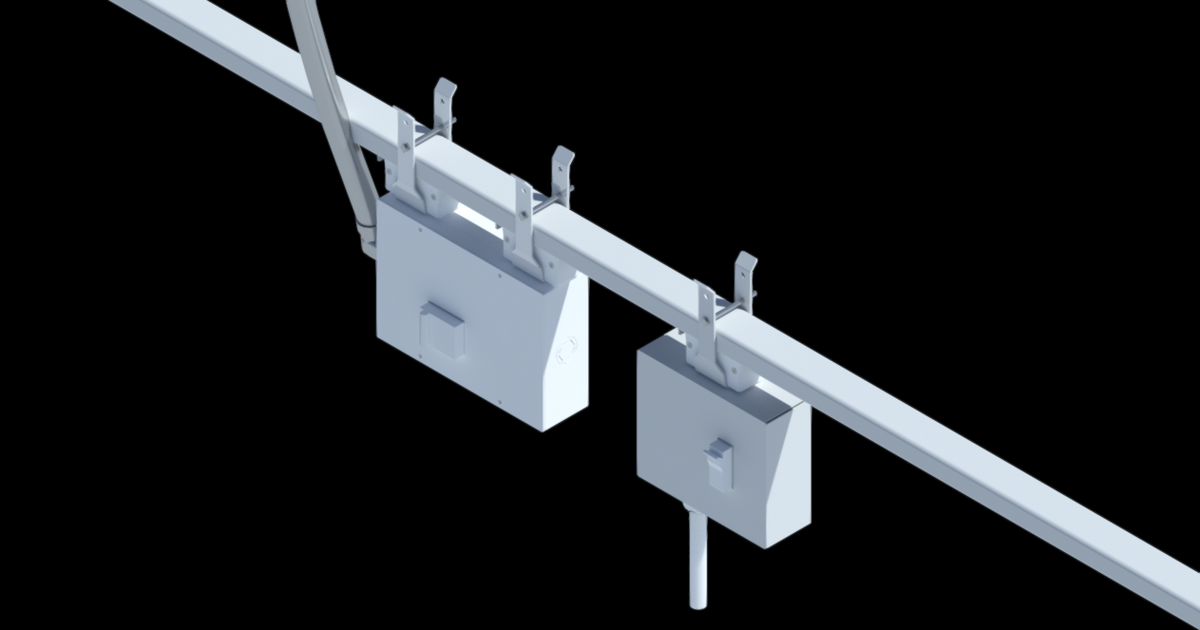

This breakered PowerDrop connects a compatible 40A Track Busway run to equipment below through a flexible cord. Build the supply path with 40A track busway lengths and the appropriate power feed.
Match the selected tap's voltage, phase connection and breaker rating to the supply and equipment. Use the Track Busway system design guide to plan the complete layout.
Simplify Overhead Power
Track Busway transforms open ceiling spaces with an innovative system that eliminates traditional overhead power structures, simplifying installations while maximizing flexibility.
Pre-Wired Power Infrastructure: Deliver branch-circuit power exactly where it’s needed using pre-wired Track Busway lengths. Power drops can be added, moved, or reconfigured without rewiring to support evolving layouts.
Plug-and-Play Power Access: Tool-free, plug-in power taps with multiple receptacle options provide fast, reliable access to overhead power while maintaining code-compliant distribution.
Overhead Power DistributionExplore Applications & Projects Track Busway is a scalable, adaptable overhead power distribution solution designed to support changing equipment layouts and long-term system growth.
