Plug-In Busway Systems: Fixed Tap-Off vs Open-Slot Access
Plug-in busway is an electrical power-distribution system that carries power through insulated busbars or conductors inside a protective housing and provides approved connection points along the run for compatible plug-in devices. Traditional systems commonly use fixed tap-off windows; USA TrackBusway is a continuous open-slot form of plug-in busway.
How Plug-In Busway Works
Plug-in busway is an electrical power-distribution system that carries power through insulated busbars or conductors inside a protective housing and provides approved connection points along the run for compatible plug-in devices. Traditional systems commonly use fixed tap-off windows; USA TrackBusway is a continuous open-slot form of plug-in busway.
Fixed-Window Plug-In Busway vs Continuous Open-Slot Access
The principal difference between these access styles is where compatible plug-in devices can connect to the busway.
-
Fixed-Window Plug-In Busway
Traditional fixed-window plug-in busway provides factory-positioned tap-off openings along the run. Each compatible bus plug or tap-off unit must align with an available opening. This can suit stable layouts where equipment, racks, benches, or fixtures are planned around known connection points.
-

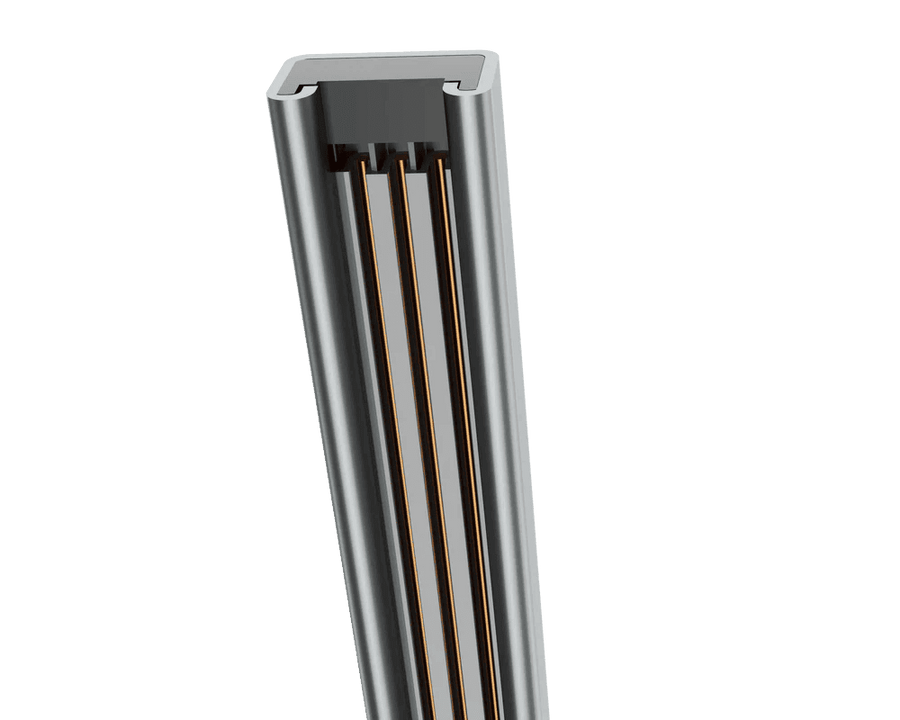

Continuous Open-Slot Track Busway
USA TrackBusway provides continuous open-slot access along the run. Compatible power drops, outlet boxes, and tap-off units can be positioned where the approved system design requires power instead of only at factory-set windows. Component compatibility, system listing, electrical code, load calculations, and project-design requirements still apply.
Fixed-window access may be appropriate when equipment locations are stable. Continuous open-slot access may provide more placement flexibility when equipment, benches, fixtures, racks, or workstations are expected to move or expand.
Plug-In Busway System Components
A plug-in busway system is built from busway runs or track sections, insulated busbars or conductors, feed units, joiners, suspension hardware, end caps or closure accessories, and approved plug-in devices. In USA TrackBuswayβs catalog, those plug-in devices may include power drops, outlet boxes, tap-off units, lighting connections, and system-specific accessories.
Bus Plugs, Tap-Off Units, and Selection Factors

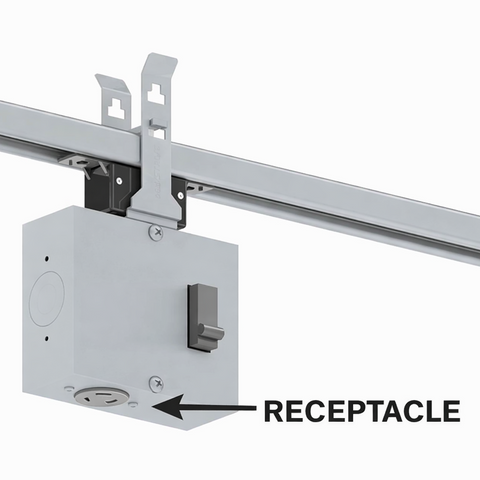

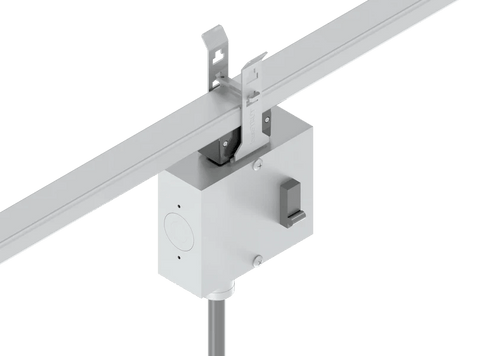

A bus plug or tap-off unit is a system-specific device that connects to compatible plug-in busway and provides an output or equipment connection. Depending on the system, the device may include a breaker, receptacle, cord drop, outlet box, or another approved connection arrangement.
Bus plugs and tap-off units are not universally interchangeable. Confirm all of the following before selecting a busway system or plug-in device:
- Access style: Confirm whether the project requires fixed tap-off windows or continuous open-slot access.
- System compatibility: Confirm that the busway, feed, tap-off unit, outlet box, power drop, and other components belong to the approved system family.
- Electrical configuration: Confirm voltage, amperage, phase, receptacle or output type, and breaker requirements.
- Feed and load planning: Confirm feed locations, run length, conductor configuration, calculated loads, and applicable voltage-drop requirements.
- Project requirements: Confirm the product listing, manufacturer documentation, electrical-code requirements, and approved project design.
Final system selection, installation, relocation, and energization must follow the listed product documentation and project drawings and must be performed by qualified personnel.
Benefits and When Continuous-Access Track Busway Fits
Plug-in busway provides a distribution backbone with multiple approved connection points along the run. Depending on the system and project design, compatible plug-in devices may make equipment additions or layout changes easier to accommodate without routing every connection from a distant distribution point.
- Point-of-use power near equipment, racks, benches, fixtures, or workstations
- Overhead routing that can reduce floor-level cable clutter
- Multiple approved connection points along a busway run
- System planning around the required feeds, plug-in devices, voltage, phase, and calculated loads
- The ability to add or reposition compatible devices when permitted by the approved system design and procedures
Fixed-window plug-in busway can fit layouts with stable equipment locations and known tap points. Continuous-access Track Busway can fit facilities where equipment, benches, racks, fixtures, or workstations may move as operations change. Neither access style removes the need for component compatibility, load calculations, electrical-code compliance, or qualified electrical work.
Where Plug-In Busway Is Used
Plug-in busway is used where equipment, workstations, racks, fixtures, or changing layouts need power at multiple points along a distribution run.
Common applications include:
- Data centers and mission-critical spaces: Rack rows, support equipment, test areas, colocation suites, AI/HPC layouts, and phased equipment growth.
- Manufacturing and industrial areas: Machinery rows, robotics cells, work cells, 3-phase equipment, 120V tools, and changing production layouts.
- Laboratories: Flexible benches, instruments, pilot production areas, and overhead power drops for changing lab layouts.
- Offices and studios: Open ceilings, changing workstation layouts, lighting, equipment power, and overhead receptacle access.
- Retail and commercial spaces: Displays, seasonal layouts, lighting, and flexible point-of-use power.
- Automotive and testing environments: Assembly lines, bays, automation cells, tools, and testing equipment zones.
USA TrackBusway System and Product Options
USA TrackBusway offers continuous open-slot systems and compatible components for flexible overhead power distribution. Select the system family, feed arrangement, and plug-in devices only after the projectβs electrical configuration, calculated loads, equipment layout, and compatibility requirements have been confirmed.
-
40A Track Busway
For flexible overhead power layouts.
View 40A Track Busway β -
225A Track Busway
For higher-capacity power layouts.
View 225A Track Busway β -
FEEDs
For bringing power into the Track Busway run.
View FEEDs β -
POWER Plug-Ins
For outlet boxes, drop cords, and tap-off units.
View POWER Plug-Ins β
Explore Open-Slot Track Busway
USA TrackBusway provides open-slot plug-in busway systems for flexible overhead power distribution in industrial, commercial, laboratory, and data center projects.
Frequently Asked Questions
Plug-in bus duct is often used informally to describe plug-in busway. The important distinction is the access style: many traditional plug-in busway systems use fixed tap-off windows, while open-slot Track Busway provides continuous access for compatible plug-in devices along the run.
Plug-in busway is an electrical busway system that carries power through enclosed busbars and lets approved plug-in units or tap-off devices connect along the run. Depending on the system, those devices may include tap-off boxes, outlet boxes, power drops, fused devices, or breaker-equipped units.
Fixed tap-off windows are preset openings where plug-in units must connect. Continuous open-slot access lets compatible devices be positioned along the busway run instead of only at those preset windows.
Open-slot Track Busway is a better fit when equipment, benches, fixtures, racks, workstations, or production layouts may change. It lets teams add, move, or reposition compatible power drops and outlet boxes with less new conduit or rewiring.
Compatible devices include Track Busway power drops, outlet boxes, tap-off units, feeds, and other system-specific plug-in components. Device selection depends on the Track Busway system, voltage, amperage, receptacle type, and project layout.
No. Feeder busway is typically used to carry power from one point to another. Plug-in busway is designed to provide approved plug-in access along the run through bus plugs, tap-off units, outlet boxes, power drops, or similar devices.
A bus plug is a plug-in device used with some busway systems to connect to the busway and provide a protected output or equipment connection. In USA TrackBusway terminology, similar point-of-use devices may be described as tap-off units, power drops, outlet boxes, or plug-in units depending on the system and application.
