T225 2-Pole Breakered Drop Cord Tap-Off Unit

Name: T225 2-Pole Breakered Drop Cord Tap-Off Unit
Brand: USA TrackBusway
SKU: T225-C-10-DCXX-L1420-G
Price: 845.0 USD
Availability: InStock

1 2

Specifications

System	T225 Track Busway (up to 225A per phase)
Phase	Single-phase / 2-pole power distribution
Voltage	208V, 208Δ, 480Δ
Amperage	20A / 30A / 60A
Pole Count	2PNG and 2PG
NEMA	L14-20R, IGL14-20R, L14-30R, IG14-30R, 14-60R, L6-20R, IGL6-20R, L6-30R, IGL6-30R, 360R6W, L8-20R, L8-30R, 360R7W

See T225 2-Pole Breakered Drop Cord Tap-Off Unit in Action

Watch how this product installs, connects, or configures with the Track Busway system

For additional installation scenarios, configuration examples, and system overviews, visit the Track Busway Video Library →

Watch the dedicated PowerDrops plug-in power video →

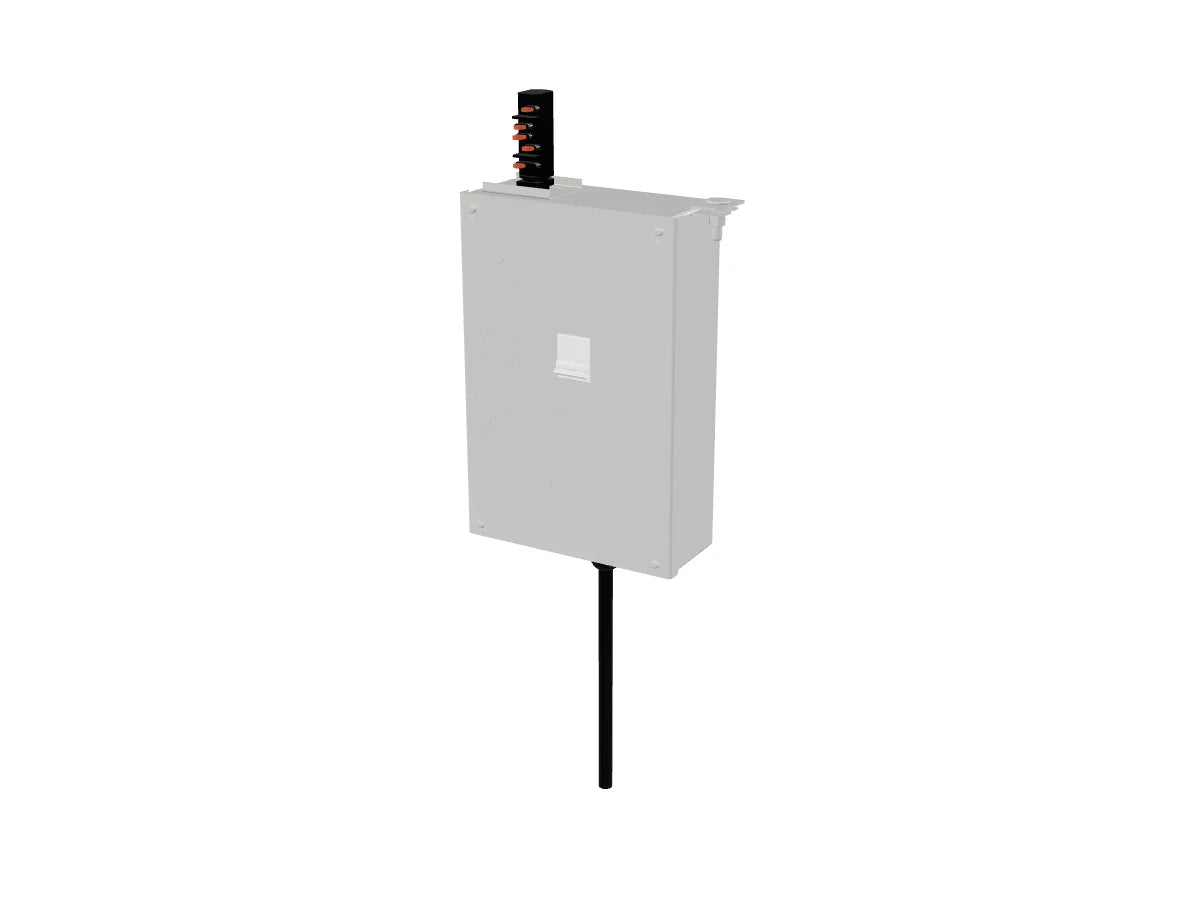

Interactive 3D Preview

Drag or use arrow keys to rotate. Scroll or pinch to zoom.

1 2

USA TrackBusway

$815.00 USD – $2,155.00 USD

Catalogue # (SKU): Select configuration

Select a configuration to view its exact price and data sheet.

Standard ground and isolated ground (IG)

Standard ground: Use only where listed for the selected interface and build.
Isolated ground (IG): Use only where listed for the selected interface and build. An IG option is not a substitute for equipment ground.

An IG option label does not establish internal bonding, conductor routing or complete assembly suitability.

Compare receptacle options Understand critical power monitoring (CPM)

Use JavaScript to select a configuration and purchase this product. The family guide is available below, and you can contact us for a configuration-specific sheet.

Technical Downloads for This Configuration

Download Complete Product Family Technical Guide (PDF)

Request a STEP Model

Download 225A Track Busway Installation, Operation & Maintenance Manual (PDF)

Revision 1 · August 1, 2026 · 3 sheets
Download Revit 2023 Family (.RFA) – T225 2-Pole Breakered Drop Cord Tap-Off Unit

One representative coordination type: T225-C-10-DCXX-L1420-G. Confirm the selected configuration for your project.

Looking for more technical assets?

Visit our Track Busway technical resources page .

Ships from Ohio in 8 to 12 weeks

These protected 2-pole drop cord units plug into the USA TrackBusway T225 system to provide line-to-line branch power from the overhead busway run. They are designed for compatible NEMA receptacle configurations up to 60A, including 208V, 240V, or 480V single-phase loads.

PT225 Tap-Off Certification

The PT225 family includes cETLus Listed tap-off configurations for the T225 continuous plug-in busway system, evaluated by Intertek to UL 857 and CSA C22.2 No. 27.

Intertek Control No. 5011082. Intertek Report No. 106508638CRT-001.

Depending on the selected configuration, C (Compact) enclosure units support up to two drop cords, while S (Standard) enclosure units support up to three drop cords. Total connected drop-cord load cannot exceed 60A per phase across the tap-off unit. Compact and standard enclosure options are available based on receptacle count, breaker type, and whether monitoring features are selected.

Integrated MCB, MCCB, or CubeFuse overcurrent protection is available by configuration. Critical power monitoring options, including Schneider Electric PM5000-series or HDPM6000-based monitoring, may be added where project visibility or metering is required. Isolated ground receptacles are available when specified; otherwise, units are supplied with standard equipment grounding through the enclosure and housing ground.

Units ship factory assembled and ready for installation, with secure attachment to the Track Busway slot using one or two mounting tabs depending on enclosure size.

View full details

T225 2-Pole Drop Cord Technical Selection

Electrical selection

Choose 208V single-phase with two line conductors and neutral, 208V single-phase line-to-line without neutral, or 480V single-phase line-to-line without neutral. A two-pole branch uses two line conductors; a neutral is included only in the selected neutral-bearing arrangement.

Documented standard-interface branch selections include 20A, 30A. Standard and isolated grounding choices apply only where listed for the selected interface and build. Device pole/wire counts and nominal device ratings are distinct from breaker pole counts and selected supply voltage.

Compare Receptacle Options

NEMA L6-20R female interface reference — NEMA L6-20R — female interface reference

NEMA L8-20R female interface reference — NEMA L8-20R — female interface reference

Interface examples only; not finished tap-off assemblies or a supplier or assembly-rating claim.

Receptacle reference and selected supply
Interface	Nominal device rating	Selected supply application	Style
L14-20R	20A; 125/250V AC	208V single-phase, two line conductors and neutral	Locking
L14-30R	30A; 125/250V AC	208V single-phase, two line conductors and neutral	Locking
L6-20R	20A; 250V	208V single-phase, line-to-line, without neutral	Locking
L6-30R	30A; 250V	208V single-phase, line-to-line, without neutral	Locking
L8-20R	20A; 480V AC	480V single-phase, line-to-line, without neutral	Locking
L8-30R	30A; 480V AC	480V single-phase, line-to-line, without neutral	Locking

Enclosure and output arrangement

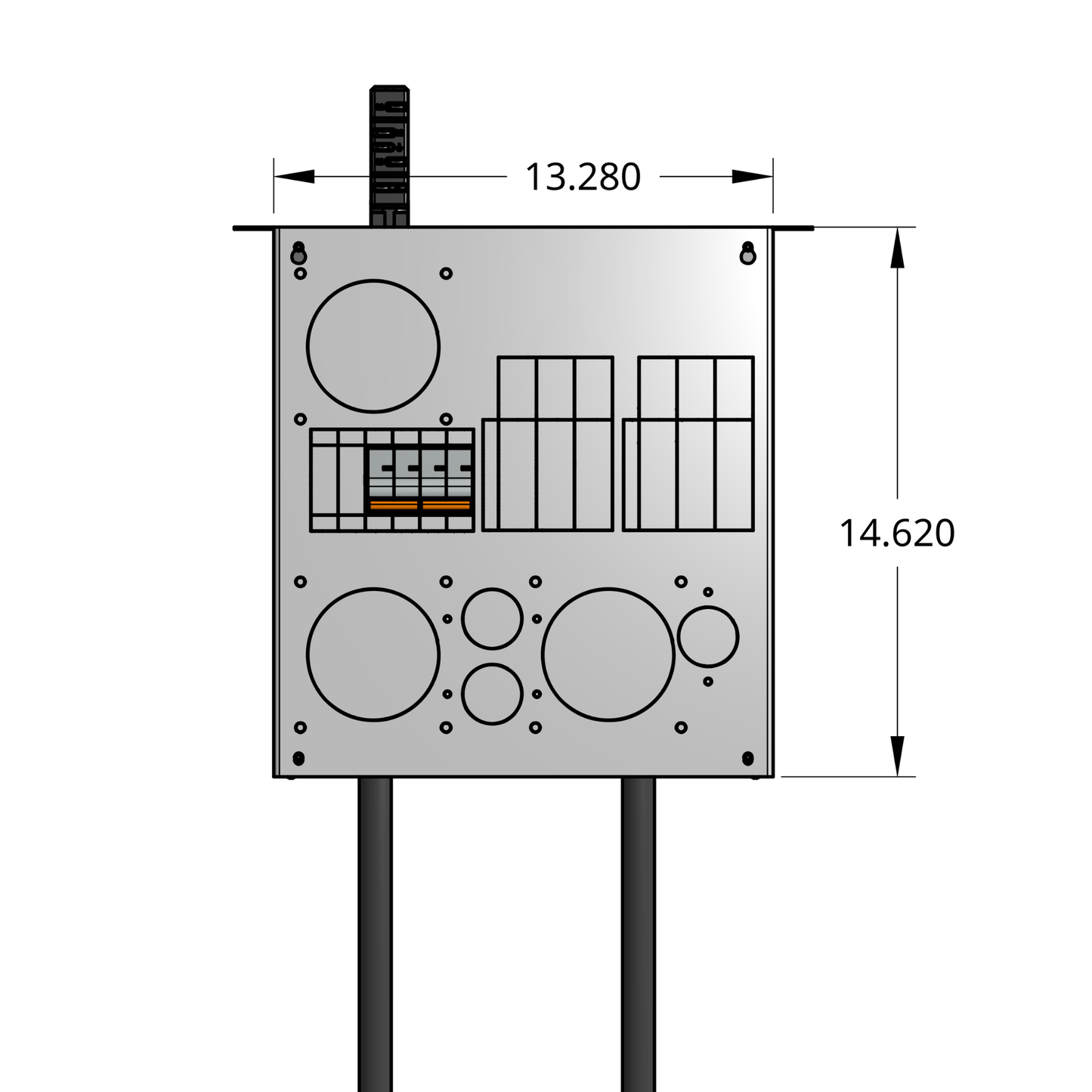

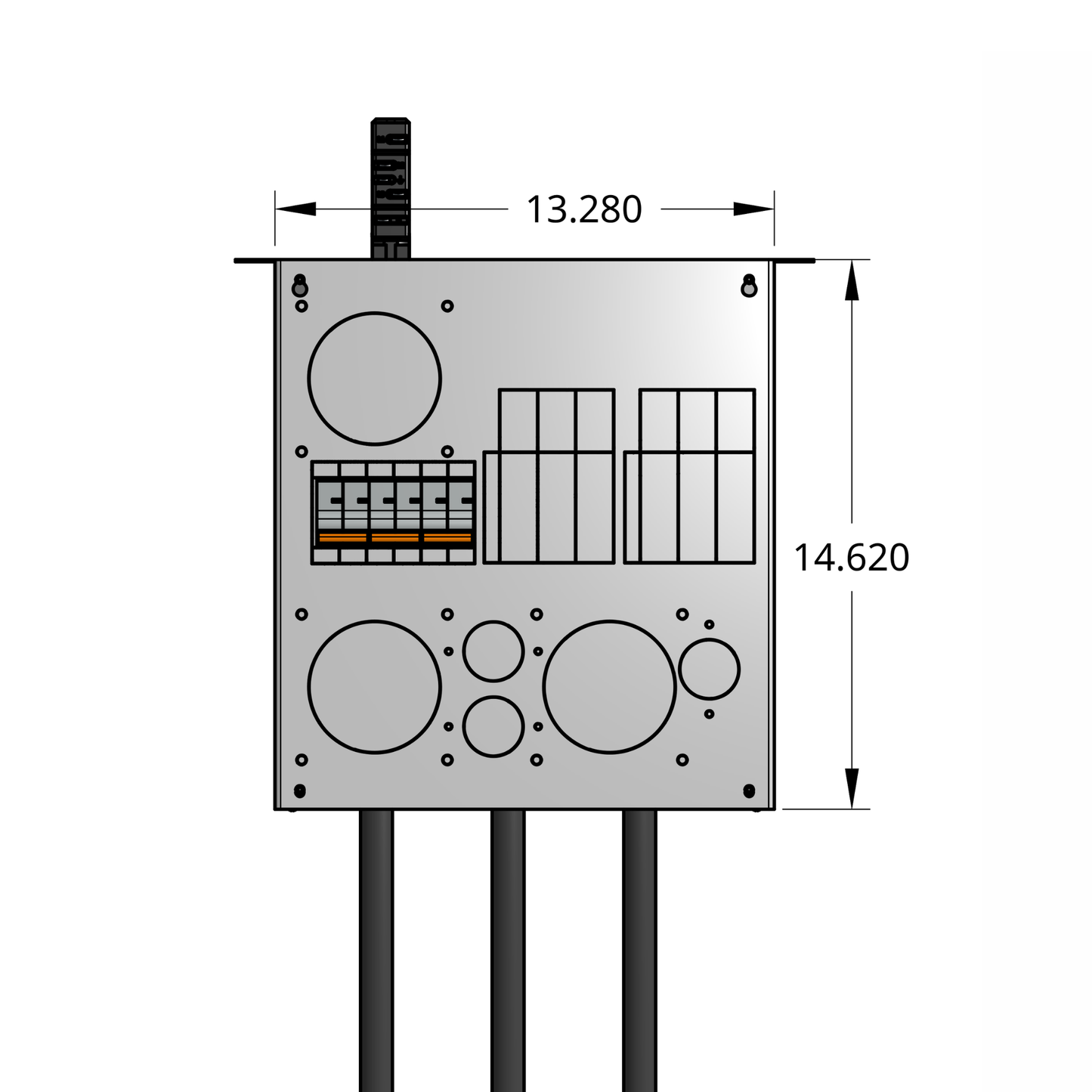

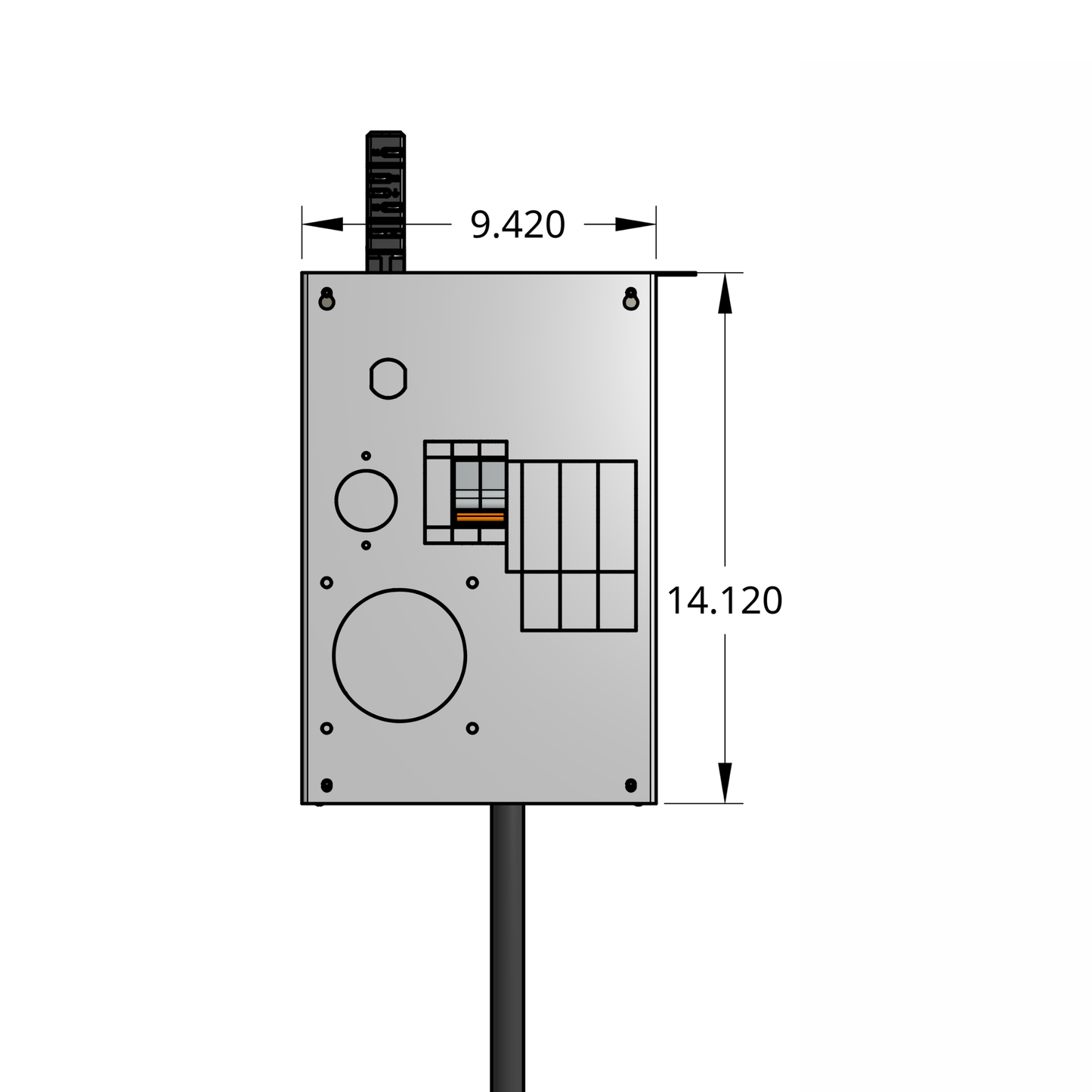

Documented body references are compact C-10, 9.420 inches wide by 14.120 inches high by 3.860 inches deep, and standard S-10, 13.280 inches wide by 14.620 inches high by 3.860 inches deep. These are body dimensions, not overall dimensions including projecting fittings or required installation clearances. The exact configuration determines enclosure applicability. Flexible cords are outside the body envelope; finished cord length is specified per order.

Listed configurations include one, two or three finished cord outputs where the electrical and enclosure combination is supported. The selected sheet identifies the actual cord and breaker quantities.

Critical Power Monitoring Options

PM5000 and HDPM6000 monitoring options and 60A industrial-interface selections are listed for applicable configurations. Their actual finished assembly, monitoring fit and protection layout require the corresponding factory documentation; the standard-interface drawings do not establish those builds.

Select the power, electrical and build options on this product page to see the Selected Technical Configuration and its matching one-page sheet when available. Configurations awaiting confirmation use Request Configuration-Specific Data Sheet. The family guide explains selection scope; a representative body illustration must not be treated as an exact finished configuration.

Standard Ground vs. Isolated Ground

Standard Equipment Ground

Standard equipment grounding through the enclosure and housing ground, where listed for the selected interface and build.

Isolated Ground (IG)

An isolated-ground conductor arrangement where supported by the selected receptacle, build and project design. An IG option is not a substitute for equipment ground.

Compare receptacle and grounding options

This factory-assembled T225 drop cord tap-off unit can be specified with standard equipment grounding or isolated ground (IG) receptacle options where supported by the selected receptacle and build configuration. “Dedicated ground” language must be confirmed against the project drawings as isolated ground, equipment grounding, or another project-specific grounding requirement.
For N2 or N2IG projects, coordinate the tap-off with the matching 225A / T225 busway and feed configuration.
Review grounding and conductor configuration guidance.
