See the busway housing and conductor arrangements used in T225 straight sections.
Drag or use arrow keys to rotate. Scroll or pinch to zoom.
Choose 5 ft or 10 ft lengths with Standard, 200% Neutral, Isolated Ground, or both 200% Neutral and Isolated Ground (N2IG).
Three phases and neutral. The bonded aluminum housing provides the equipment-grounding path.

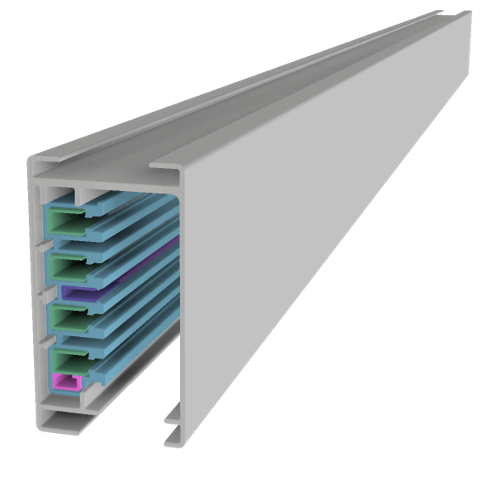

Standard: four main conductors in the insulated stack; the aluminum housing provides the equipment-grounding path.
Color overlays identify conductors; they do not represent physical insulation colors. Model-based illustration.
Adds neutral copper for 200% neutral. Equipment grounding remains through the bonded housing.
N2: additional neutral copper occupies the lower slot, below the standard neutral conductor.
Color overlays identify conductors; they do not represent physical insulation colors. Model-based illustration.
Adds a separate isolated-ground conductor alongside the phases and neutral. The housing remains grounded.
IG: a separate copper conductor occupies the middle slot. Housing grounding remains in place.
Color overlays identify conductors; they do not represent physical insulation colors. Model-based illustration.
Combines both options: 200% neutral and a separate isolated-ground conductor. The housing remains grounded.
N2IG: the middle IG conductor and lower additional neutral conductor are both present.
Color overlays identify conductors; they do not represent physical insulation colors. Model-based illustration.
Model-based cutaways. Colored callouts identify the conductors; they do not represent physical insulation colors. Click a diagram to enlarge the labels. Match the lengths, feed and electrical joiners to one conductor configuration and coordinate compatible tap-offs. Standard and N2 lengths are included in the public T225 listing; confirm the selected IG or N2IG configuration and listing scope.
See the busway housing and conductor arrangements used in T225 straight sections.
USA TrackBusway
SKU: Catalogue # (SKU): T225-4-600-05-N-S

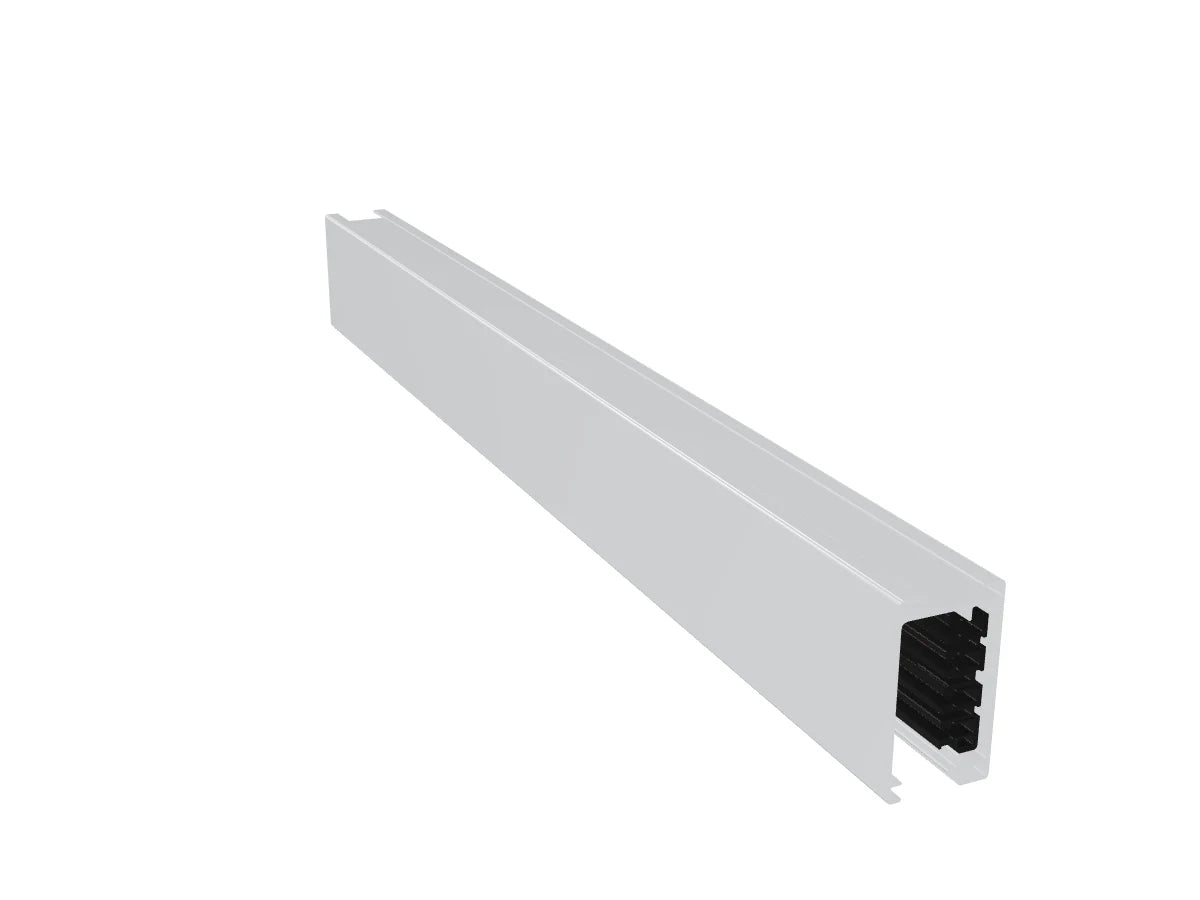

T225 straight busway sections form the main overhead power-distribution run in a USA TrackBusway 225A system. Available in 5 ft and 10 ft lengths, these sections combine with matching feeds, joiners, suspension hangers, and tap-off units. Match the selected conductor configuration with compatible feeds, electrical joiners and tap-offs.
Listed to UL 857 Busway Standards
Covers Standard (S) and 200% Neutral (N2) T225 lengths.
View listing scope and confirm the selected IG configuration before specifying.
Intertek Control No. 5011082
Report No. 106508638CRT-001
Use 10 ft sections for the main run where possible. Use 5 ft sections to finish shorter runs, make layout adjustments, or match project dimensions. Choose the conductor configuration that matches the feed and tap-off requirements.
Couldn't load pickup availability
Build the route from the approved layout and select a combination of 5 ft and 10 ft sections that fits the required run length. Include the connection hardware and support locations when preparing the bill of materials. See the 20-foot straight-row example and component quantities for a starting layout.
The continuous plug-in channel provides locations for compatible T225 tap-off units along the run. Coordinate the section configuration with the feed, tap-off requirements, project voltage, and load calculations. Multiple runs must be planned as coordinated sections of the electrical distribution layout.
Standard (S) and 200% Neutral (N2) T225 lengths are listed by Intertek to UL 857 and CSA C22.2 No. 27.
See certification details for applicable models and configurations.
Intertek Control No. 5011082. Report No. 106508638CRT-001.
| System | 225A Track Busway |
|---|---|
| Phase | 3 Phase + Neutral |
| Voltage | Up to 600V |
| Amperage | 225A |
| Pole Count | 4-Pole |
| Length Options | 5 ft and 10 ft |
| Conductor Options | Standard, Isolated Ground, 200% Neutral, 200% Neutral + Isolated Ground |
| Finish | Natural / factory finish, unless otherwise confirmed |
For larger layouts, 225A Track Busway lengths may be used across multiple coordinated runs, zones, or protected sections. Splitter-based planning can help organize how a larger incoming feeder is divided into downstream 225A Track Busway paths, subject to the upstream source, overcurrent protection, conductor configuration, load calculations, and project-specific electrical review.
225A Track Busway straight sections are available in 5 ft and 10 ft lengths. Use 10 ft sections for the main run where possible, and use 5 ft sections for shorter runs, layout adjustments, or final dimension matching.
Available conductor configurations include Standard, Isolated Ground (IG), 200% Neutral (N2), and 200% Neutral + Isolated Ground (N2IG). The conductor option should match the feed unit, grounding requirements, neutral-load requirements, and project drawings.
Standard (S) and 200% Neutral (N2) busway and feed configurations are included in the public T225 listing. For IG or N2IG orders, review the listing scope and confirm the selected configuration before specifying.
Yes. Where two busway sections connect, a compatible 225A joiner is required. Use an electrical joiner when conductor continuity is needed, and use a non-electrical joiner only where mechanical alignment is needed without electrical continuity.
Yes. USA TrackBusway can help review the run length, feed locations, hanger spacing, joiners, end caps, and plug-in tap-off units needed for a complete 225A busway layout.
Yes. Each individual T225 length remains rated 225A per phase. A larger physical layout can use electrically separate, separately fed and protected sections; additional feeds do not increase an individual length’s rating. Individual T225 tap-offs are available up to 60A per phase, with the selected unit’s ratings governing. Match the upstream source, protection, conductor configuration and normal or required outage loads to the project design.
Yes. Dedicated Ground / DG is available as a project-specific configuration where specified and supported. In a dedicated-ground configuration, an added internal grounding conductor is bonded to the equipment-grounding path and housing/enclosure ground. This is different from Isolated Ground / IG, where the insulated grounding path is maintained separately through compatible components and field wiring.
Isolated-ground receptacle options are available when specified on supported factory-assembled tap-off configurations. USA TrackBusway does not sell loose standalone receptacles.
200% neutral, also searched as 200 percent neutral, is available only as a project-specific 225A / T225 conductor configuration where supported. It must be coordinated with drawings, load calculations, voltage system, and electrical engineer requirements.
200% Neutral + Isolated Ground can be specified as N2IG where supported by the selected 225A / T225 configuration. Coordinate busway lengths, feed units, tap-off units, drawings, and electrical design before ordering.
