Specifications
The specifications below summarize the electrical configuration of standard USA TrackBusway 3-pole plug-in units used to deliver 208V or 480V three-phase power.
“3-pole” refers to the three breaker poles engaging phases A, B, and C. A neutral conductor may be present, but it is not switched by the breaker.
| Phase | Single-Phase |
|---|---|
| Voltage | 240V |
| Pole Count (Breaker Configuration) | 2 |
| Amperage | 15A / 20A / 30A |
| NEMA | L6-15, L6-20, 6-20R, L6-30 |
See 240V Outlet Box in Action
Watch how this product installs, connects, or configures with the Track Busway system
For additional installation scenarios, configuration examples, and system overviews, visit the Track Busway Video Library →
240V Outlet Box
SKU: Catalogue # (SKU): MD20-3-240-JF15-OB-ST-G
Couldn't load pickup availability

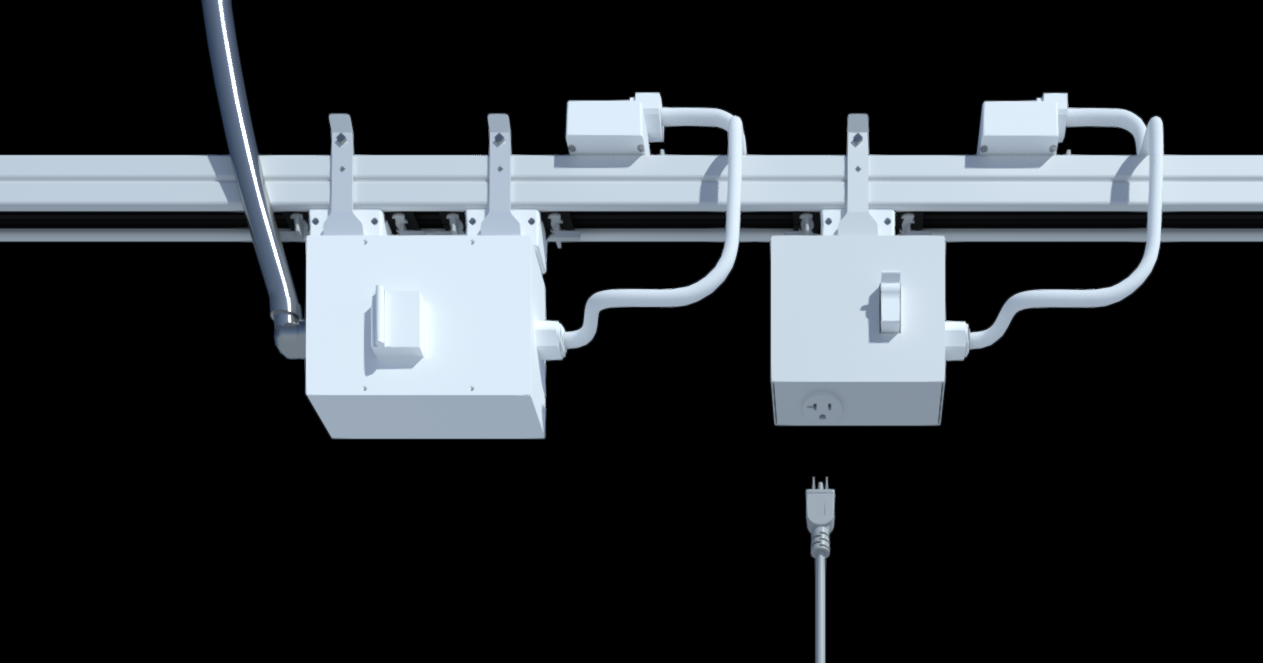

240V Outlet Box - Plug & Play PowerTap for the Steel Track Busway System.
Comes complete with a 3-pole flip-fitter, mounting hardware, and prewired receptacles, offering a ready-to-install solution for effective power distribution across industrial and commercial applications.
Available in galvanized, white, or black finishes.
Downloads – 240V Outlet Box
-
Download PDF Cut Sheet – 240V Outlet Box
-
Download Revit Family (.RVT) – 240V Outlet Box
-
Download STEP Example (.STP) – 240V Outlet Box
-
Download 3D Model (GLB) – 240V Outlet Box
-
Looking for more technical assets?
Track Busway is a modular overhead power distribution system that allows plug-in electrical devices to connect directly to the busway without conduit or permanent wiring.
Power Plug-Ins connect to Track Busway lengths , feeds , and power drops , allowing outlets and devices to be added or repositioned anywhere along the run as electrical needs change.
Track Busway transforms open ceiling spaces with an innovative system that eliminates traditional overhead power structures, simplifying installations while maximizing flexibility.
Pre-Wired Power Infrastructure: Deliver branch-circuit power exactly where it’s needed using pre-wired Track Busway lengths. Power drops can be added, moved, or reconfigured without rewiring to support evolving layouts.
Plug-and-Play Power Access: Tool-free, plug-in power taps with multiple receptacle options provide fast, reliable access to overhead power while maintaining code-compliant distribution.
Track Busway is a scalable, adaptable overhead power distribution solution designed to support changing equipment layouts and long-term system growth.
