Track Busway ROWs with Integrated Cable Tray

Track Busway ROWs with integrated cable tray combine overhead power distribution and structured cable management in a single suspended system. This layout supports plug-in power drops while providing a dedicated pathway for data, control, or low-voltage cabling.

For additional installation scenarios, configuration examples, and system overviews, visit the Track Busway Video Library →

Watch the cable tray installation video

Integrated Cable Tray

Delivering 120V power on demand, each 1-pole plug-in unit connects to a single hot conductor and the neutral.

Designed for simplicity, these units are quick to install, easy to reposition, and ideal for flexible branch-circuit access from overhead.

Thanks to our field-selectable phasing at the busway fitting, contractors can choose the most appropriate circuit during installation—no rewiring required.

More Information On Plug-In Power

Power + Data in One Track

Run 120 / 208 V single-phase power while the built-in tray neatly carries low-voltage cables overhead.

  • One install handles power and data
  • Tool-free tap-offs add outlets fast
  • Keeps ceilings clear—no messy conduit
Request a Quote
Power + Data in One Track
Power + Data in One Track

Run 120 / 208 V single-phase power while the built-in tray neatly carries low-voltage cables overhead.

  • One install handles power and data
  • Tool-free tap-offs add outlets fast
  • Keeps ceilings clear—no messy conduit
Request a Quote

Build an overhead run that combines Track Busway power distribution with an integrated cable tray for organized routing of power and data.

Build a Track Busway Run with Integrated Cable Tray

Build an overhead run that combines Track Busway power distribution with an integrated cable tray for organized routing of power and data.

Row of double-deck Track Busway with cable tray on top and power continuing on with use of joiner insert
Double-deck hanger supporting a run of Track Busway for distributing power and data

HANGER

Suspends both the busway and cable tray assembly from the structure above.
Double-deck Track Busway joiner sleeve with lower deck insert for continuing powered circuit in a run

JOINER

Joins busway lengths while maintaining alignment with the adjacent cable tray.
Double-deck Track Busway cross section with prewired lower channel and open upper channel for cable or data

LENGTH

Pre-wired Track Busway sections provide continuous overhead power alongside the tray.
Track Busway + Cable Tray
.
  • Track Busway 1-phase row with cable tray stacked on top with power and data drops
1 1
Track Busway + Cable Tray

Ships from Ohio in 7 to 10 working days

Our three-phase Track Busway includes three hot conductors and a neutral, enabling both four-wire three-phase power and standard single-phase power from the same system.
1-Pole (Line to Neutral)
1-Pole (Line to Neutral)
2-Pole (Line to Line)
2-Pole (Line to Line)

Downloads – Track Busway + Cable Tray

Looking for more technical assets?
Visit our BIM / Design Tools page .

FEEDs
1
Single-phase Track Busway with feed unit and flex conduit connection for overhead power supply
Line FEEDs
Line FEEDs

Plug-in 2-pole feed for 1-phase power anywhere along the run.

$315.21 USD

Ships from Ohio in 7 to 10 working days

View Product
PLUG-INs
2
120V Track Busway drop cord hanging from overhead busway with plug-in fitting and cord below
120V PowerDrop Cord
120V PowerDrop Cord

Suspended drop cord for 120V receptacle access.

$432.25 USD

Ships from Ohio in 7 to 10 working days

View Product
3
208V Track Busway drop cord with plug-in fitting, breaker enclosure, and cord below
208V-1Ph PowerDrop Cord
208V-1Ph PowerDrop Cord

Suspended drop cord for 208V line-to-line power.

$432.25 USD

Ships from Ohio in 7 to 10 working days

View Product
4
Mesh drop‑sock assembly consisting of a slender rod with a cross‑shaped clamp used to hold a mesh cable support under a Track Busway.
Mesh-Drop-Sock
Mesh-Drop-Sock

Flexible mesh sleeve guides data or control cables neatly from busway to workstations.

$126.35 USD

Ships from Ohio in 7 to 10 working days

View Product
RUNs
5
40A single-phase Track Busway length with open-slot steel channel and insulated copper busbars for plug-in overhead power distribution
Single-Phase LENGTHs
Single-Phase LENGTHs

Busway length with continuous open slot for plug-in power and/or lighting units.

$99.58 USD

Ships from Ohio in 7 to 10 working days

View Product
6
Track Busway overhead power distribution system installed at an angle for flexible layout
STEEL Cable Tray
STEEL Cable Tray

Heavy-duty steel tray routes low-voltage cabling.

$13.30 USD

Ships from Ohio in 7 to 10 working days

View Product
7
Track Busway hanger assembly for suspended overhead busway runs
Hangers
Hangers

Slides onto busway lengths to support runs up to 10' between mounts.

$12.24 USD

Ships from Ohio in 7 to 10 working days

View Product
8
Track Busway cable glide assembly for smooth and adjustable power drop positioning
Cables
Cables

Suspension cable kit with glide and eye-bolt for secure, height-adjustable support.

$24.61 USD

Ships from Ohio in 7 to 10 working days

View Product

BusBar Configurations

The busbar conductor layout determines the voltages available along the ROW.
Single-phase ROWs use three conductors (L-L-N) for 120V and 208Y systems.
Three-phase ROWs use four conductors (L-L-L-N) for 208/480V distribution.

Single-Phase

Three-Phase

Single Deck
Double-Deck
3-pole Track Busway with 2 hot and 1 neutral for single-phase power distribution

1x3-Pole

2 hot conductors and 1 neutral
Cable tray with integrated 3-conductor power busway on lower deck

CableTray+Power

Mechanical support tray with 2 hot conductors and 1 neutral below
4-Circuit Busway cross section

2x3-Pole

Two sets of 2 hot conductors and 1 neutral
4-pole Track Busway with 3 hot, 1 neutral for three-phase power with isolated ground option

1x4-Pole

3 hot conductors and 1 neutral (available with isolated ground)
Single-Deck
Single-Phase
Double Deck
Three-Phase

Single-Phase LENGTHs

  • 40A single-phase Track Busway length with open-slot steel channel and insulated copper busbars for plug-in overhead power distribution
  • Cutaway view of Track Busway showing insulated copper busbars inside an open-slot housing
  • Busway electrical system with copper conductors in finger-safe insulation and enclosed steel track housing
  • straight on view of white track busway length
1 4
side view of 3-phase galvanized track busway section

3-Phase Lengths
Track Busway with suspended LED lighting and security cameras in retail open ceiling installation

Common Voltage Options met with Track Busway

TWO-CIRCUIT if Single-Deck.

FOUR-CIRCUIT if Double-Decked.

$29.50 USD
$99.58 USD
Sale Sold out
Amperage
Single-Deck Length
Color

USA TrackBusway® lengths feature insulated copper bus bars within a durable, U-shaped steel housing. A continuous open slot allows plug-in units to be installed anywhere along the track—providing flexible, efficient power distribution for dynamic layouts.

Ships from Ohio in 7 to 10 working days

Downloads – Single-Phase LENGTHs

Looking for more technical assets?
Visit our BIM / Design Tools page .

side view of 3-phase galvanized track busway section

3-Phase Lengths
Track Busway with suspended LED lighting and security cameras in retail open ceiling installation

Common Voltage Options met with Track Busway
Track Busway electric joiner insert for continuous power between lengths

JOINERs

JOINERs for extending ROW / COLUMN

Securely connect abutting USA TrackBusway® sections with our durable joiners, ensuring structural integrity; and separately joiner inserts for seamless power distribution.
Track Busway hanger assembly for suspended overhead busway runs

HANGERs

Listed for up to 10' between supports

These hangers slide into position along the track, making it easy to suspend the system with precise support point placement. Designed for flexibility, they support spans up to 10 feet and simplify installation.

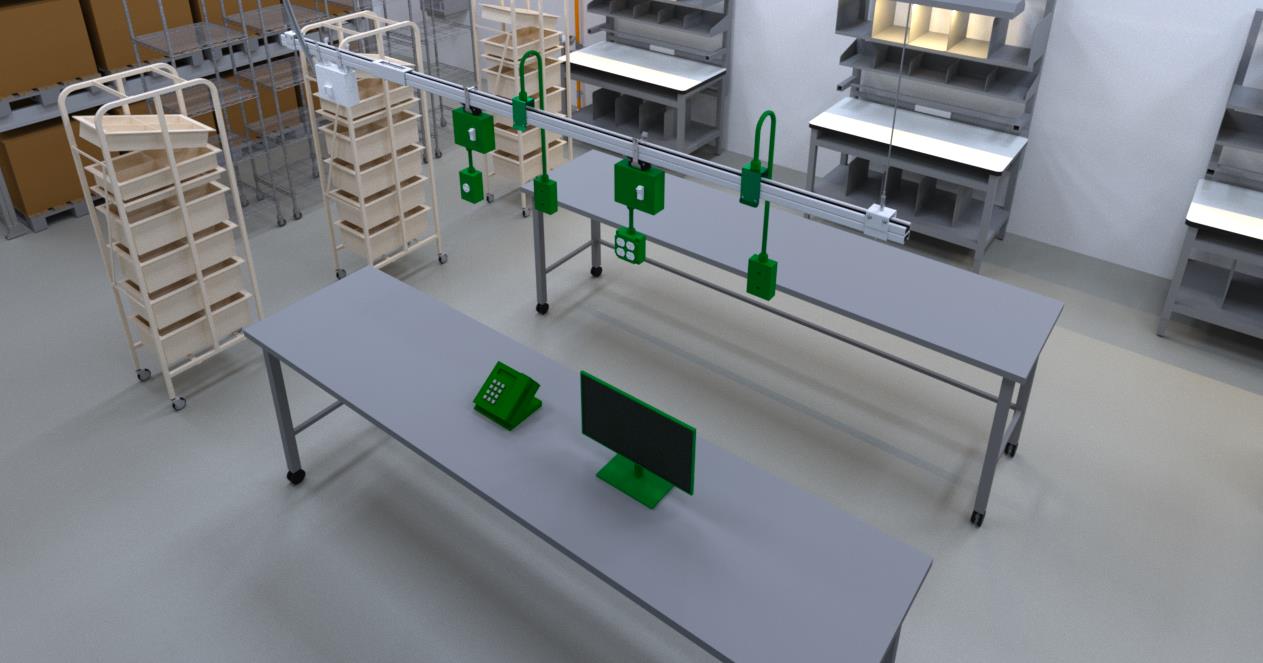

Clutter-Free Ceilings

Add or move outlets and network lines anytime; no shutdowns, no floor obstructions.

  • Move power tap-off units within minutes
  • The integrated Cable Tray protects fragile low-voltage wiring
  • ONE Overhead System versus separate cable trays + conduits for power
Contact Us
Clutter-Free Ceilings
Clutter-Free Ceilings

Add or move outlets and network lines anytime; no shutdowns, no floor obstructions.

  • Move power tap-off units within minutes
  • The integrated Cable Tray protects fragile low-voltage wiring
  • ONE Overhead System versus separate cable trays + conduits for power
