USA TrackBusway vs Starline* Track Busway Systems

Track Busway systems provide continuous plug-in power access along the run, allowing power drops to be positioned and repositioned without rewiring. This page compares USA TrackBusway with worldwide Starline* track busway systems, highlighting how they differ in lead times, ampacity, and feed strategy.

USA TrackBusway is built around a distributed-feed approach using 40A and 225A systems, while the leading worldwide track busway systems are designed to deliver higher ampacity from a single feed. That difference affects lead times, material use, and how power is expanded along the run.

Photos: Top image shows open-slot Track Busway installed below an acoustical tile ceiling with plug-in PowerDrops. Bottom image shows insulated copper busbars inside the open-slot channel.

Side-by-Side Comparison table → Watch how Track Busway stacks →

Need help choosing the right busway system?

USA TrackBusway provides complimentary design drawings and installation guidance to help you select and configure the right Track Busway solution.

Contact Us

Comparing Overhead Plug-In Track Busway Systems

USA TrackBusway is designed for distributed power, allowing feeds to be added anywhere along the run. Some worldwide track busway systems are designed to deliver much higher ampacity — up to 1250A — from a single feed. This difference affects lead times, system layout, and how power is expanded over time.

* Starline is a registered trademark of Universal Electric Corporation (UEC), a brand of Legrand Electric, Inc. This website and the products offered herein are not affiliated with, sponsored by, or endorsed by UEC or Legrand.

KEY ADVANTAGES OF USA TrackBusway

KEY SIMILARITIES WITH WORLDWIDE TRACK BUSWAY SYSTEMS

Both USA TrackBusway and worldwide track busway systems use a plug-in architecture that allows tap-off units to be positioned along a run more flexibly than conduit-and-junction-box layouts. This shared plug-in approach is what enables faster changes and easier repositioning of loads.

Voltage Capabilities Both systems are listed to UL 857 busway standards for use up to 600V in single-phase and three-phase layouts.
Installation Both install far faster than hand-wiring conduit-and-junction-box layouts.

The differences in amperage, layouts, and distribution strategy are outlined in the comparison below.

How USA TrackBusway Compares to Worldwide Track Busway Systems

Worldwide track busway systems often deliver higher ampacity from a single feed, while USA TrackBusway distributes power using 40A and 225A systems placed along the run.

The table below shows how these approaches affect lead times, construction, amperage, and future flexibility.

Side-by-Side System Comparison
Feature	USA TrackBusway	Worldwide Track Busway Systems
SPEED – Lead Time & Installation	40A standard modular systems: 7–10 working days 225A systems: 10–12 weeks See current lead times on our page that is updated weekly Distributed layouts can simplify phased expansion and field changes	Lead times vary by manufacturer, ampacity, and configuration Contractor quotes frequently show months-long delivery timelines for worldwide track busway systems Higher-capacity systems often involve longer fabrication cycles and more centralized feeder planning
Material & Construction	System construction varies by ampacity and configuration Insulated copper busbars sized for 40A or 225A systems 225A systems use aluminum housing construction Designed around localized plug-in distribution and distributed-feed layouts	Often built around aluminum housing construction Insulated copper busbars sized according to ampacity Higher-ampacity models can require larger conductor mass and more centralized distribution strategy
Amperage (Per Circuit) (Per Phase)	40A per circuit / per phase Single-deck single-phase: up to (2) 40A circuits Double-deck three-phase: (3) 40A circuits Double-deck single-phase: up to (4) 40A circuits 225A per circuit / per phase on higher-capacity runs Additional feeds can be added where needed along the run instead of depending on one oversized feeder	Up to 1250A per circuit / per phase depending on system family and configuration Often used for higher-capacity distribution from fewer, more centralized feed points
Voltage & Circuiting	Supports 120V, 208V, 240V, and 480V layouts 1-pole, 2-pole, and 3-pole plug-in options available Double-deck layouts can add circuits within the same suspended footprint	Supports 120V, 208V, 240V, and 480V layouts 1-pole, 2-pole, and 3-pole plug-in options available Three-phase distribution may be delivered within a single housing depending on system design
Unique Features & Layouts	Continuous open-slot access along the run Flip-select plug-in taps Stackable double-deck layout Over / under bridge runs Can supply up to four single-phase circuits from the same suspended footprint using (2) 2-pole line feeds	Higher ampacity per feed Centralized long-run distribution Metering options may be available depending on system family

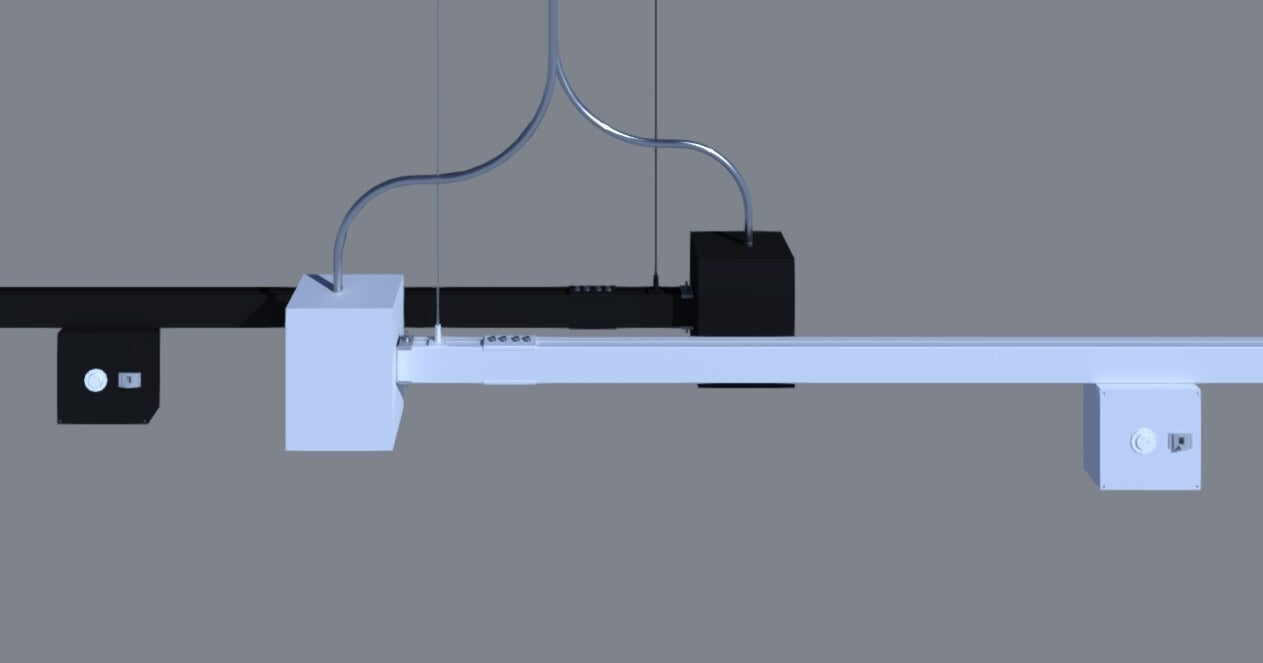

Why USA TrackBusway Uses Distributed Feeds

USA TrackBusway uses a distributed-feed approach if more than 225A per feed is required.

Instead of relying on a single high-capacity feed, additional feeds can be added along the run wherever power is needed. This allows the system to expand step by step as layouts change, without redesigning the entire system around one centralized entry point.

This distributed approach makes it easier to scale capacity, adapt to layout changes, and maintain flexibility over time. Learn more in our Track Busway system design guide.

How Track Busway Delivers Flexible Voltage Options

Track Busway supports 120V, 208V, and 480V equipment using 1-pole, 2-pole, and 3-pole plug-in tap off units.

This allows a single overhead system to serve different equipment types while making future changes easier.

External Industry Coverage

Third-party industry publications continue to highlight the advantages of distributed power systems over traditional busway approaches, particularly in environments requiring flexibility, scalability, and faster installation.

Designing Leaner Busway Systems

This article explores how modular busway systems reduce installation complexity and support lean manufacturing environments.

Read Article →

Smarter Overhead Power Distribution for Flexible Facilities

EC&M highlights how modular overhead power distribution improves flexibility, reduces unnecessary ampacity, and supports evolving facility layouts.

Read Article →

Frequently Asked Questions About Track Busway

For additional answers about plug-in busway safety, standards, reconfiguration, and installation, visit the

full Track Busway FAQ page

How do feeder-style busway systems differ from localized plug-in busway systems?

Feeder-style busway systems are typically designed to deliver higher-capacity power from a central source to downstream equipment or panels. By contrast, localized plug-in busway systems provide distributed access points along the run, allowing power connections to be added, repositioned, or scaled as operational needs change. This is one of the core differences between higher-ampacity feeder busway strategies and the more flexible distributed-feed approach used by USA TrackBusway.

What voltage options are supported by Track Busway?

Track Busway supports common industrial voltages including 120V, 208V, 240V, and 480V. Plug-in units are available in 1-pole, 2-pole, and 3-pole configurations to support both single-phase and three-phase systems. This allows a single overhead system to serve multiple equipment types and layouts without requiring upstream rewiring when power needs change.

How does Track Busway comply with UL standards?

Track Busway systems are listed under UL 857, the standard governing busway systems used for electrical power distribution. Within this standard, continuous plug-in busway systems in the U.S. are typically rated at 225A or less. That rating aligns with the localized branch-circuit distribution strategy used by USA TrackBusway, while higher-ampacity systems may rely on more centralized feed strategies and different tap-off methods.

See Track Busway Installed and Operating

See how Track Busway stacks two channels vertically to support 3-phase or multiple single-phase circuits — all on one suspended run of track busway.

Video summary: The animation shows Track Busway suspended overhead with two stacked channels. Power feeds energize the busway, and plug-in units are inserted along the run to supply 3-phase or multiple single-phase circuits.

View all Track Busway installation & demo videos →
