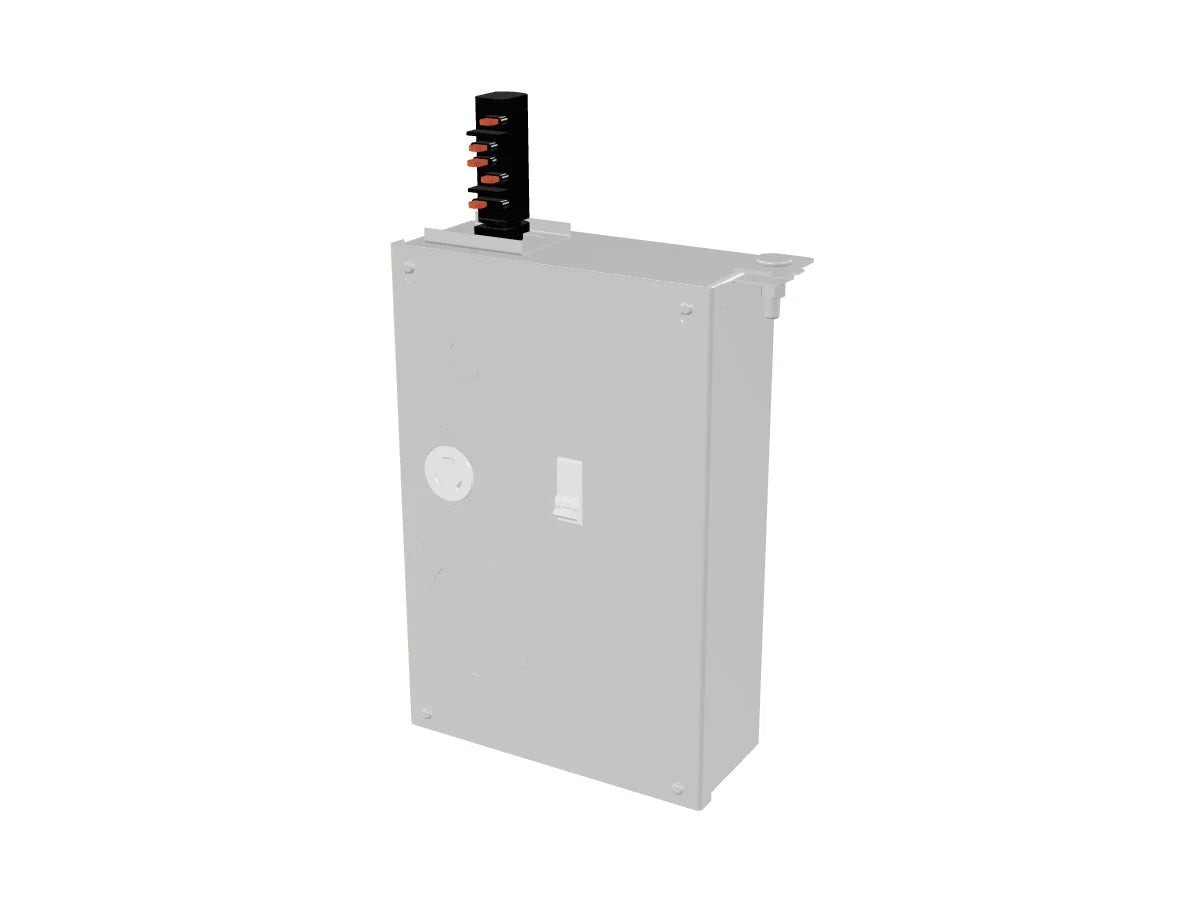

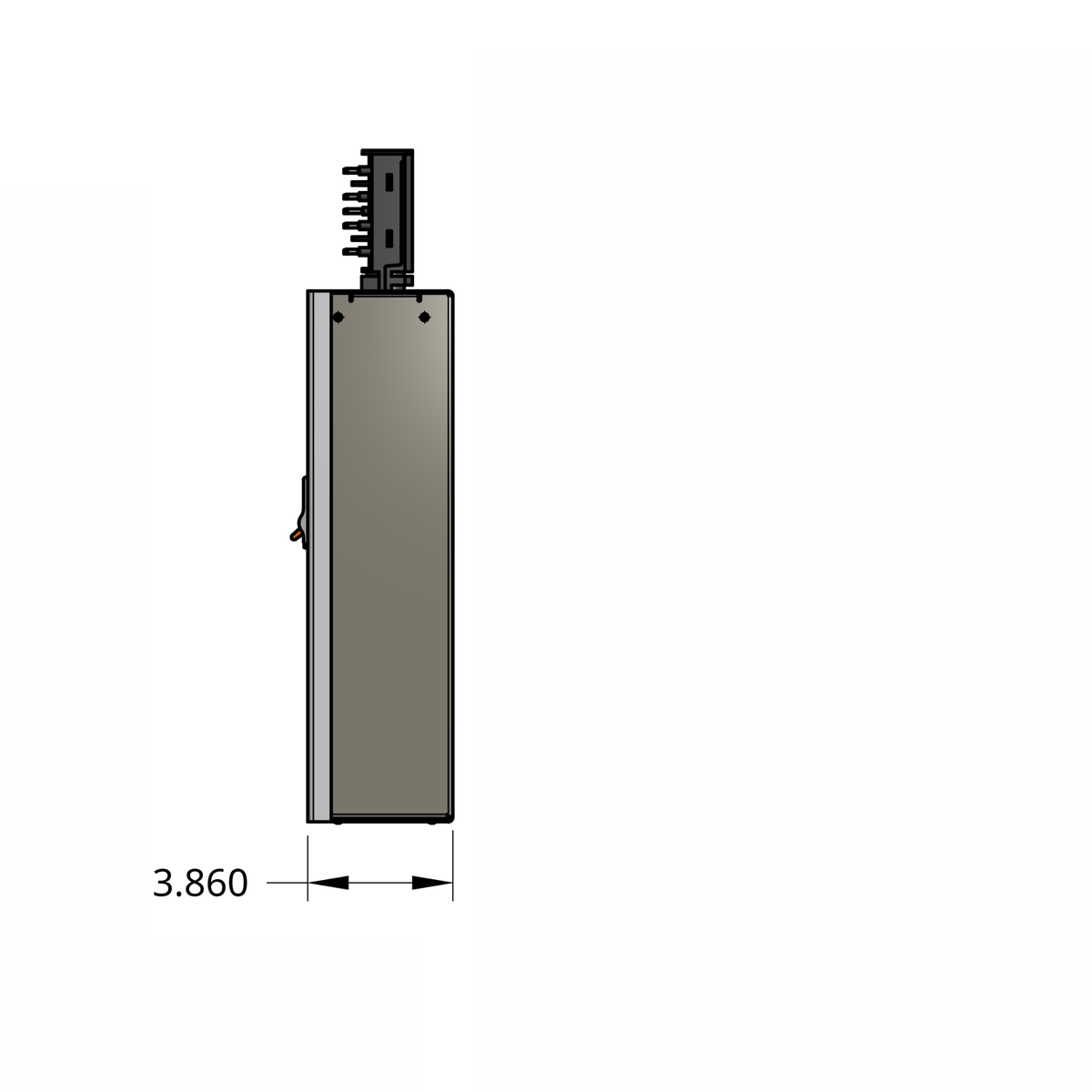

This 1-pole outlet-box tap-off plugs into the 225A (T225) Track Busway system and keeps the equipment connection directly at the overhead busway. It supplies protected line-to-neutral power for 120V, 240V or 277V equipment, with receptacle and branch-circuit ratings determined by the selected configuration.
For 225A Track Busway (225A per feed). T225 identifies the compatible busway system, not this tap-off’s amperage. Select the tap-off’s own current rating, voltage, pole count and protection from its specifications.
Need a cord drop? T225 1-pole PowerDrop cord →
Choosing a 40A system? T40 1-pole outlet box →
Want the cord to retract? T225 45 ft breakered cord reel →
Available voltage, current rating, neutral, grounding and connector options differ. T40 and T225 components are not interchangeable.
Typical T225 lead time: 8 weeks
Planning estimate. Your quote confirms the tap-off shipment schedule.
Build your tap-off
A starting build and phase connection are selected. Match them to your equipment, then adjust the options below. Price, specifications and downloads follow your selection.
Options vary by power, electrical and build combination.
Loading your selected build, specifications and downloads.
Selected technical details
Additional technical details
Use JavaScript to select a configuration and purchase this product. The family guide is available below, and you can contact us for a configuration-specific sheet .
Catalogue # (SKU): Select configuration
$765.00 USD – $2,105.00 USD
Couldn't load pickup availability
Refresh
Documents for your selected tap-off
Downloads follow your selected build. Revit downloads are representative family models; confirm the selected configuration.
PT225 is the current tap-off SKU prefix. Older T225 tap-off references use the same remaining code.
View Complete Product Family Technical Guide (PDF)
Request this configuration’s cut sheet
Need a cut sheet for this selection? Send your configuration details with your request so we can identify the correct document.
Copy the details, then paste them into Message on the contact page. They are not transferred automatically.
View copyable configuration details Product and selected configuration
Browse configuration data sheets Open another configuration sheet without changing your selected build.
Configuration data sheet Choose a sheet to view Open configuration data sheet (PDF) The family guide is available without JavaScript. Request a configuration-specific sheet with your selected build details.
Limited to the illustrated configurations. Confirm the ordered assembly for your project.

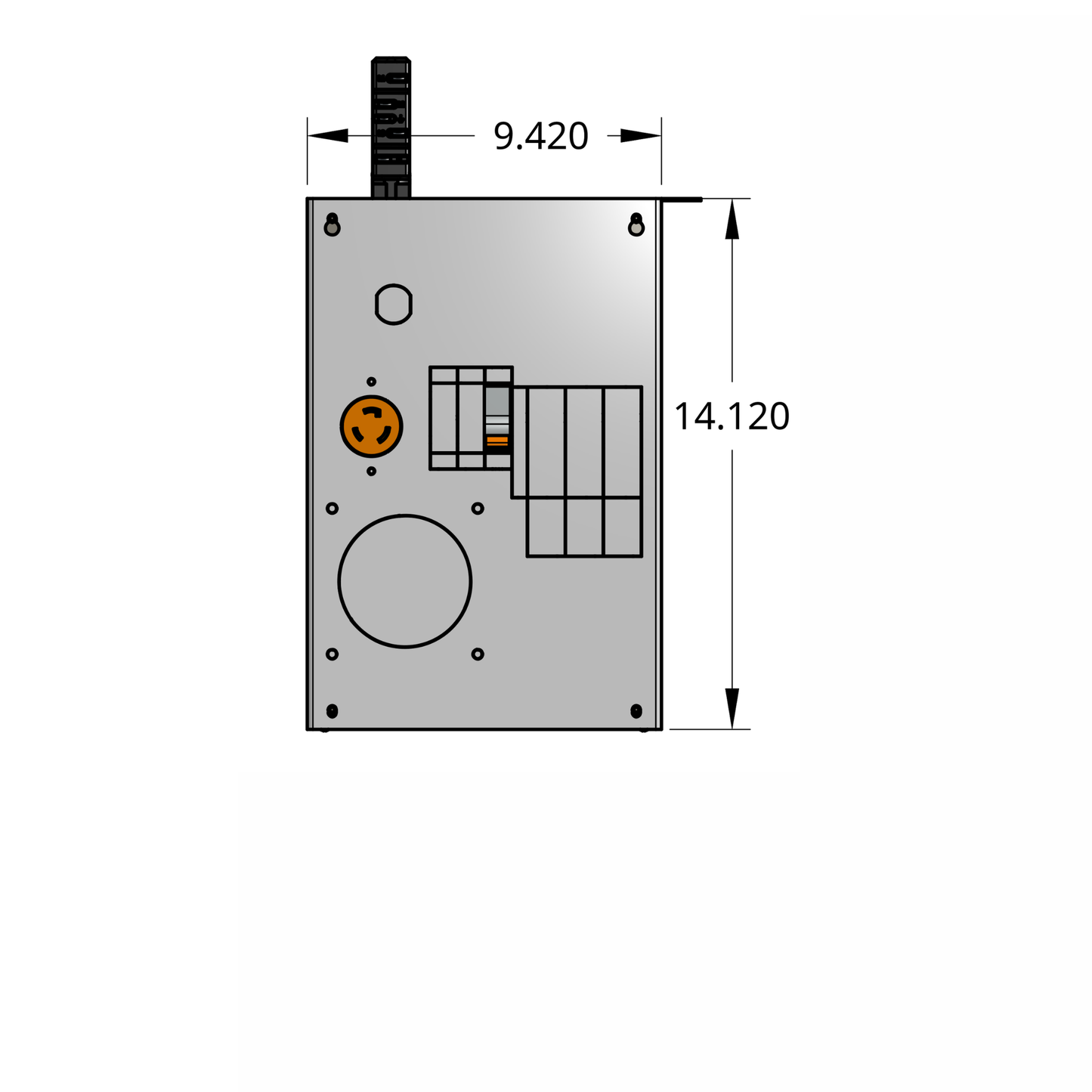

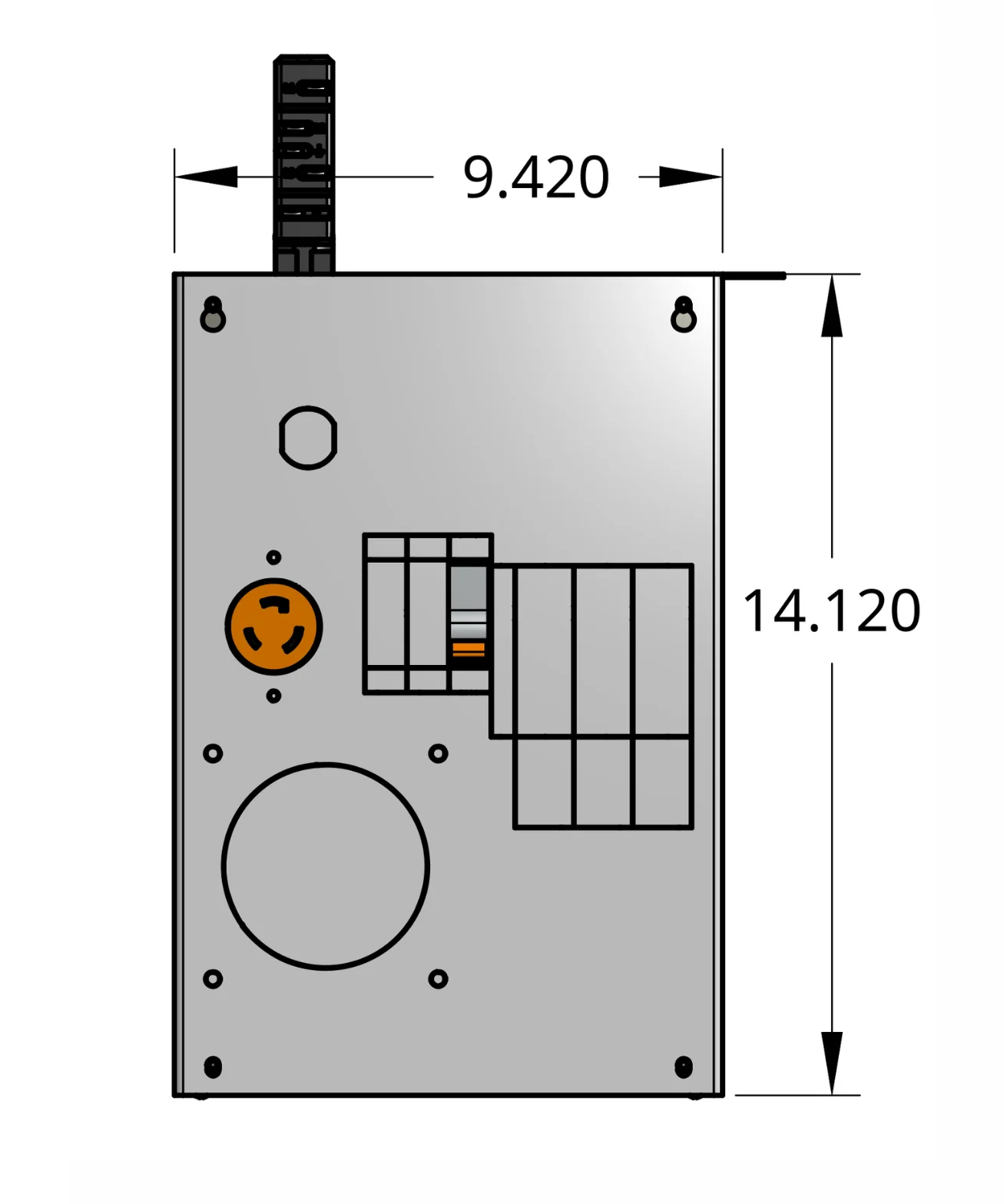

Representative catalog configuration: PT225-C-10-OB-L515-G. This Revit family retains its earlier T225 type name. Confirm the selected build for your project.
Request a STEP Model
Download All Product Resources (ZIP)
120V 1-Phase (1PNG) / 15A - Standard Ground / 1 twist lock receptacle - No CPM
120V 1-Phase (1PNG) / 15A - Standard Ground / 1 twist lock receptacle Schneider PM5000
120V 1-Phase (1PNG) / 15A - Standard Ground / 1 twist lock receptacle Schneider HDPM6000

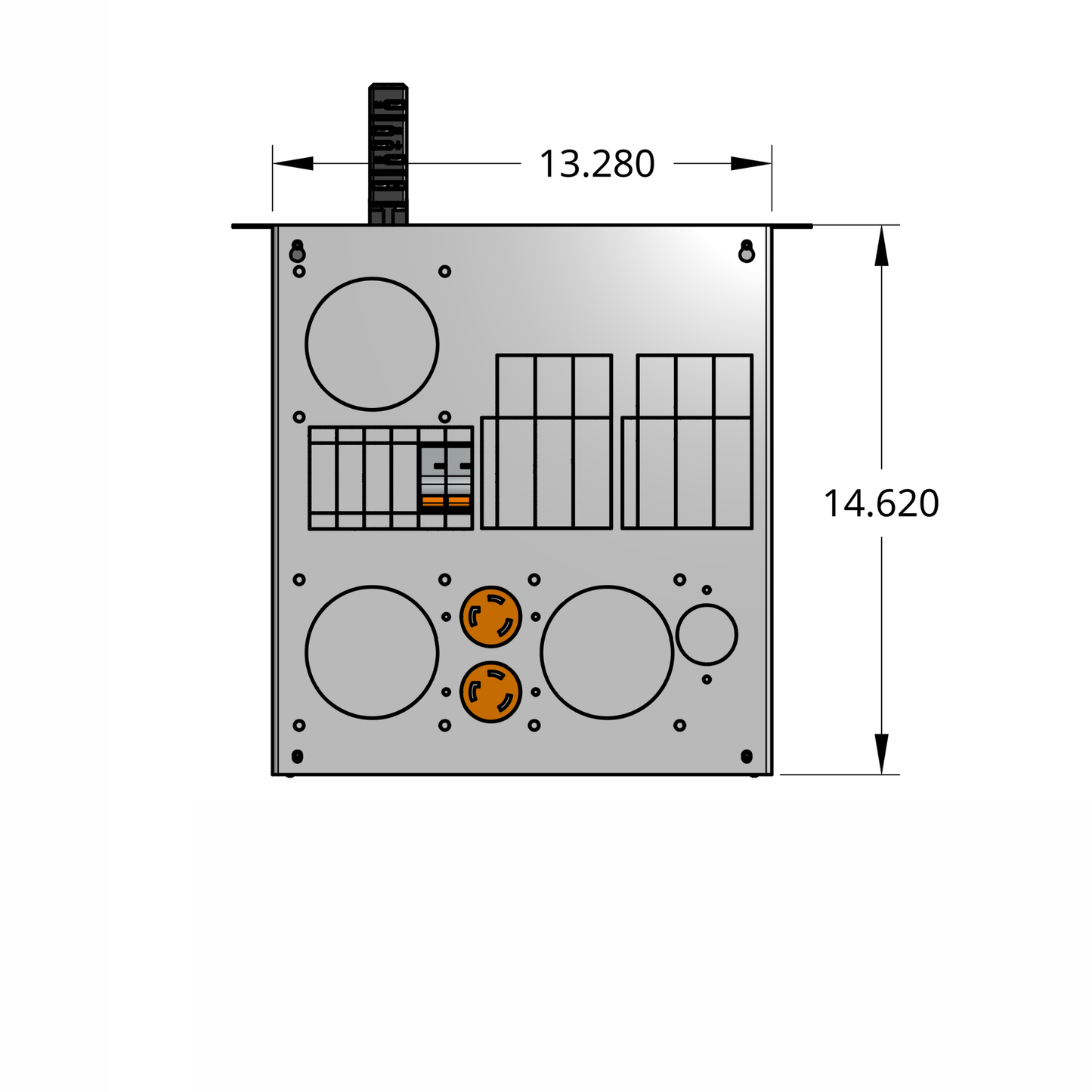

120V 1-Phase (1PNG) / 15A - Standard Ground / 2 twist lock receptacles - No CPM

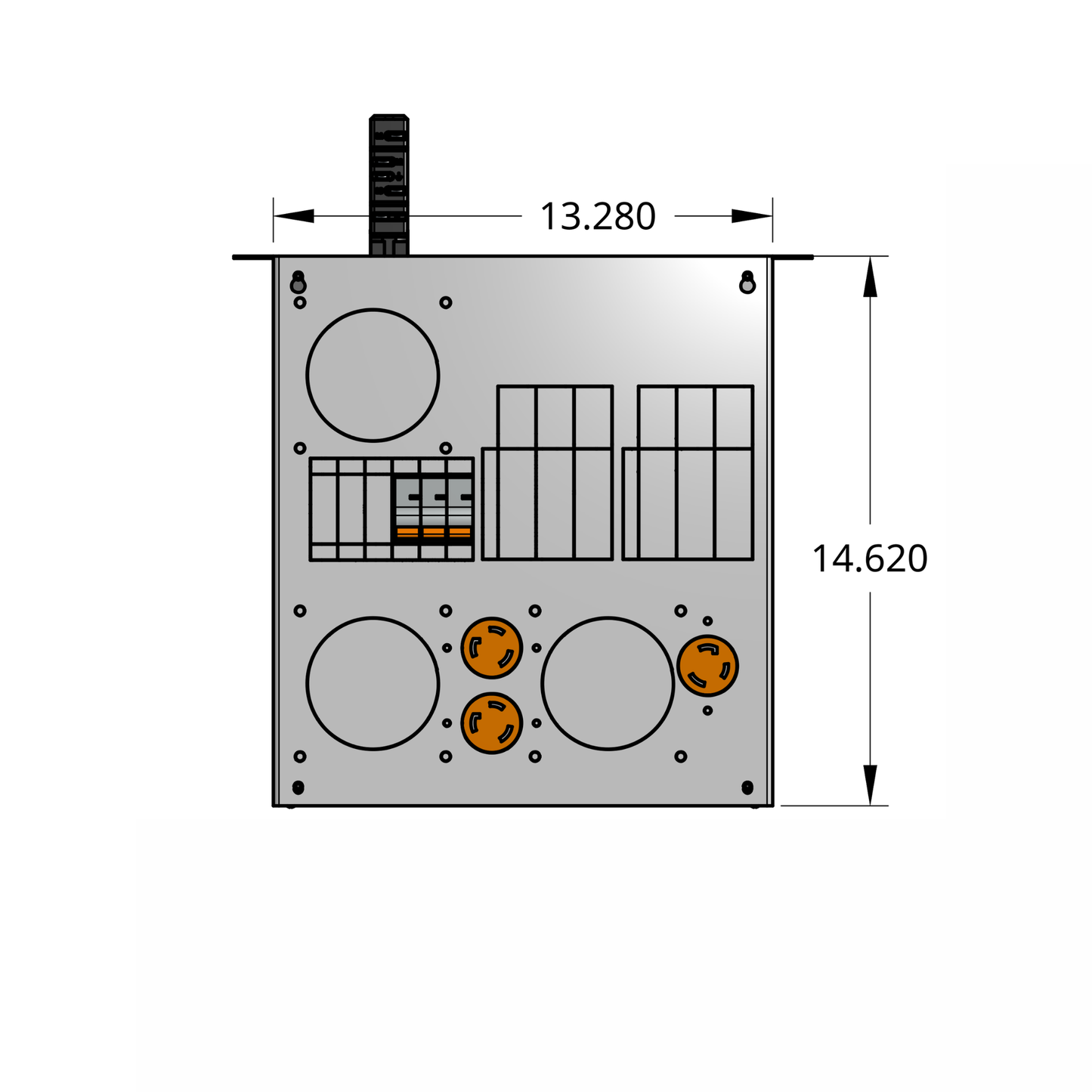

120V 1-Phase (1PNG) / 15A - Standard Ground / 3 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 20A - Standard Ground / 1 twist lock receptacle - No CPM
120V 1-Phase (1PNG) / 20A - Standard Ground / 1 twist lock receptacle Schneider PM5000
120V 1-Phase (1PNG) / 20A - Standard Ground / 1 twist lock receptacle Schneider HDPM6000
120V 1-Phase (1PNG) / 20A - Standard Ground / 2 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 20A - Standard Ground / 3 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 20A - Standard Ground / Single straight blade receptacle - No CPM
120V 1-Phase (1PNG) / 20A - Standard Ground / Duplex straight blade receptacle - No CPM
120V 1-Phase (1PNG) / 20A - Standard Ground / Quad straight blade receptacle - No CPM
120V 1-Phase (1PNG) / 30A - Standard Ground / 1 twist lock receptacle - No CPM
120V 1-Phase (1PNG) / 30A - Standard Ground / 1 twist lock receptacle Schneider PM5000
120V 1-Phase (1PNG) / 30A - Standard Ground / 1 twist lock receptacle Schneider HDPM6000
120V 1-Phase (1PNG) / 30A - Standard Ground / 2 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 30A - Standard Ground / 3 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 60A - Standard Ground / 1 twist lock receptacle - No CPM
120V 1-Phase (1PNG) / 60A - Standard Ground / 1 twist lock receptacle Schneider PM5000
120V 1-Phase (1PNG) / 60A - Standard Ground / 1 twist lock receptacle Schneider HDPM6000
120V 1-Phase (1PNG) / 60A - Standard Ground / 2 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 60A - Standard Ground / 3 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 15A - Isolated Ground / 1 twist lock receptacle - No CPM
120V 1-Phase (1PNG) / 15A - Isolated Ground / 1 twist lock receptacle Schneider PM5000
120V 1-Phase (1PNG) / 15A - Isolated Ground / 1 twist lock receptacle Schneider HDPM6000
120V 1-Phase (1PNG) / 15A - Isolated Ground / 2 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 15A - Isolated Ground / 3 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 20A - Isolated Ground / 1 twist lock receptacle - No CPM
120V 1-Phase (1PNG) / 20A - Isolated Ground / 1 twist lock receptacle Schneider PM5000
120V 1-Phase (1PNG) / 20A - Isolated Ground / 1 twist lock receptacle Schneider HDPM6000
120V 1-Phase (1PNG) / 20A - Isolated Ground / 2 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 20A - Isolated Ground / 3 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 20A - Isolated Ground / Single straight blade receptacle - No CPM
120V 1-Phase (1PNG) / 20A - Isolated Ground / Duplex straight blade receptacle - No CPM
120V 1-Phase (1PNG) / 20A - Isolated Ground / Quad straight blade receptacle - No CPM
120V 1-Phase (1PNG) / 30A - Isolated Ground / 1 twist lock receptacle - No CPM
120V 1-Phase (1PNG) / 30A - Isolated Ground / 1 twist lock receptacle Schneider PM5000
120V 1-Phase (1PNG) / 30A - Isolated Ground / 1 twist lock receptacle Schneider HDPM6000
120V 1-Phase (1PNG) / 30A - Isolated Ground / 2 twist lock receptacles - No CPM
120V 1-Phase (1PNG) / 30A - Isolated Ground / 3 twist lock receptacles - No CPM
277V 1-Phase (1PNG) / 15A - Standard Ground / 1 twist lock receptacle - No CPM
277V 1-Phase (1PNG) / 15A - Standard Ground / 1 twist lock receptacle Schneider PM5000
277V 1-Phase (1PNG) / 15A - Standard Ground / 1 twist lock receptacle Schneider HDPM6000
277V 1-Phase (1PNG) / 15A - Standard Ground / 2 twist lock receptacles - No CPM
277V 1-Phase (1PNG) / 15A - Standard Ground / 3 twist lock receptacles - No CPM
277V 1-Phase (1PNG) / 20A - Standard Ground / 1 twist lock receptacle - No CPM
277V 1-Phase (1PNG) / 20A - Standard Ground / 1 twist lock receptacle Schneider PM5000
277V 1-Phase (1PNG) / 20A - Standard Ground / 1 twist lock receptacle Schneider HDPM6000
277V 1-Phase (1PNG) / 20A - Standard Ground / 2 twist lock receptacles - No CPM
277V 1-Phase (1PNG) / 20A - Standard Ground / 3 twist lock receptacles - No CPM
277V 1-Phase (1PNG) / 30A - Standard Ground / 1 twist lock receptacle - No CPM
277V 1-Phase (1PNG) / 30A - Standard Ground / 1 twist lock receptacle Schneider PM5000
277V 1-Phase (1PNG) / 30A - Standard Ground / 1 twist lock receptacle Schneider HDPM6000
277V 1-Phase (1PNG) / 30A - Standard Ground / 2 twist lock receptacles - No CPM
277V 1-Phase (1PNG) / 30A - Standard Ground / 3 twist lock receptacles - No CPM
240V 1-Phase (1PNG) / 20A - Standard Ground / 1 twist lock receptacle - No CPM
240V 1-Phase (1PNG) / 30A - Standard Ground / 1 twist lock receptacle - No CPM
More technical resources →
Reposition without shutting down the busway
Compatible breakered tap-offs can be hot-swapped by qualified personnel while the busway remains energized. Switch the tap-off breaker OFF before insertion, removal or relocation and leave it OFF throughout the work. Switch it ON only after the unit is fully inserted and securely locked.
Follow the T225 manual, Steps 5–6 and site procedures. This permission does not extend to feeds, joints, servicing or non-breakered devices.
Listed to UL 857 Busway Standards
For covered PT225 configurations. View listing scope and selected-build ratings.
Intertek Control No. 5011082 106508638CRT-001
View T225 listing scope and ratings →
Grounding options → Compare standard and isolated-ground paths for T225. Power monitoring → Explore optional T225 metering and project requirements. Data-center power → Plan 415Y/240V rack power, A/B feeds and custom tap-offs.
How does a three-phase supply deliver 240V single-phase rack power? On a 415Y/240V supply, a matching 1-pole tap-off takes one phase and neutral to supply 240V. The 240LN-1P build identifies this connection; it does not convert voltage. Coordinate the selected phase with the rack load plan before ordering.
Planning an overhead equipment connection Position the outlet box where the equipment’s supply cord can reach the busway. Allow room to insert and remove the plug and to access the tap-off enclosure. Include the cord route and equipment service clearances when deciding where the connection belongs along the run.
