Medium Track Busway Grid System
The Track Busway system is designed to expand seamlessly, enabling you to create modular overhead power distribution sections of any size with the use of over/under intersections. The modular design supports all types of plug-in power access points in these rectangular configurations, accommodating various power configurations to scalable solutions for evolving project needs.
These components allow abutting lengths to connect seamlessly, enabling fully customized layouts to meet unique project requirements. Whether your rectangular overhead power drops project includes plug-in power access points or other configurations, every power drop can be positioned with precision to optimize power functionality.
Note: This configuration represents a typical rectangular overhead power drop setup; however, the modular system’s adaptability allows for customized layouts that can grow with your project requirements.
USA TrackBusway
A Track Busway GRID system creates an overhead power distribution grid using intersecting plug-in busway runs, allowing power drops to be positioned anywhere across the workspace.
SKU: Catalogue # (SKU): GRID-MED-G
Couldn't load pickup availability

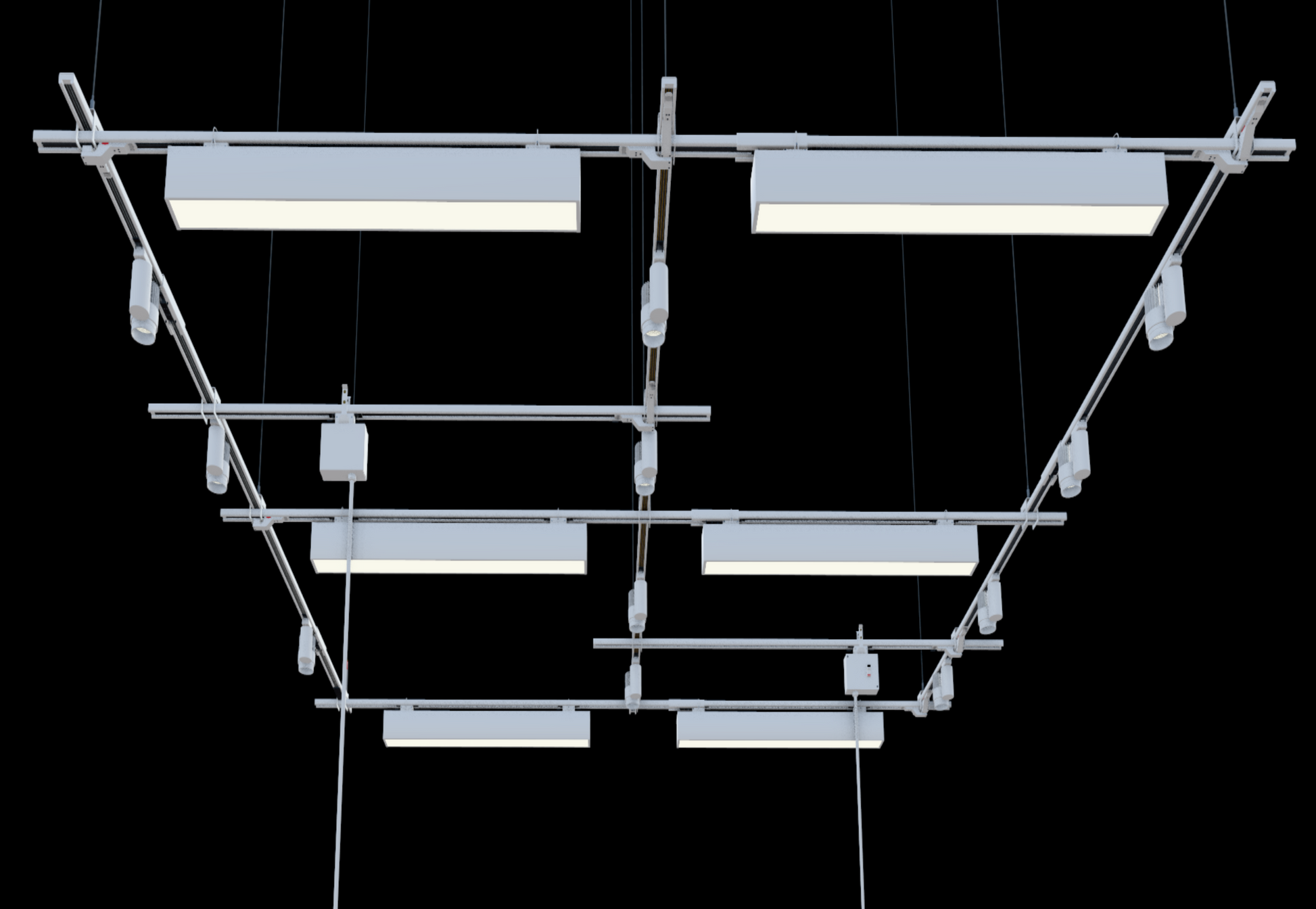

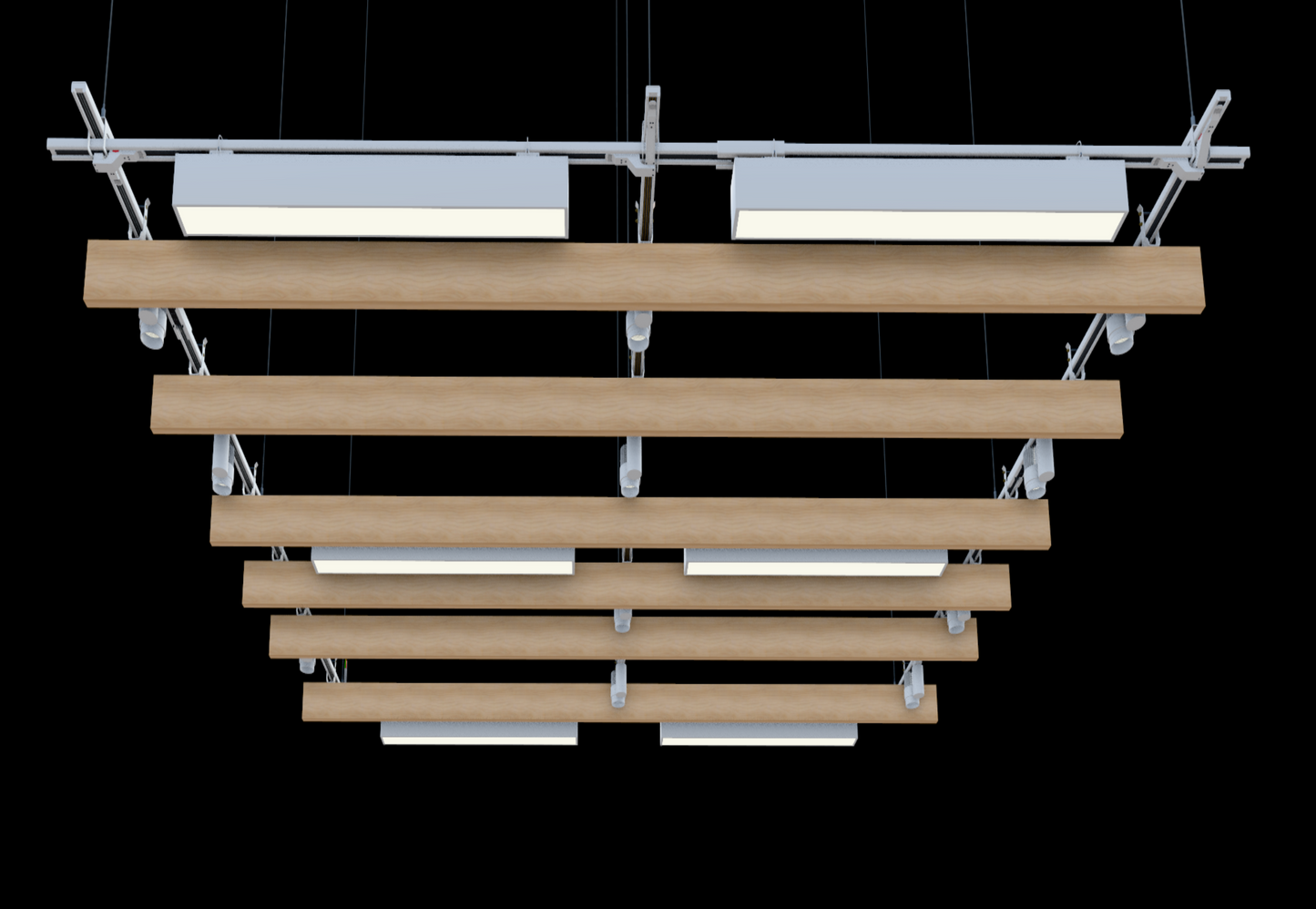

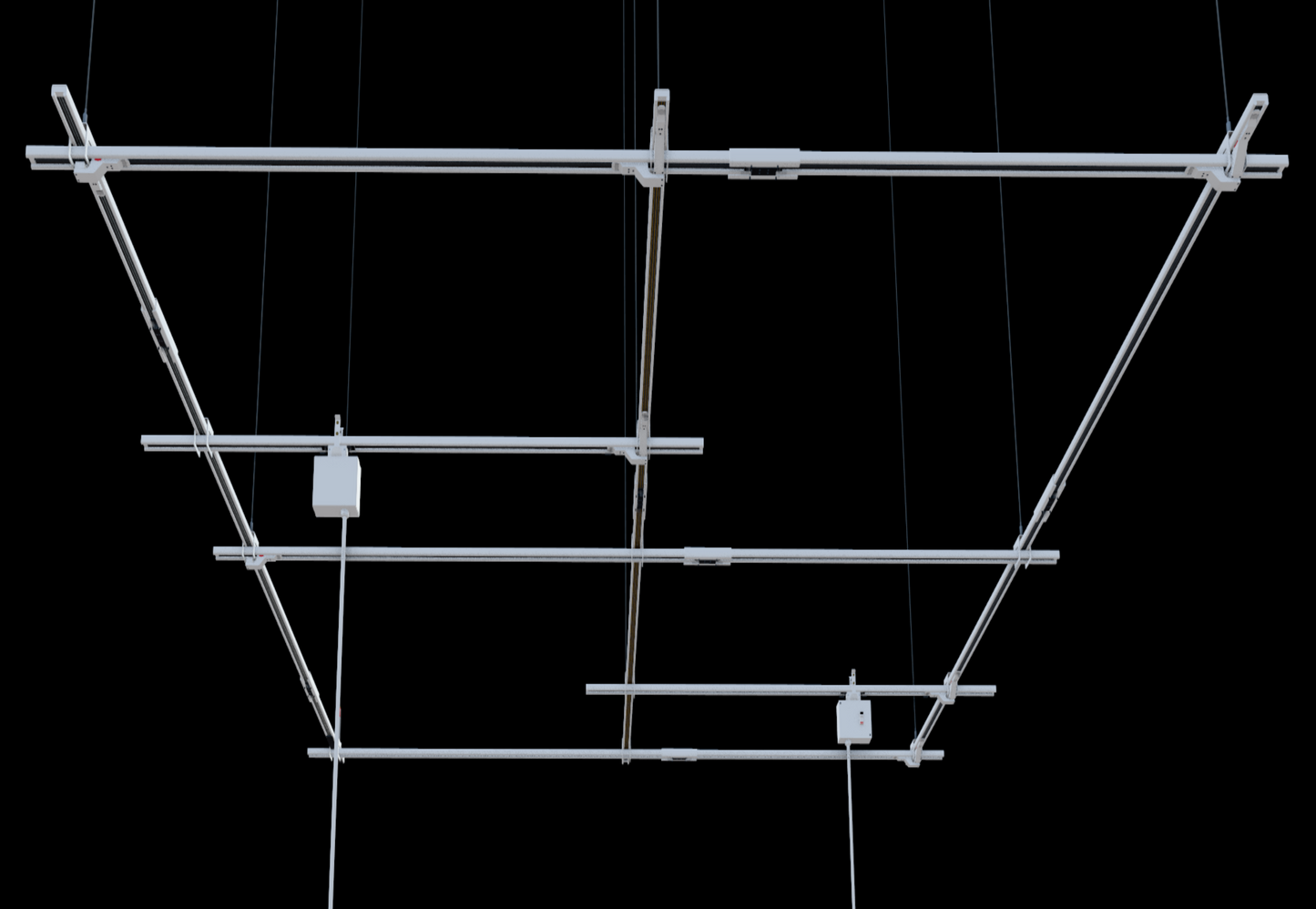

This medium Track Busway GRID configuration creates a power distribution grid approximately 12′ × 12′ in size. Intersecting Track Busway runs allow plug-in PowerDrops to be positioned anywhere within the grid.
This configuration provides balanced coverage for mid-size work areas, allowing equipment and workstations to be powered anywhere within the grid without rewiring.
How This Grid Scales
- Uses consistent modular Track Busway components
- Over-under intersections allow adjustable cell spacing
- Coverage increases from Small to Large
- Layout can expand without replacing base infrastructure
What’s Included in This Kit
- Pre-configured Track Busway lengths
- Over-under crossover intersections
- Electrical jumpers
- Suspension hardware
- Power feed (included)
- Attachment option: None or PowerDrops
Need a confirmed layout or modified grid spacing?
Request Complimentary LayoutDownloads – Medium Track Busway Grid System
Looking for more technical assets?
Explore Track Busway Grid Configurations:
Compare the other Track Busway GRID configurations to determine the layout that best fits your workspace coverage and overhead power distribution needs.
-
Small Track Busway Grid System
Compact perimeter layout for smaller work areas.
-
Large Track Busway Grid System
Expanded perimeter layout for larger production spaces.
