Track Busway Systems
A modular, plug-in overhead power distribution system designed for flexible power delivery in industrial and commercial spaces.

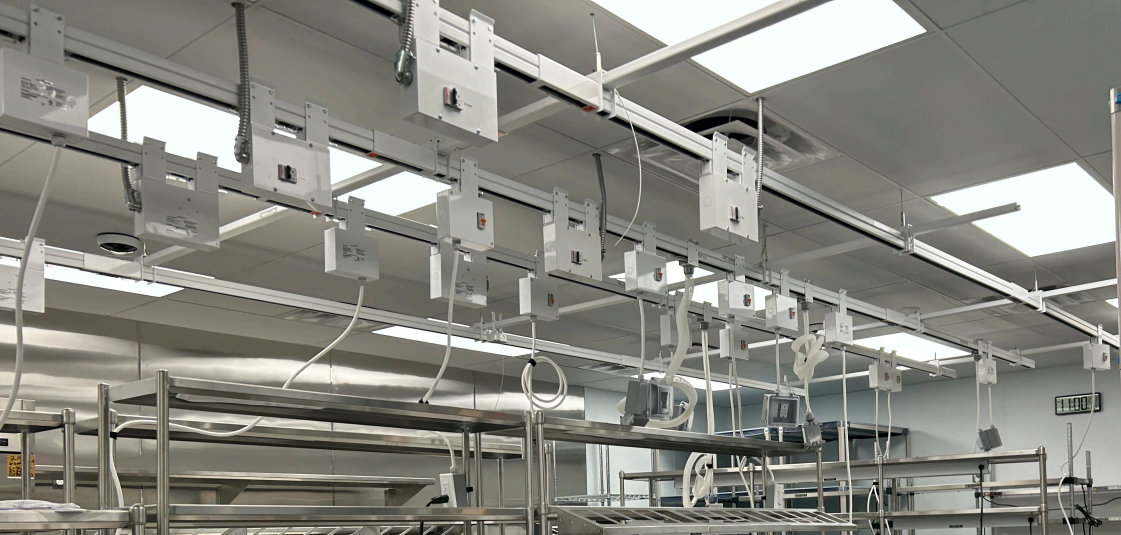

Flexible Power Drops
Effectively distribute power above your facility for easy modifications and expansions that require little-to-no downtime.

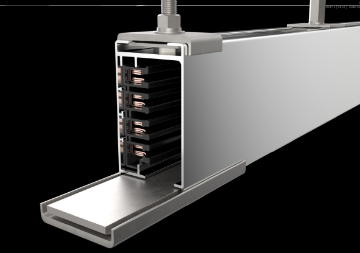

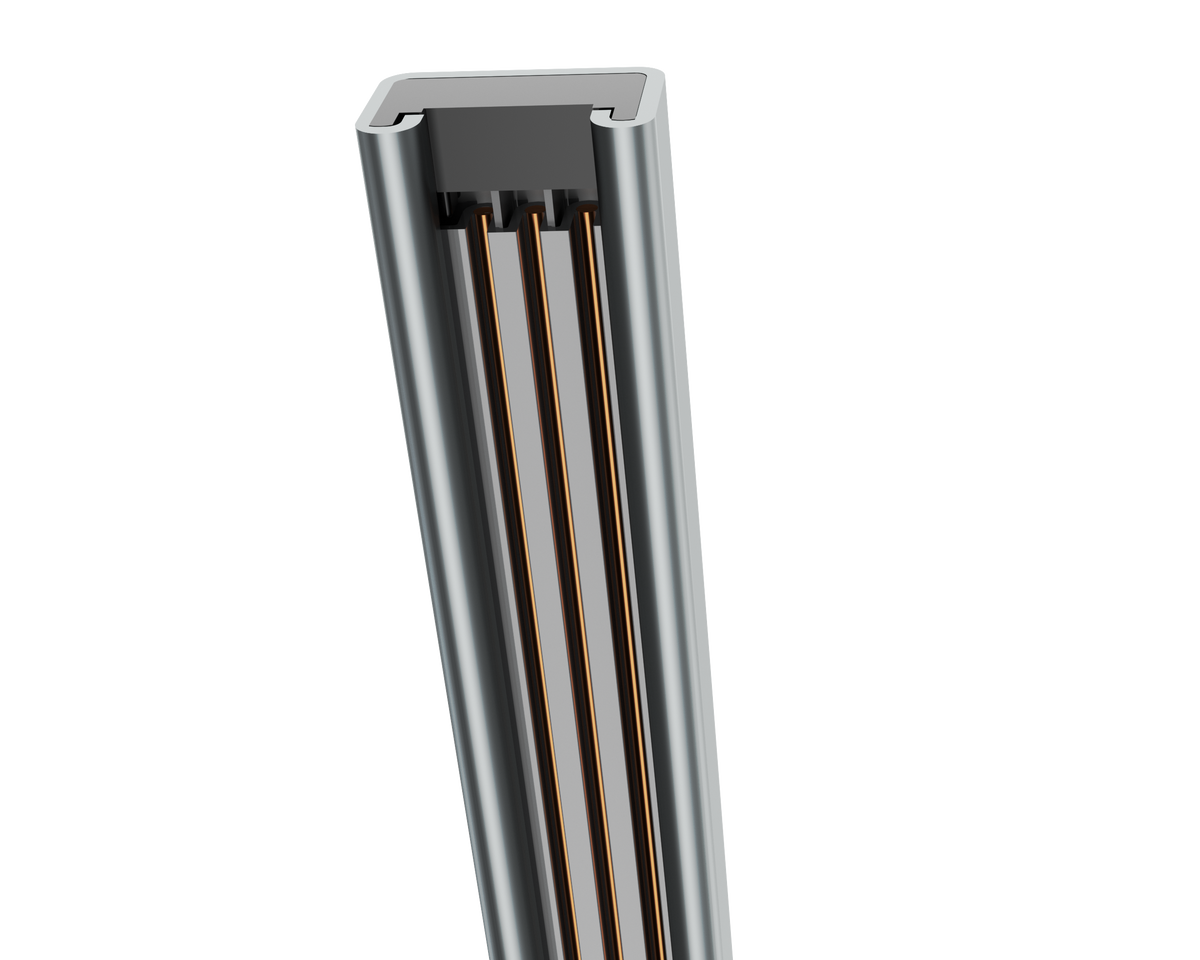

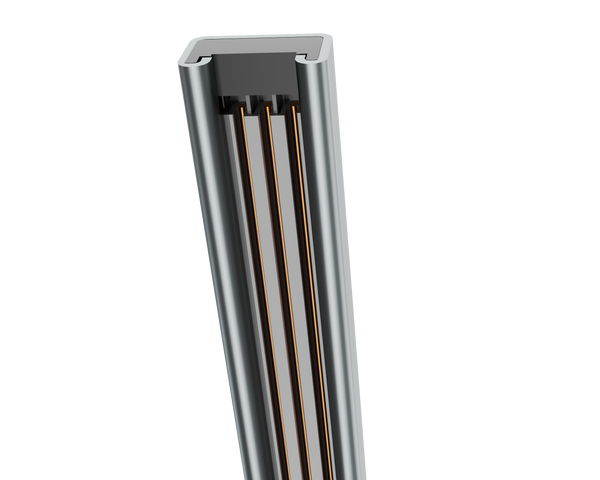

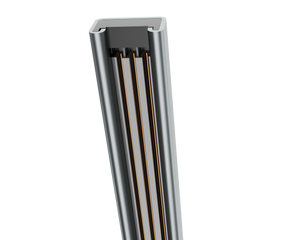

Power is distributed through insulated copper busbars housed inside the USA TrackBusway™, allowing plug-in access at any point along the run without cutting conduit or rewiring.
Accessible Overhead Power:
Unlike a traditional pipe-and-wire system, The Track Busway system includes a continuous access slot to tap power at any point along the Track Busway system.
This plug-in busway system supports powertaps at multiple voltages, with customizable plug-ends to fit a variety of configurations.
Scalable Overhead Power:
The Track Busway system can be thought of like a power highway, designed to efficiently get power all across a facility, while allowing for easy expansions.
View all Track Busway installation and system demonstration videos →
Track Busway enables continuous access to power along the entire run—so drops can be repositioned as layouts change.
Technical Resources & BIM Tools

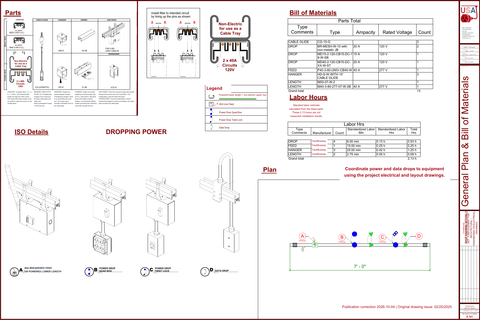

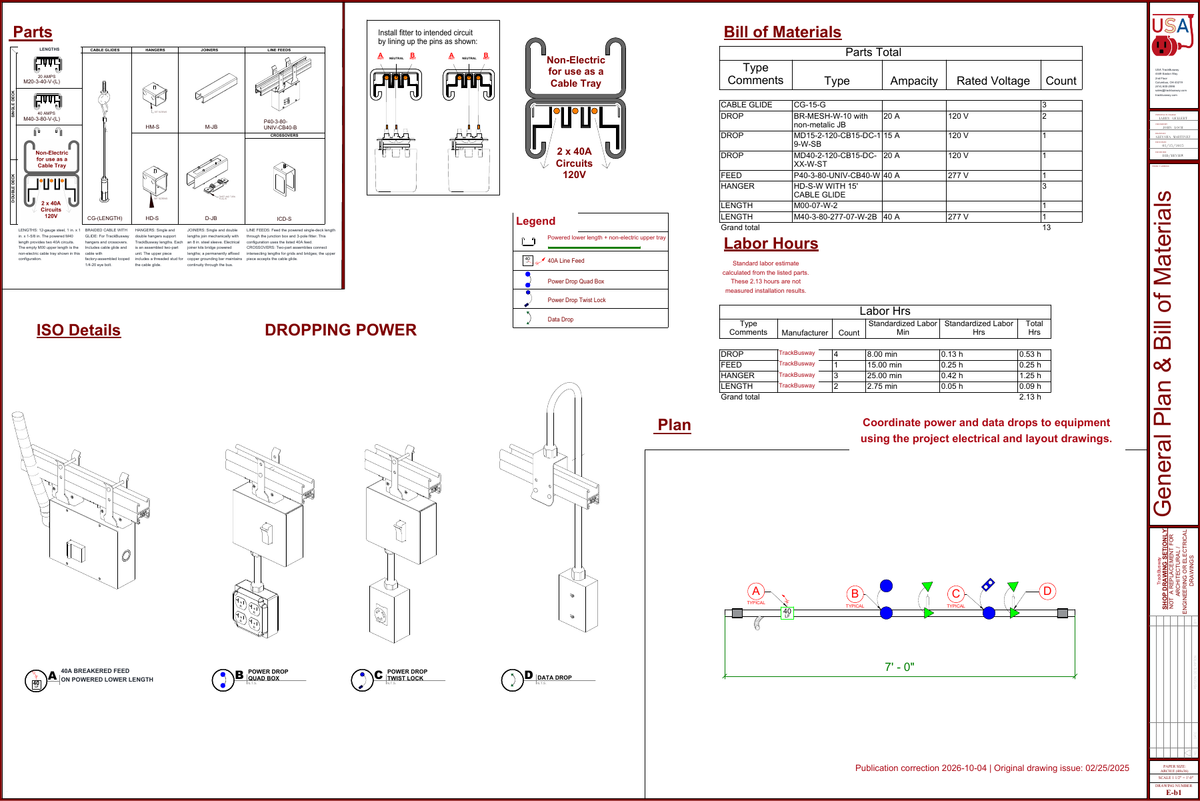

Access Revit families, cut sheets, installation drawings, and 3D models used by engineers and contractors to specify Track Busway systems.

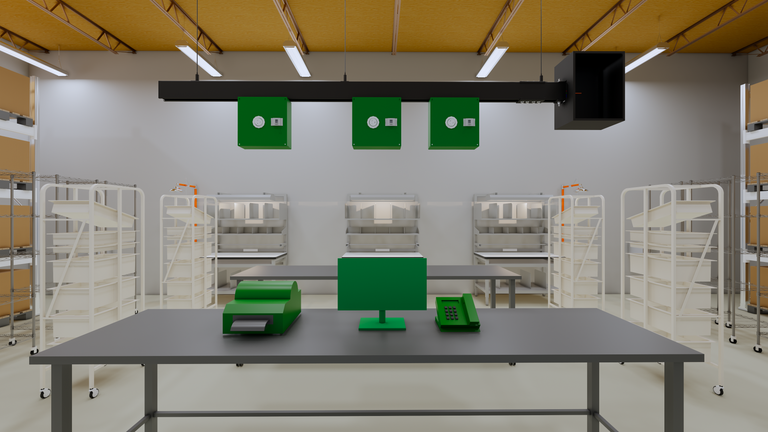

Supports 40A per phase (Steel) and 225A per phase (Aluminum) Track Busway systems.
Plug-in compact receptacle for 120-volt, 15-amp power anywhere along the run of track busway.

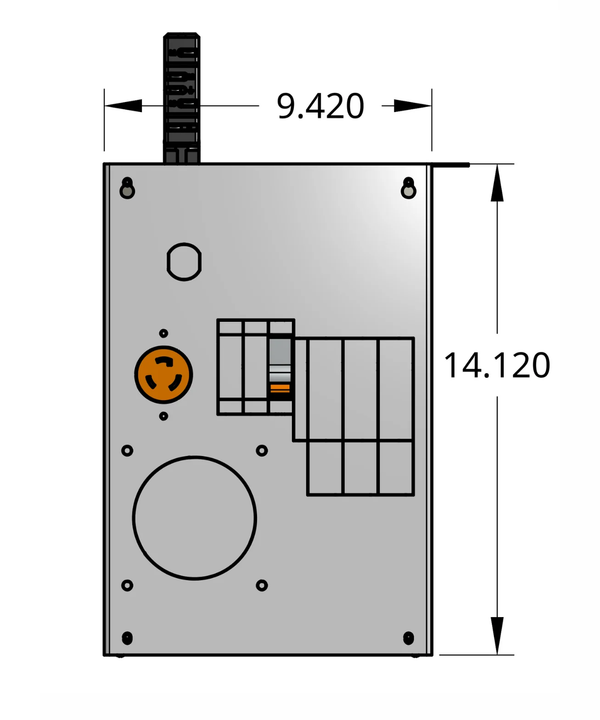

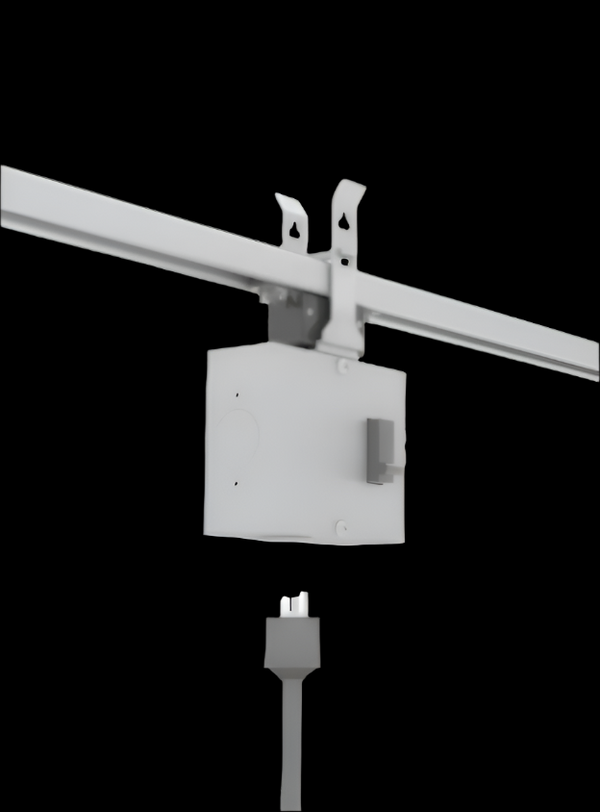

Single-pole breaker enclosure with receptacle delivers 120-volt of protected power from track busway to your equipment.

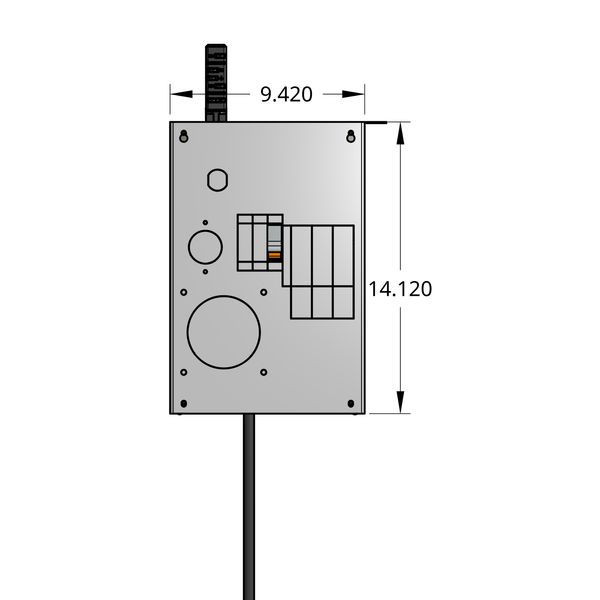

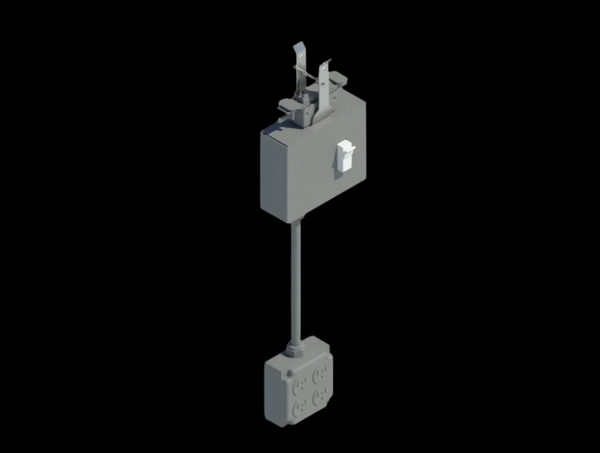

Single-pole corded tap-off supplies convenient 120-volt power from busway.
Outlet box taps Track Busway, delivering unprotected 208-volt single-phase power drop for overhead equipment.
Two-pole breaker enclosure with receptacle delivers 208-volt single-phase power from track busway to your equipment.
Two-pole cord drops 208-volt single-phase power from track busway to your equipment.
Outlet box taps Track Busway, delivering unprotected 240-volt power for overhead equipment.
Two-pole breaker with receptacle enclosure delivers 240-volt of protected power from track busway to your equipment.
Two-pole cord drops 240-volt power from track busway to your equipment.
Two-pole cord drops 208-volt single-phase power from track busway to your equipment.
Outlet box taps Track Busway, delivering unprotected 208-volt single-phase power drop for overhead equipment.
Two-pole breaker enclosure with receptacle delivers 208-volt single-phase power from track busway to your equipment.
Two-pole cord drops 240-volt power from track busway to your equipment.
Outlet box taps Track Busway, delivering unprotected 240-volt power for overhead equipment.
Two-pole breaker with receptacle enclosure delivers 240-volt of protected power from track busway to your equipment.
Three-pole drop cord provides balanced 208-volt three-phase supply for motors.
Spans between parallel busway runs to create continuous overhead support. Accepts lighting, power drops, and signage without adding extra hangers.
Mechanical CROSSOVERs for single-deck Track Busway runs. Enables precise L-, T-, and X-intersections while maintaining clean, modular mechanical alignment.
Mechanical CROSSOVERs allowing a double-deck Track Busway run to intersect a single-deck run. Preserves spacing and alignment in mixed-deck layouts.
Mechanical CROSSOVERs for intersecting double-deck Track Busway runs. Designed for dense grid layouts requiring consistent spacing and structural clarity.
Adjustable mechanical CROSSOVERs for non-90° Track Busway intersections. Supports variable angles while maintaining stable alignment and modular system geometry.
Flexible mesh sleeve guides data or control cables neatly from busway to workstations.
Secure steel bracket for mounting non-electrical devices directly to the busway. Ideal for sensors, signage, or canopy-mounted accessories.
Suspends devices below the busway using a threaded stem. Provides clearance while maintaining a rigid, tool-free connection.
Non-electrical enclosure for mounting sensors or controls on the busway. Installs horizontally without tapping conductors.
Direct-mount octagon box for canopy-style devices that don’t require electrical connections. Clean, secure overhead support.
Octagon box with a threaded stem for suspending devices below the busway. Ideal when fixtures need to drop lower.
Low-profile fitting for mechanically supporting signage or lightweight devices up to 20 lbs. Attaches without interfering with conductors.
Flexible mesh sleeve guides data or control cables neatly from busway to workstations.
Secure steel bracket for mounting non-electrical devices directly to the busway. Ideal for sensors, signage, or canopy-mounted accessories.
Suspends devices below the busway using a threaded stem. Provides clearance while maintaining a rigid, tool-free connection.
Non-electrical enclosure for mounting sensors or controls on the busway. Installs horizontally without tapping conductors.
Direct-mount octagon box for canopy-style devices that don’t require electrical connections. Clean, secure overhead support.
Octagon box with a threaded stem for suspending devices below the busway. Ideal when fixtures need to drop lower.
Low-profile fitting for mechanically supporting signage or lightweight devices up to 20 lbs. Attaches without interfering with conductors.
Single-pole corded tap-off supplies convenient 120-volt power from busway.
Two-pole cord drops 208-volt single-phase power from track busway to your equipment.
Two-pole cord drops 240-volt power from track busway to your equipment.
Three-pole drop cord provides balanced 208-volt three-phase supply for motors.

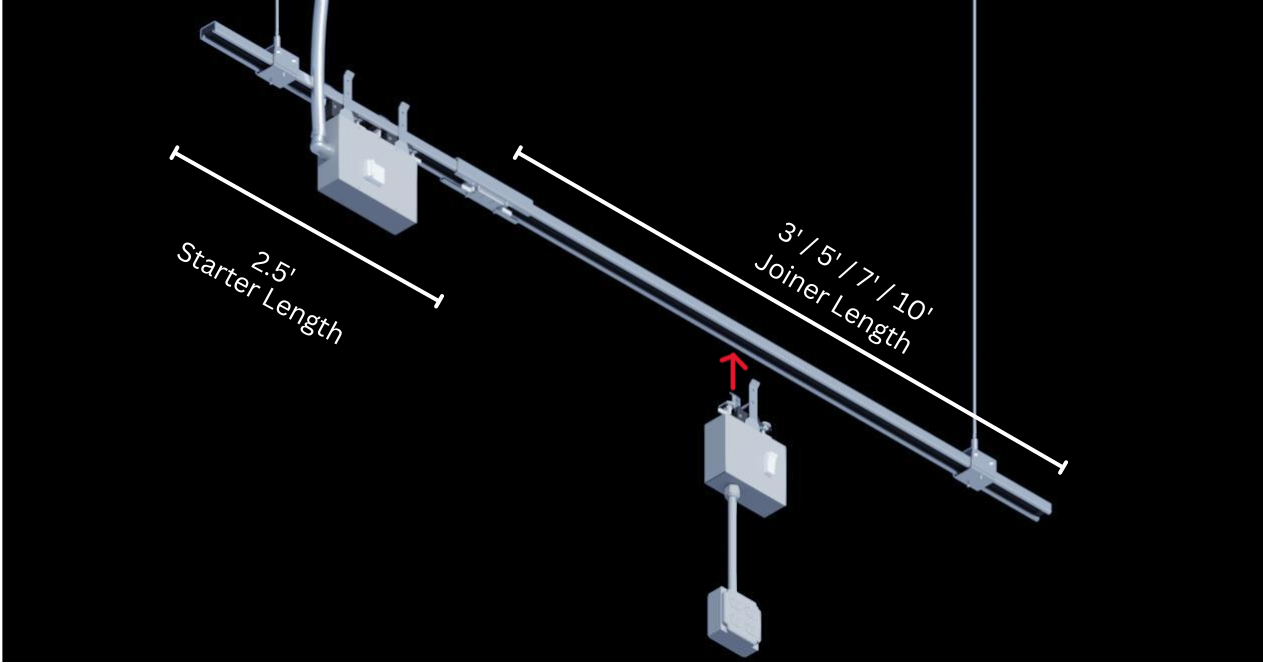

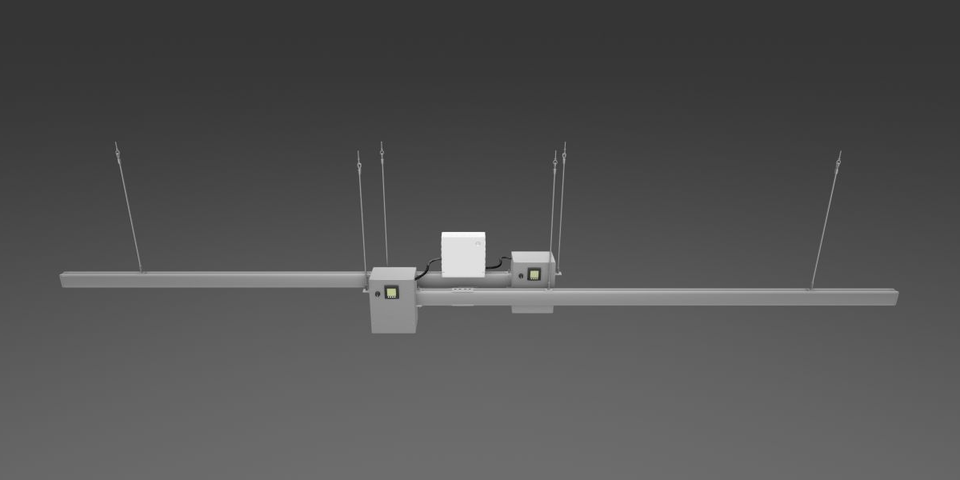

Starter feed energizes track busway at an endpoint, delivering two circuits with compact feed unit.
Plug-in un-protected feed unit anywhere along the track busway run to supply up to 2-circuits.
Plug-in feed unit with 2-pole breaker to supply 1-phase electrical service anywhere along the run of track busway.

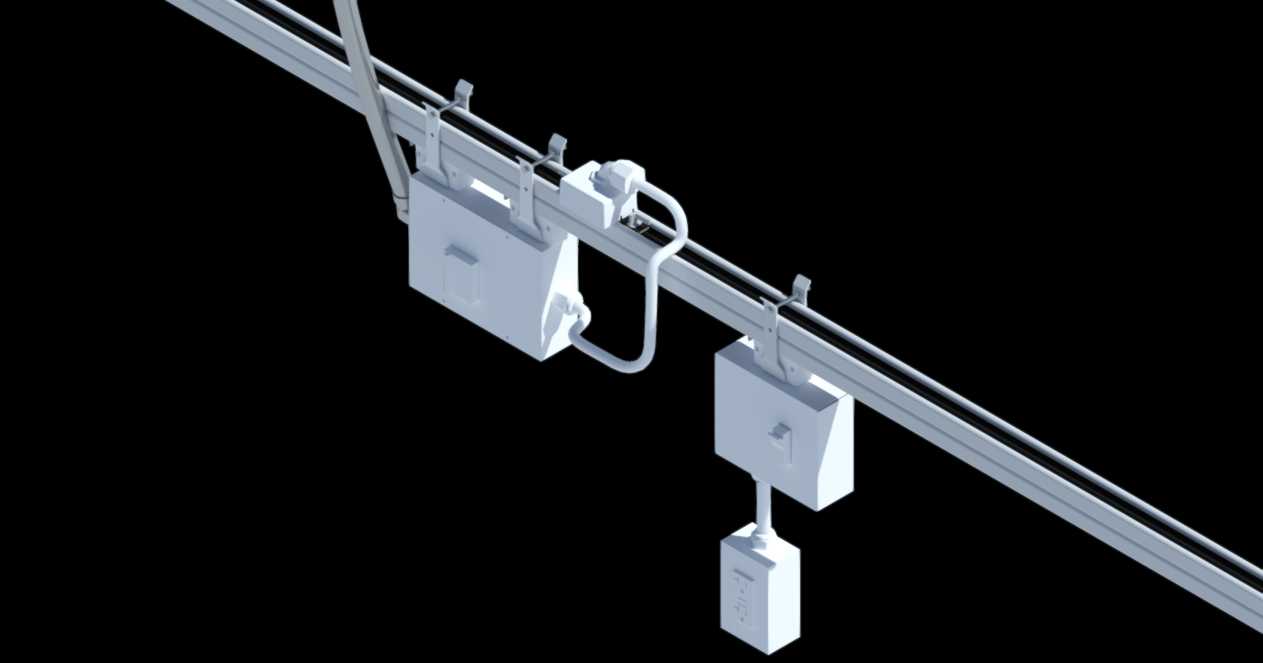

Plug-in feed with 3-pole breaker to supply 3-phase power anywhere along the run of track busway.

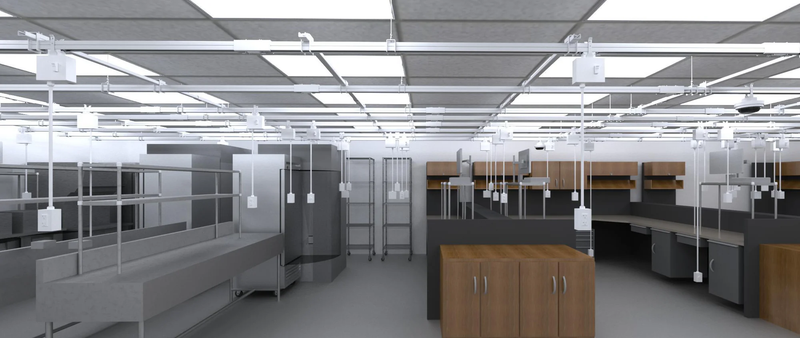

Expanded grid layout delivering dense overhead access for labs, makerspaces, and high-mix work cells.
Balanced grid layout providing flexible overhead access across workstations and shared equipment zones.
Compact grid layout for benches, carts, and light-duty work areas requiring frequent repositioning.
Steel hanger slides onto busway length for up to 10' between supports.

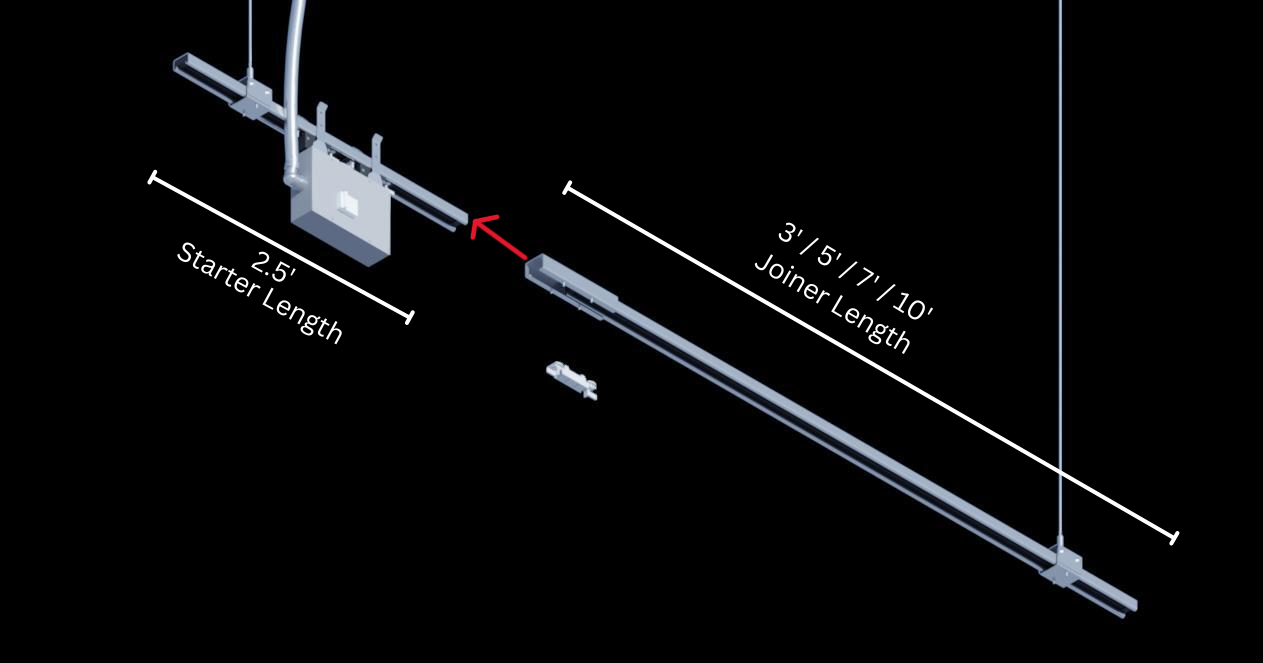

Mechanical joiner sleeve securely connects abutting track busway lengths, preserving structural integrity and alignment.

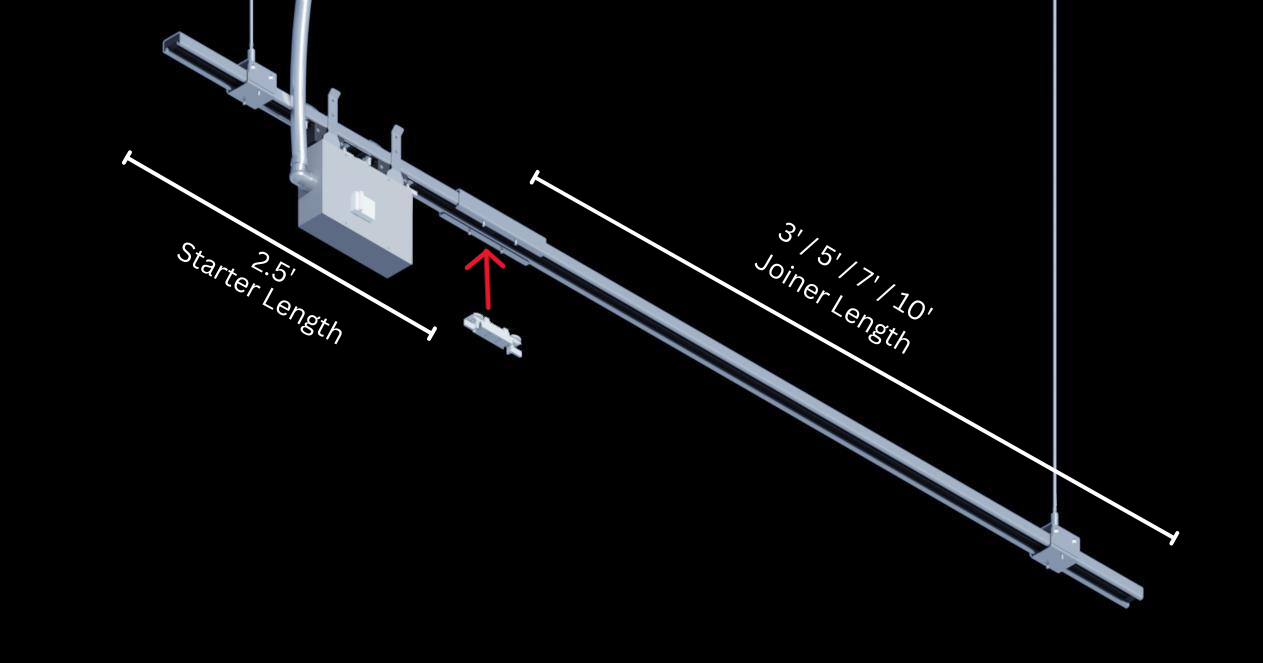

Joiner Inserts control power between abutting Track Busway lengths, enabling circuitry to continue or dead-end.
Slimline electrical JUMPERs that maintain 20A circuit continuity across Track Busway intersections without junction boxes or field wiring.
Flexible electrical JUMPERs cords that carry higher-amperage branch circuits across Track Busway intersections while preserving modular reconfiguration.
Expanded grid layout delivering dense overhead access for labs, makerspaces, and high-mix work cells.
Full-scale perimeter system delivering plug-in power, lighting, and data around expansive spaces.
Balanced grid layout providing flexible overhead access across workstations and shared equipment zones.
Perimeter layout designed for larger rooms, test areas, or grouped workstations.
Compact grid layout for benches, carts, and light-duty work areas requiring frequent repositioning.
Perimeter loop for compact rooms or workcells needing plug-in access on all sides.
Combines overhead power and a built-in tray for data and low-voltage cabling. Keeps power and data aligned in one suspended system.
Supplies 208-V or 480-V line-to-line power for industrial equipment. Retains open-slot flexibility for movable plug-in drops.
Stacks two busway levels to provide up to four 20-A circuits in one run. Ideal for high-density layouts that need scalable power.
Delivers up to two 20-A circuits of 120-V power along a straight overhead run. Pre-wired and tool-free for flexible plug-in drops.
Spans between parallel busway runs to create continuous overhead support. Accepts lighting, power drops, and signage without adding extra hangers.
Single-pole breaker enclosure with receptacle delivers 120-volt of protected power from track busway to your equipment.
Two-pole breaker enclosure with receptacle delivers 208-volt single-phase power from track busway to your equipment.
Two-pole breaker with receptacle enclosure delivers 240-volt of protected power from track busway to your equipment.
Outlet box taps Track Busway, delivering unprotected 240-volt power for overhead equipment.
Outlet box taps Track Busway, delivering unprotected 208-volt single-phase power drop for overhead equipment.
Plug-in compact receptacle for 120-volt, 15-amp power anywhere along the run of track busway.
Plug-in compact receptacle for 120-volt, 15-amp power anywhere along the run of track busway.
Single-pole breaker enclosure with receptacle delivers 120-volt of protected power from track busway to your equipment.
Single-pole corded tap-off supplies convenient 120-volt power from busway.
Outlet box taps Track Busway, delivering unprotected 208-volt single-phase power drop for overhead equipment.
Two-pole breaker enclosure with receptacle delivers 208-volt single-phase power from track busway to your equipment.
Two-pole cord drops 208-volt single-phase power from track busway to your equipment.
Three-pole drop cord provides balanced 208-volt three-phase supply for motors.
Outlet box taps Track Busway, delivering unprotected 240-volt power for overhead equipment.
Two-pole cord drops 240-volt power from track busway to your equipment.
Two-pole breaker with receptacle enclosure delivers 240-volt of protected power from track busway to your equipment.
Full-scale perimeter system delivering plug-in power, lighting, and data around expansive spaces.
Perimeter layout designed for larger rooms, test areas, or grouped workstations.
Perimeter loop for compact rooms or workcells needing plug-in access on all sides.
Stacks two busway levels to provide up to four 20-A circuits in one run. Ideal for high-density layouts that need scalable power.
Supplies 208-V or 480-V line-to-line power for industrial equipment. Retains open-slot flexibility for movable plug-in drops.
Delivers up to two 20-A circuits of 120-V power along a straight overhead run. Pre-wired and tool-free for flexible plug-in drops.
Combines overhead power and a built-in tray for data and low-voltage cabling. Keeps power and data aligned in one suspended system.
Busway length with continuous open slot for plug-in power and/or lighting units.
Three-phase busway length offers continuous access slot for plug-in units, distributing 208/480-volt power.
Mechanical joiner sleeve securely connects abutting track busway lengths, preserving structural integrity and alignment.
Joiner Inserts control power between abutting Track Busway lengths, enabling circuitry to continue or dead-end.
Steel hanger slides onto busway length for up to 10' between supports.
Suspension cable kit with glide and eye-bolt for secure, height-adjustable support.
Cable pass-through grommet neatly routes support cables through ACT ceiling tiles, preserving clean finished aesthetics.
Field-cuttable closure strip covers track busway open slot, improving aesthetics and debris protection.
Delivers up to two 20-A circuits of 120-V power along a straight overhead run. Pre-wired and tool-free for flexible plug-in drops.
Busway length with continuous open slot for plug-in power and/or lighting units.
Steel hanger slides onto busway length for up to 10' between supports.
Cable pass-through grommet neatly routes support cables through ACT ceiling tiles, preserving clean finished aesthetics.
Suspension cable kit with glide and eye-bolt for secure, height-adjustable support.
Joiner Inserts control power between abutting Track Busway lengths, enabling circuitry to continue or dead-end.
Mechanical joiner sleeve securely connects abutting track busway lengths, preserving structural integrity and alignment.
Field-cuttable closure strip covers track busway open slot, improving aesthetics and debris protection.
Three-phase busway length offers continuous access slot for plug-in units, distributing 208/480-volt power.
Plug-In Busway up to 600V
Pole count refers to the internal breaker configuration of the plug-in unit; the Track Busway provides a full conductor set including neutral.

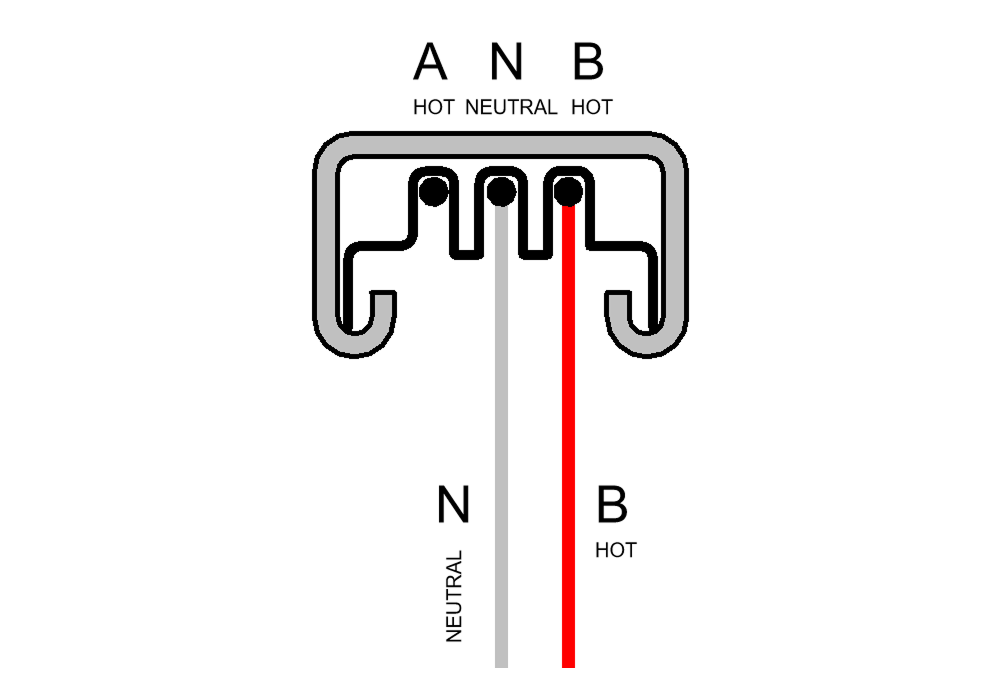

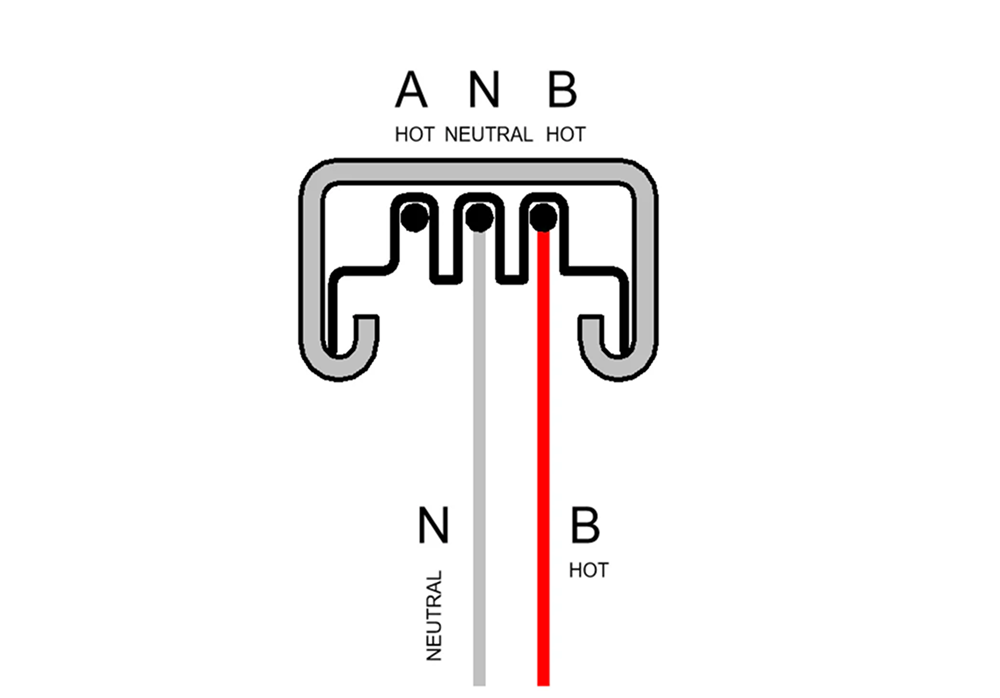

1-Pole tap-offs connect one hot and the neutral to deliver 120V (line-to-neutral)

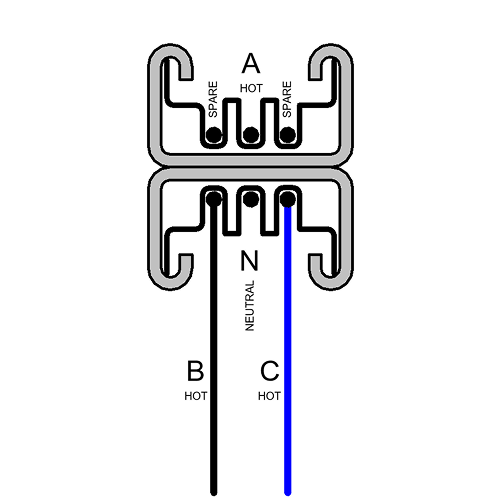

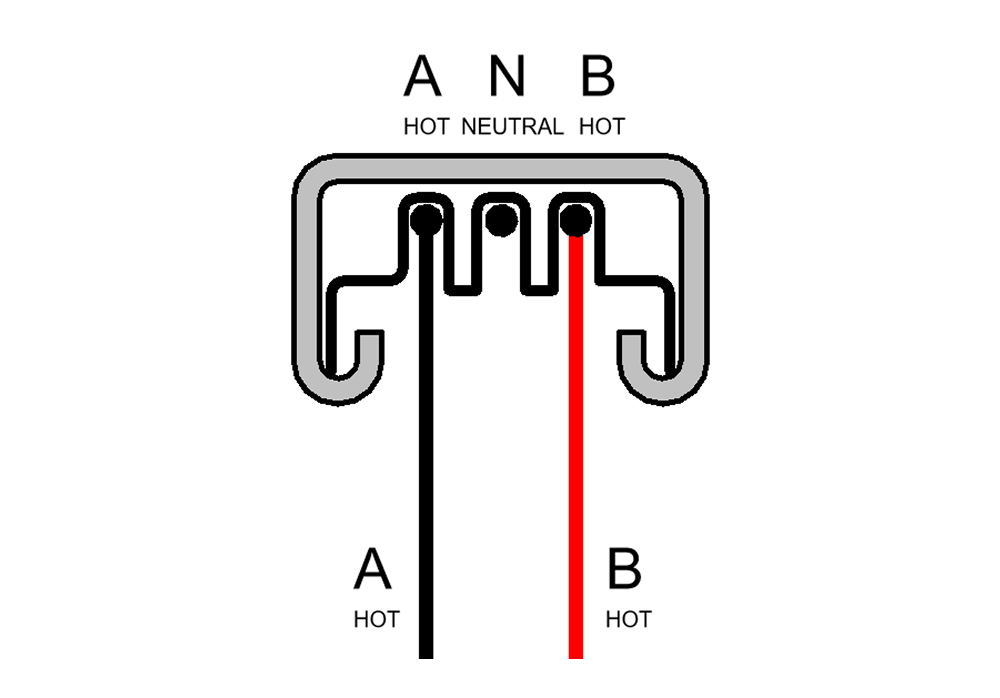

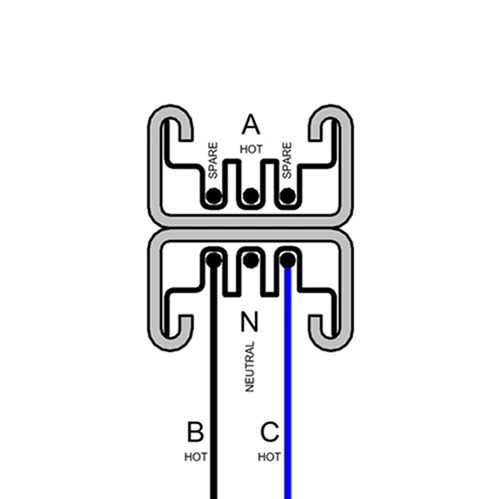

2-Pole tap-offs connect two hots (no neutral) to deliver 208V single-phase or 240V (line-to-line)

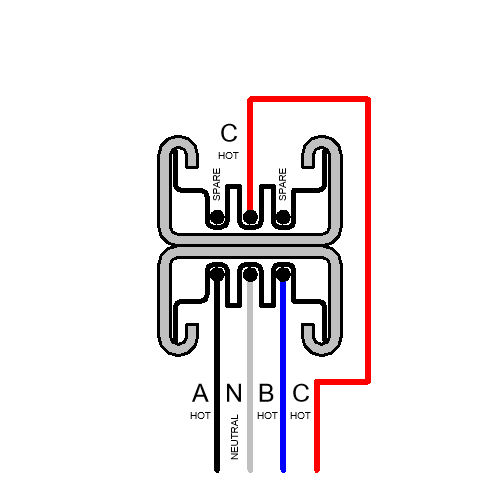

3-Pole tap-offs engage all three hots and the neutral to support 208V or 480V three-phase, four-wire configurations
For example, a 3-pole plug-in may be installed on a four-conductor (3-phase, L-L-L-N) Track Busway to serve three-phase loads with a neutral present.

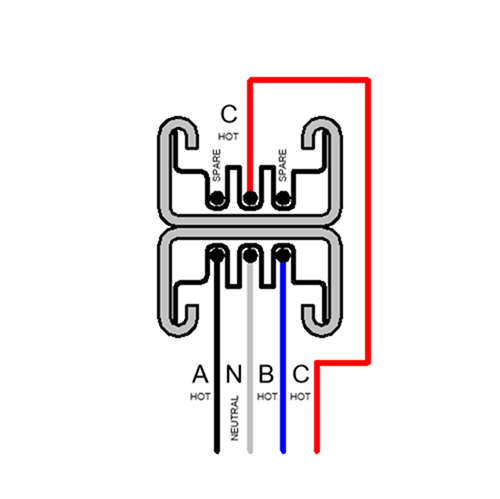

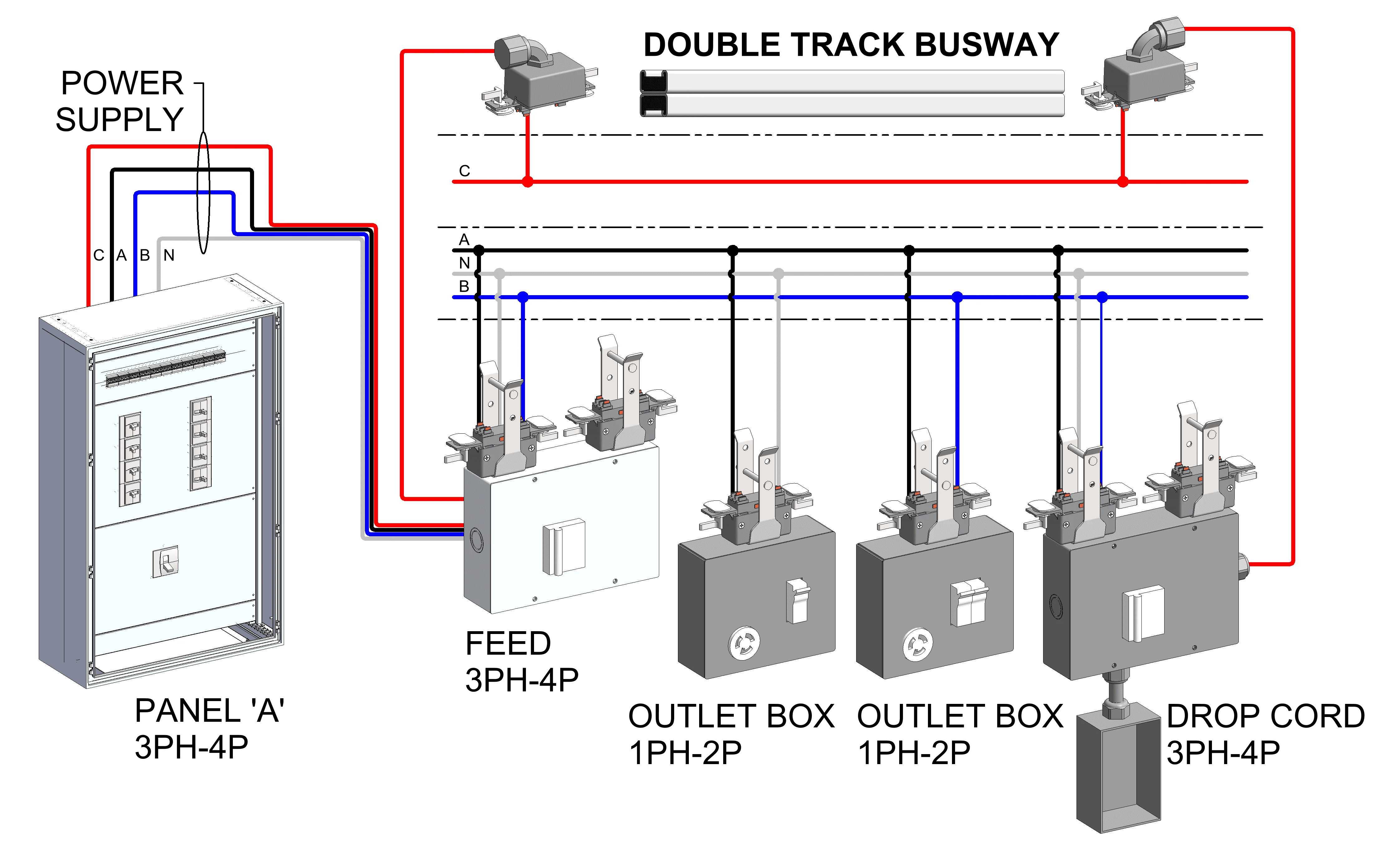

Three-Phase Tap-Off Wiring Diagram
Compatible with 120 V, 208 V, or 480 V Power
Supports three-phase, four-wire configurations with line-to-line voltages up to 480 V.

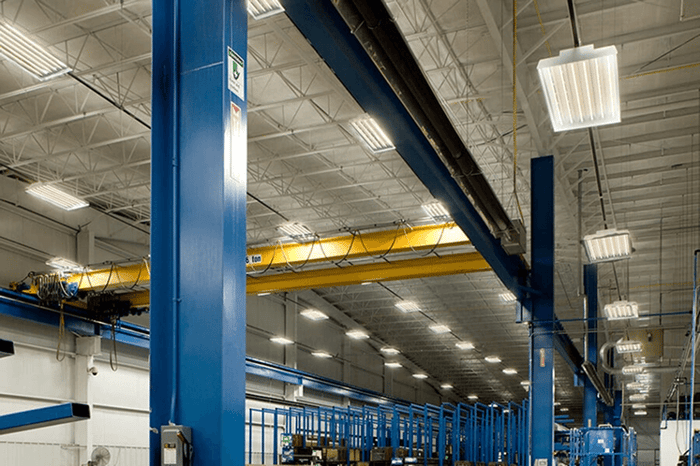

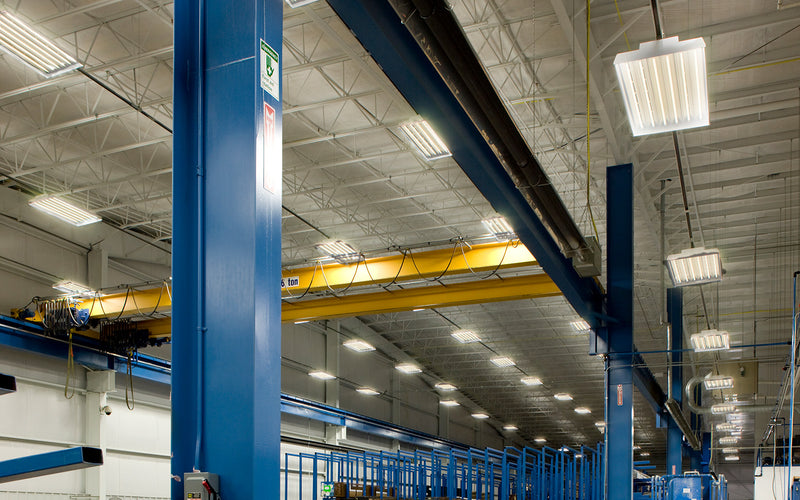

Ideal for powering equipment in warehouses, assembly lines, and production areas.
Plug-in tap-offs can be repositioned without re-wiring or permitting.
Optional isolated-ground tap-offs available for sensitive loads.
Track Busway Insights
Explore foundational knowledge on USA TrackBusway™— including system fundamentals, comparisons against traditional busway products, and an overview of how plug-in overhead power works.
Busway Fundamentals
Learn the core principles behind plug-in busway systems, how overhead power is distributed, and why Track Busway offers a more flexible alternative to conduit.
Track Busway Comparison – Plug-In Busway Systems
See how USA TrackBusway™ compares to traditional aluminum busway products, including key differences in cost, lead time, flexibility, and installation time.
What Is a Track Busway?
A clear introduction to what Track Busway is, why it exists, and how plug-in overhead power can be installed and reconfigured without tools or downtime.
Featured Videos
Track Busway System | Flexible Overhead Power for Open Ceilings
See how Track Busway’s continuous access slot enables precise placement of plug‑in PowerDrops and lighting exactly where power is needed. This video demonstrates pre‑wired power drops, modular fittings, and how drops can be repositioned without tools or downtime as workspaces change.
View all Track Busway installation, power, and lighting videos in our Video Library →
Applications
Industrial
Manufacturing
Logistics Warehouse
Research Facilities

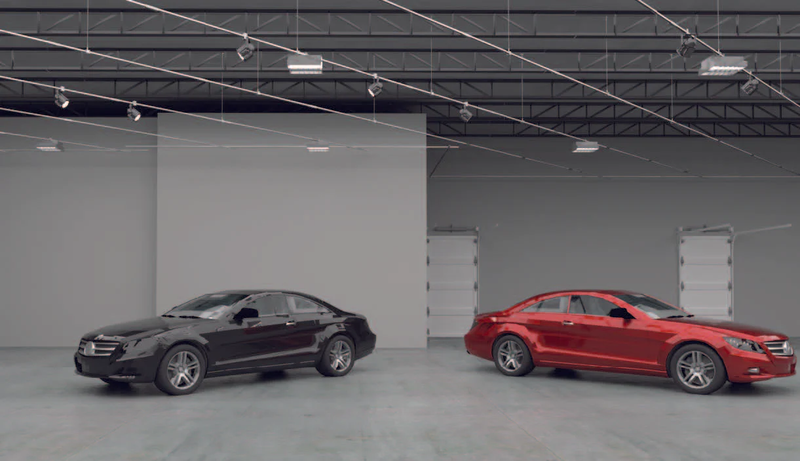

AUTOMOTIVE
