225A Track Busway End Cap
USA TrackBusway
SKU: Catalogue # (SKU): T225-EC-G

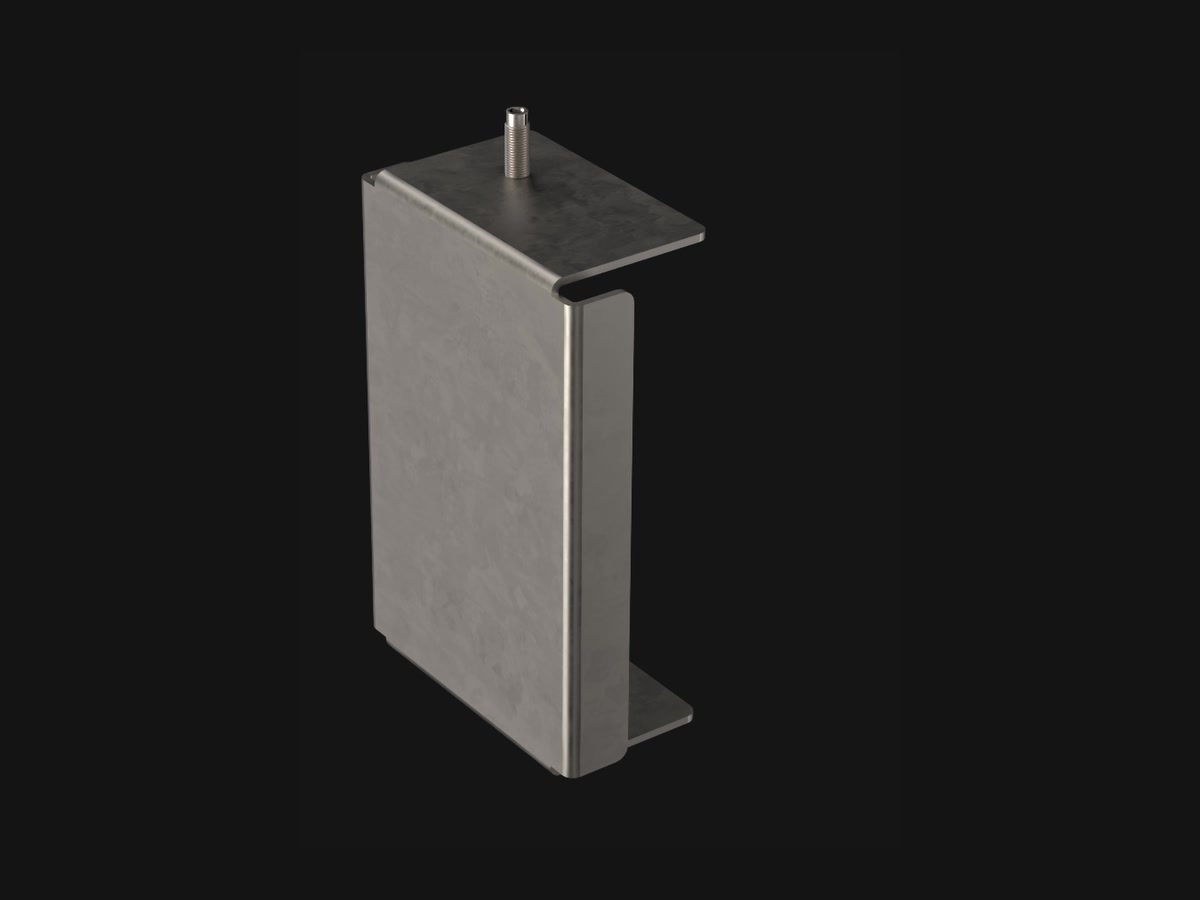

The T225-EC-G end cap closes the open end of a USA TrackBusway T225 busway run. Use it at a termination where a power feed or adjoining busway length is not installed. End caps are sold individually, so select the quantity to match the open run ends shown on the project layout.
Component of the ETL Listed T225 System
For use in the listed T225 system evaluated to UL 857 and CSA C22.2 No. 27.
Intertek Control No. 5011082
Report No. 106508638CRT-001
How to Choose
Count the open ends in the approved busway layout and order one T225-EC-G for each required termination. Confirm that each location is an open run end, rather than a connection to another length or a feed.
Couldn't load pickup availability
Technical Downloads
T225 End-Cap Installation
See the end cap positioned and secured at an open busway end.
End-Cap Placement and Installation
Identify each busway termination when preparing the bill of materials. An end cap is used where the housing remains open at the end of the planned run; locations occupied by a feed or adjoining section require their corresponding components.

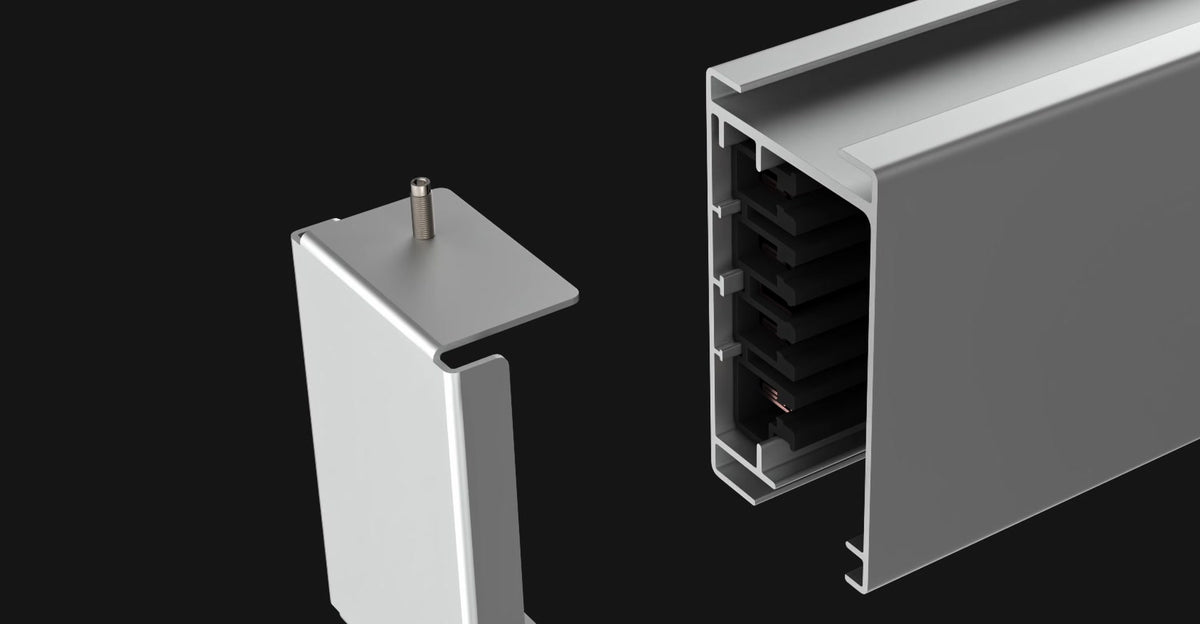

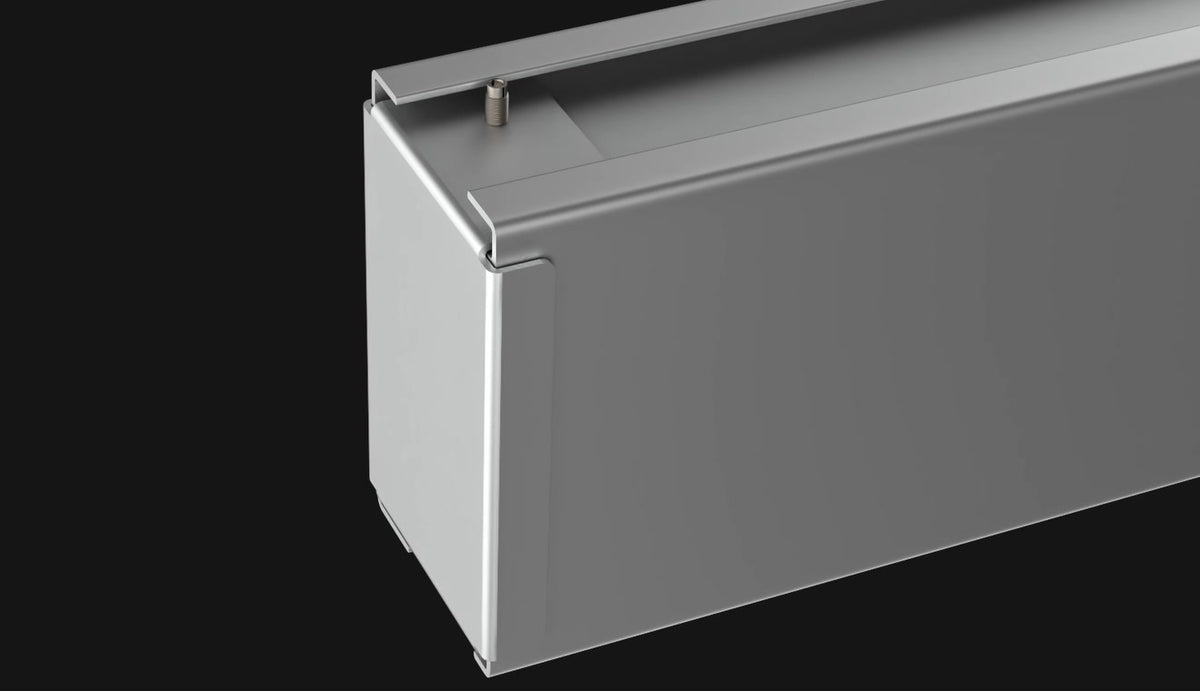

The installation images show the cap positioned over the busway housing and secured at the top. Use the accompanying clip to understand the placement, then follow the current 225A installation manual and approved drawings for the final assembly.
This product is the T225-EC-G end cap only. Coordinate it with the busway lengths, feeds, joiners, hangers, and tap-off units required for the complete project.
